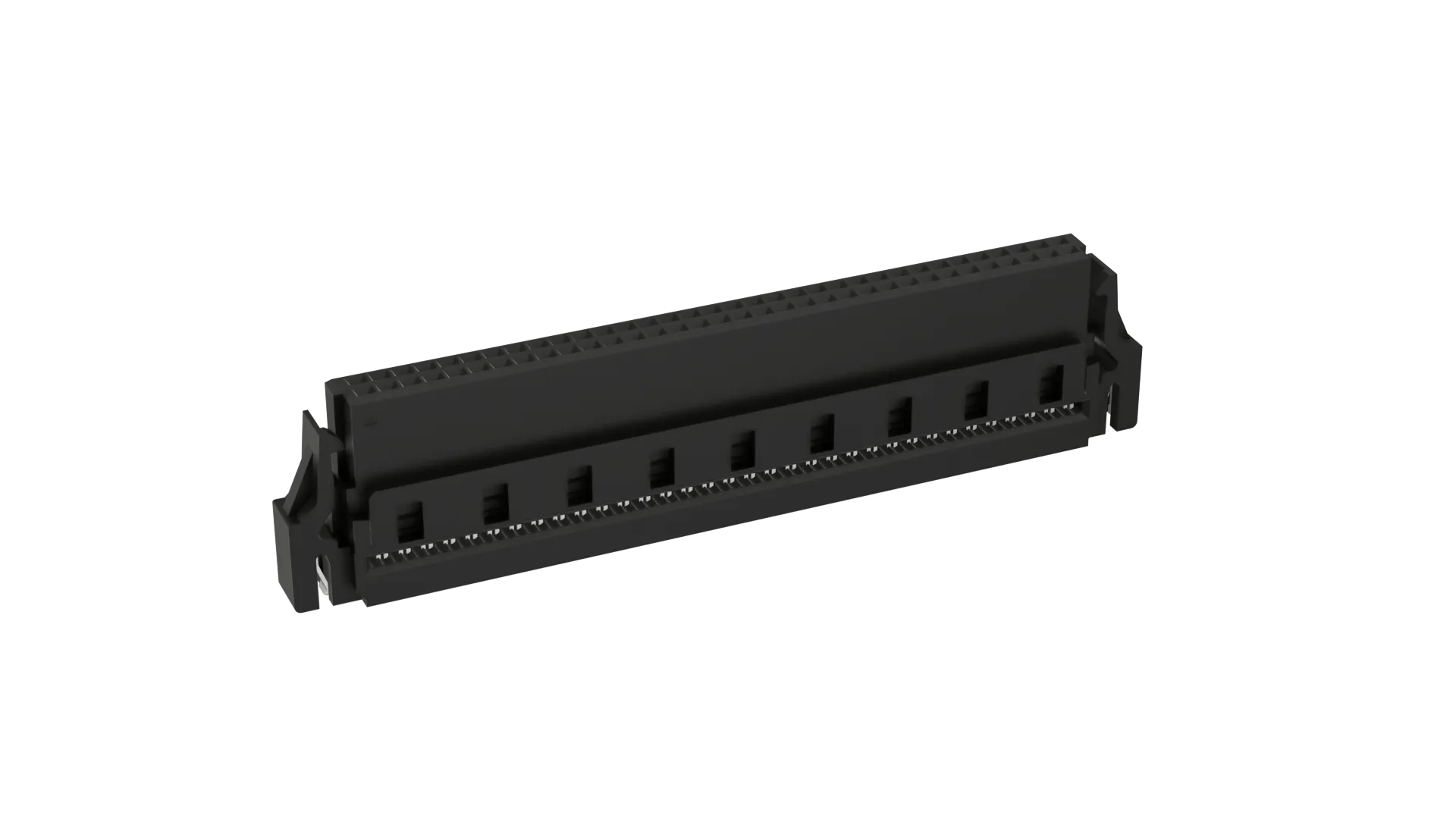

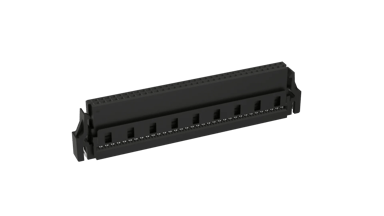

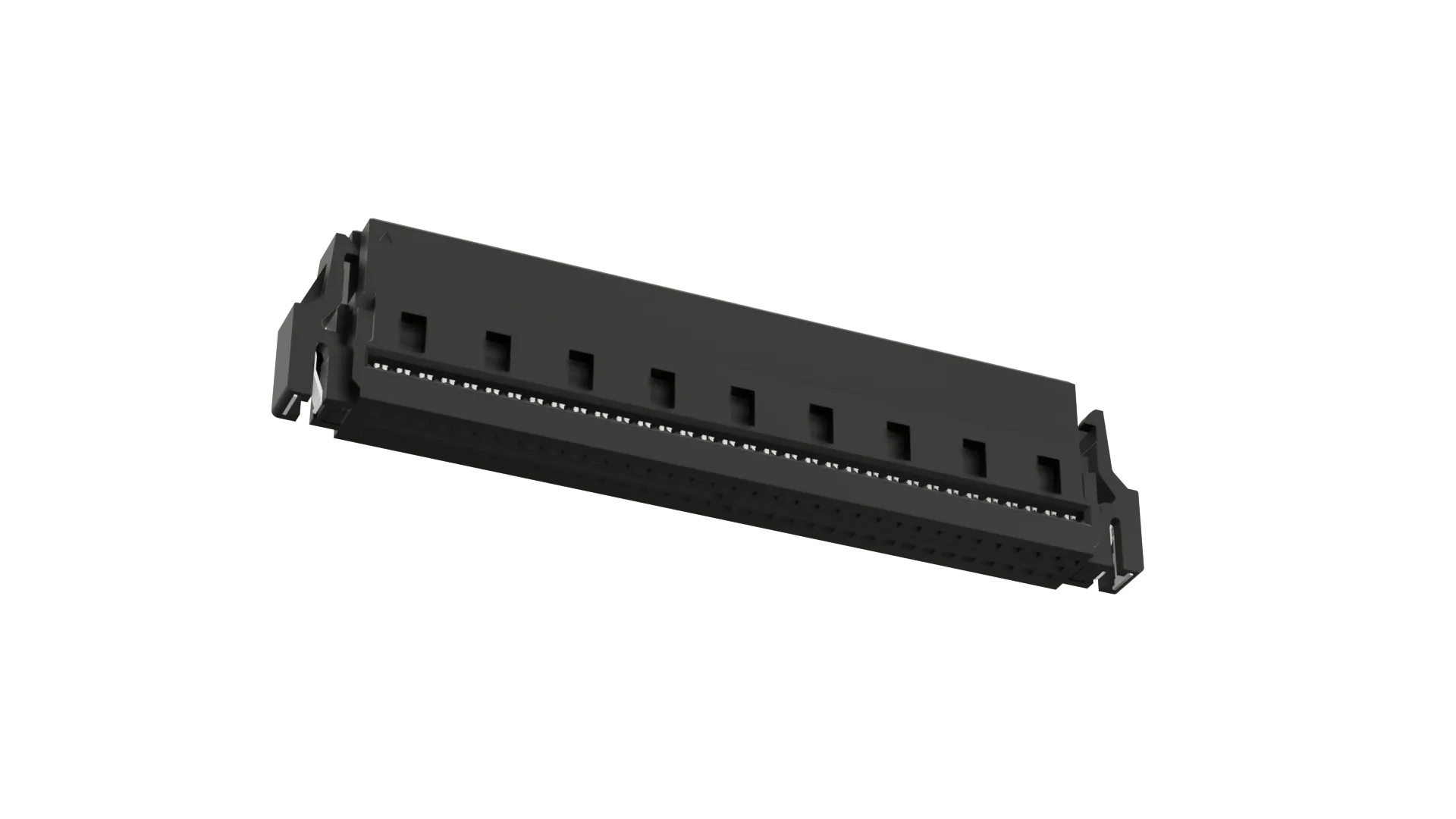

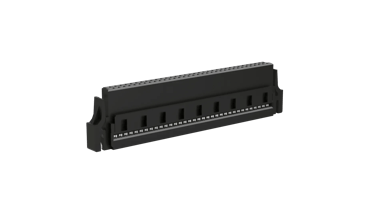

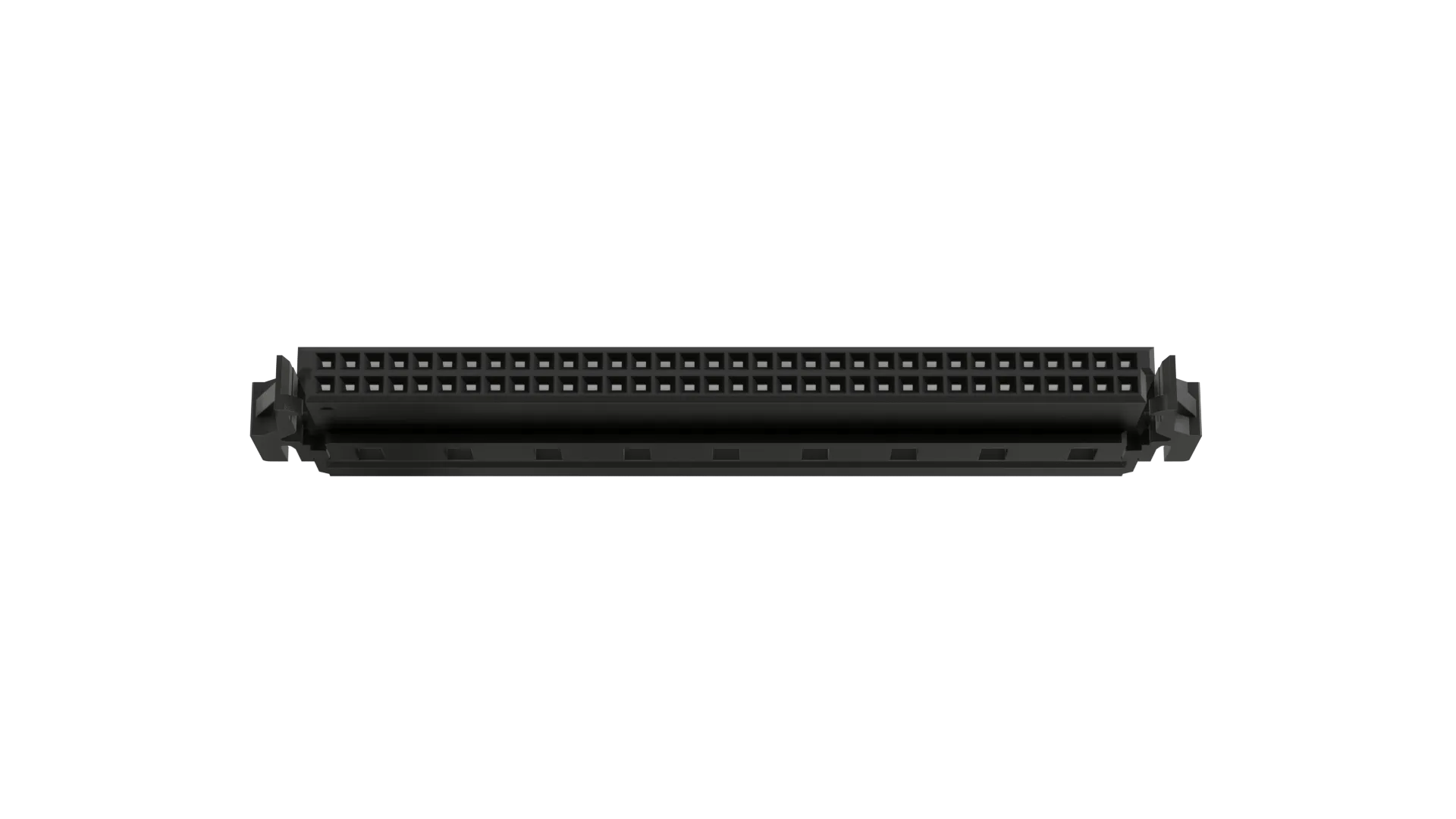

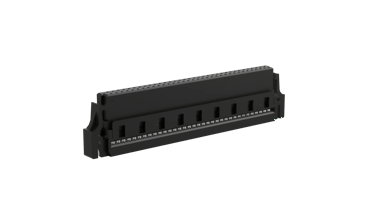

34+34 Pos. Female DIL IDC Cable Connector
1.27mm (0.05") Pitch PCB Connector - Archer Kontrol
- Double row female connector with IDC cable connection – 68 contacts (34+34). Latching features, polarized and shrouded. Gold finish on contact area, Tin finish on termination.
- Suitable for 30 AWG ribbon cable, 0.635mm pitch, UL2678.
- For complete pin numbering or pin out information, see Component Specification C047XX.
EU RoHS Status:
Cable (Ribbon IDC)
Cable Conductor Size:
0.5A max per contact
-20°C to +105°C
Style of Latches:
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Base Material of Contact:
LCP (PA66 Latch Cover)
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
51.60 x 4.70 x 14.10
Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.
* Please request minimum quantities, lead times and pricing from an authorized distributor.
