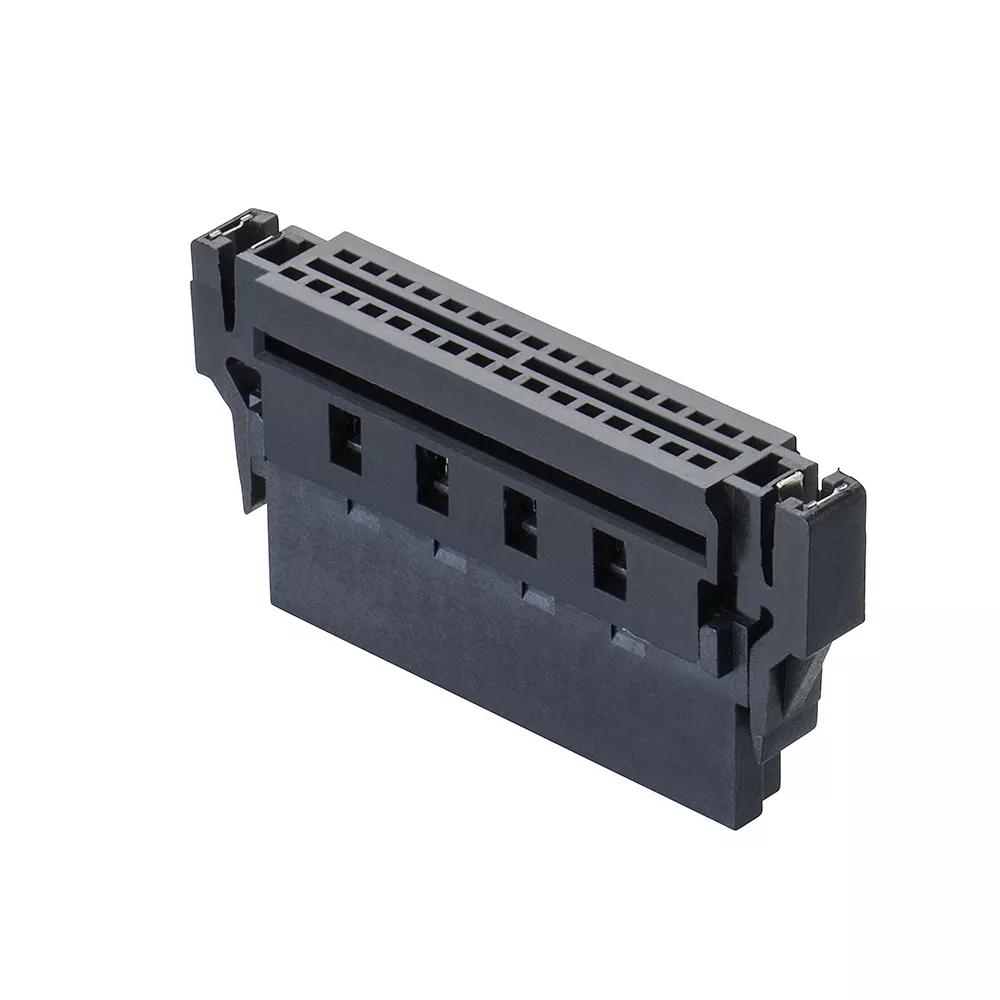

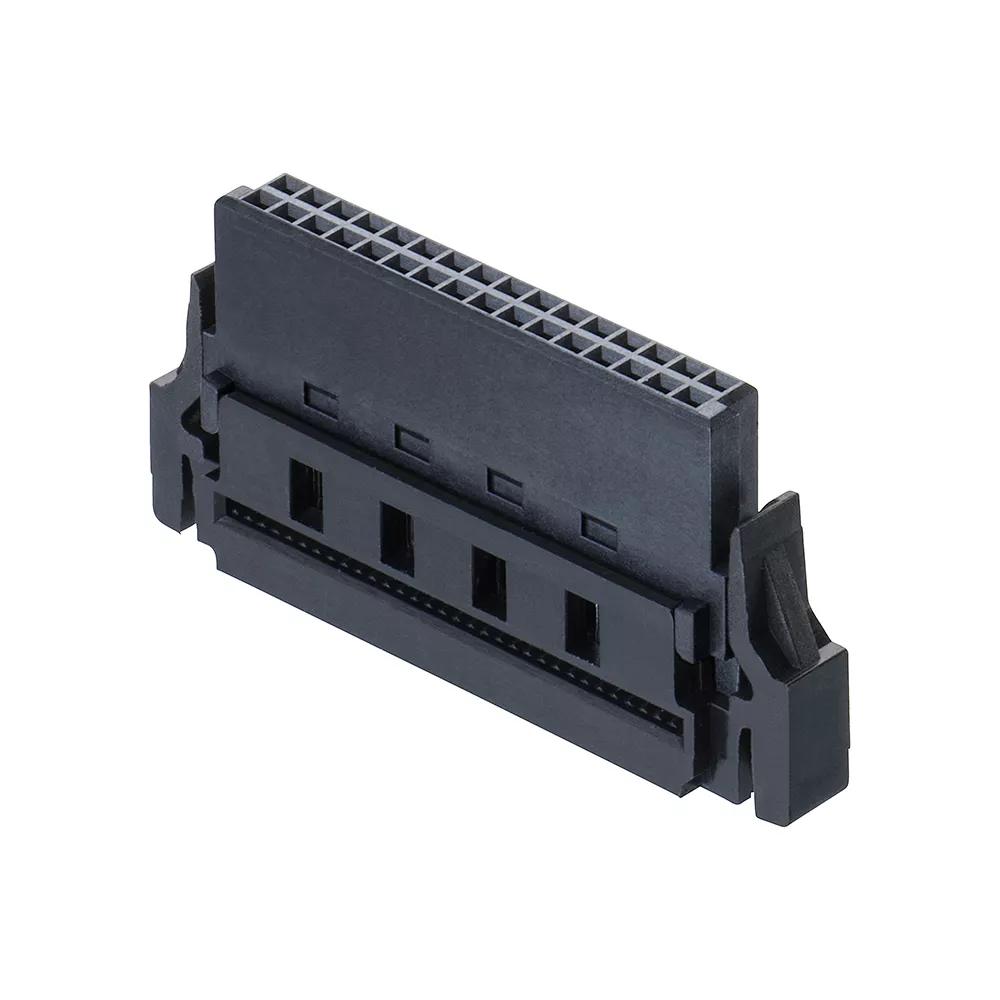

16+16 Pos. Female DIL IDC Cable Connector

1.27mm (0.05") Pitch PCB Connector - Kontrol

Add to Favorites

Loading…   Check availability

6 similar products View products

Traceparts account required

Product Description

  • Double row female connector with IDC cable connection – 32 contacts (16+16). Latching features, polarized and shrouded. Gold finish on contact area, Tin finish on termination.
  • Suitable for 30 AWG ribbon cable, 0.635mm pitch, UL2678.
  • For complete pin numbering or pin out information, see Component Specification C047XX.

Technical Details

Specification

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Angled

Connection Type:

Cable (Ribbon IDC)

Cable Conductor Size:

30 AWG

Current Rating:

0.5A max per contact

Operating Temperature:

-20°C to +105°C

Style of Latches:

Built-in Latches

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

32

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

LCP (PA66 Latch Cover)

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tray

Dimensions

Individual Part Weight:

1.85g

Overall Dimensions (L x W x D) in mm:

28.70 x 4.70 x 14.10
