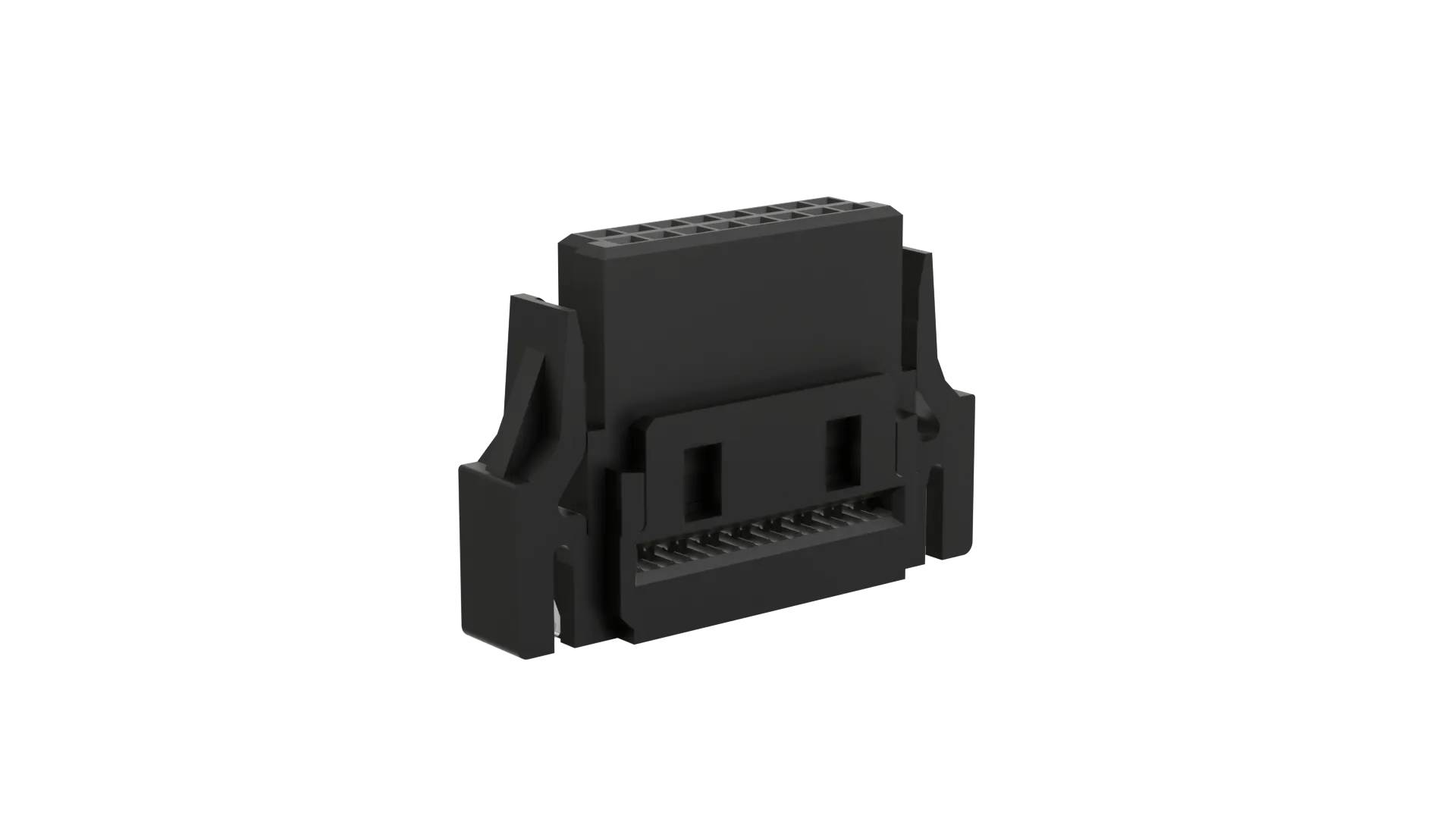

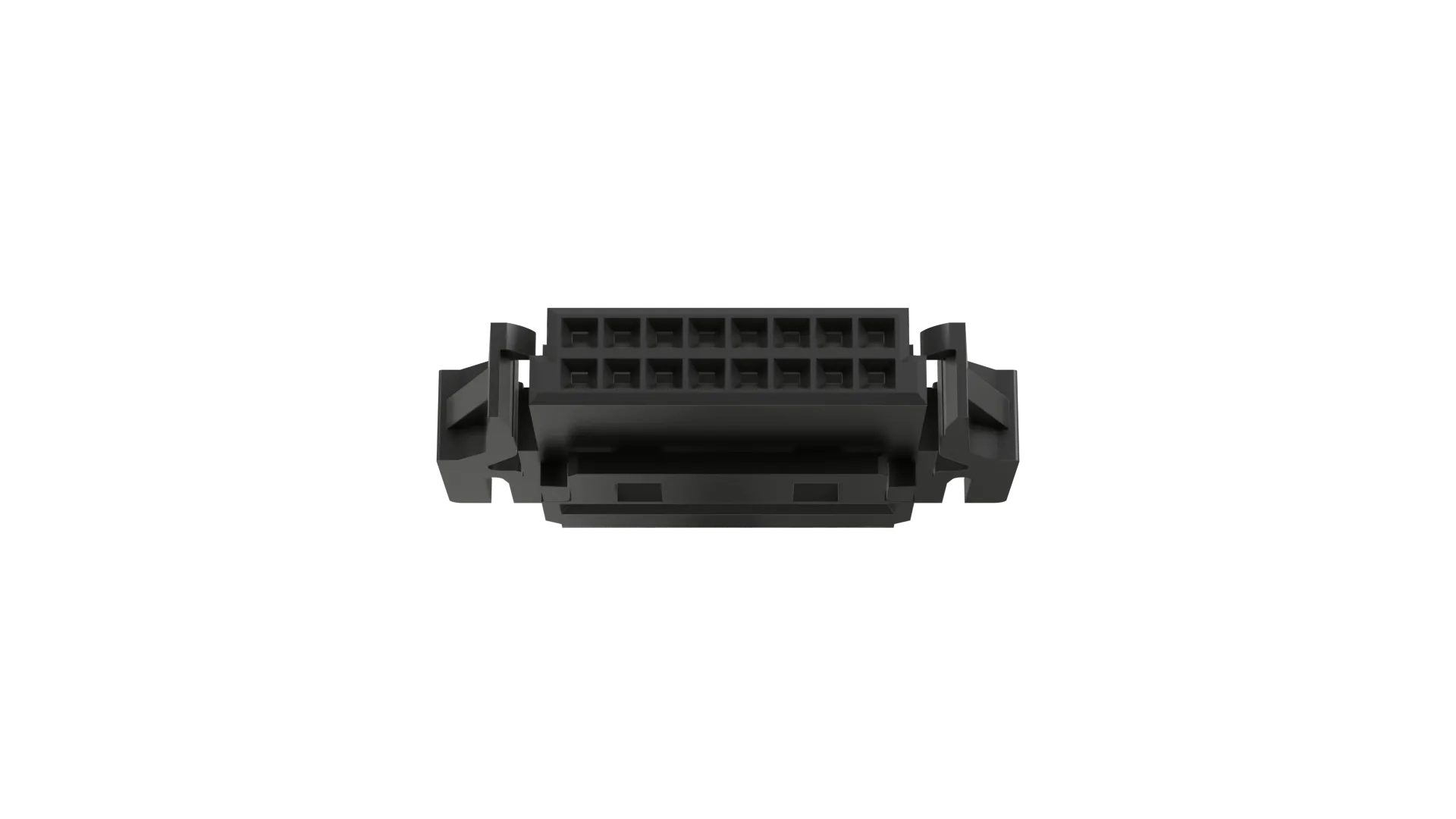

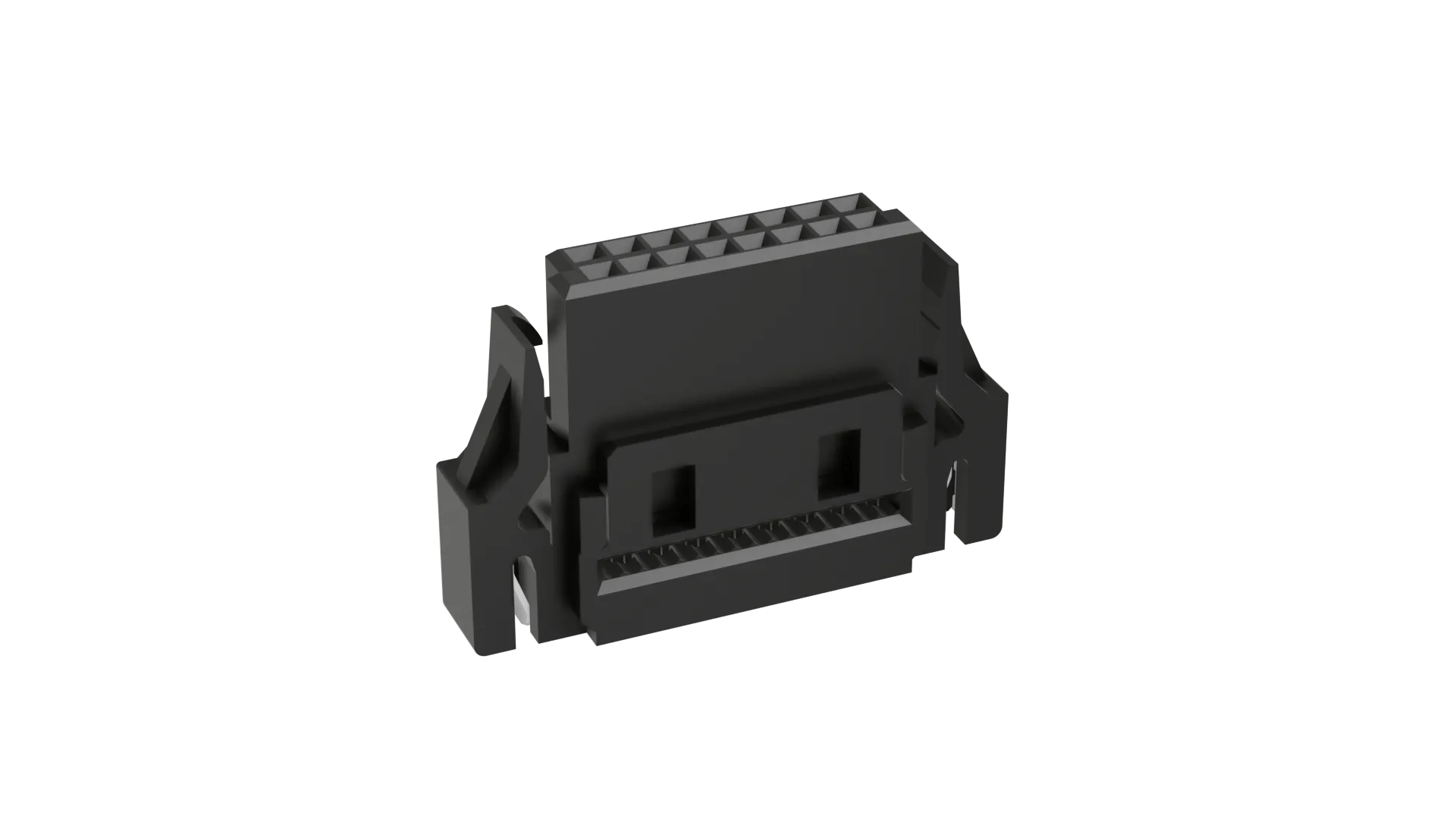

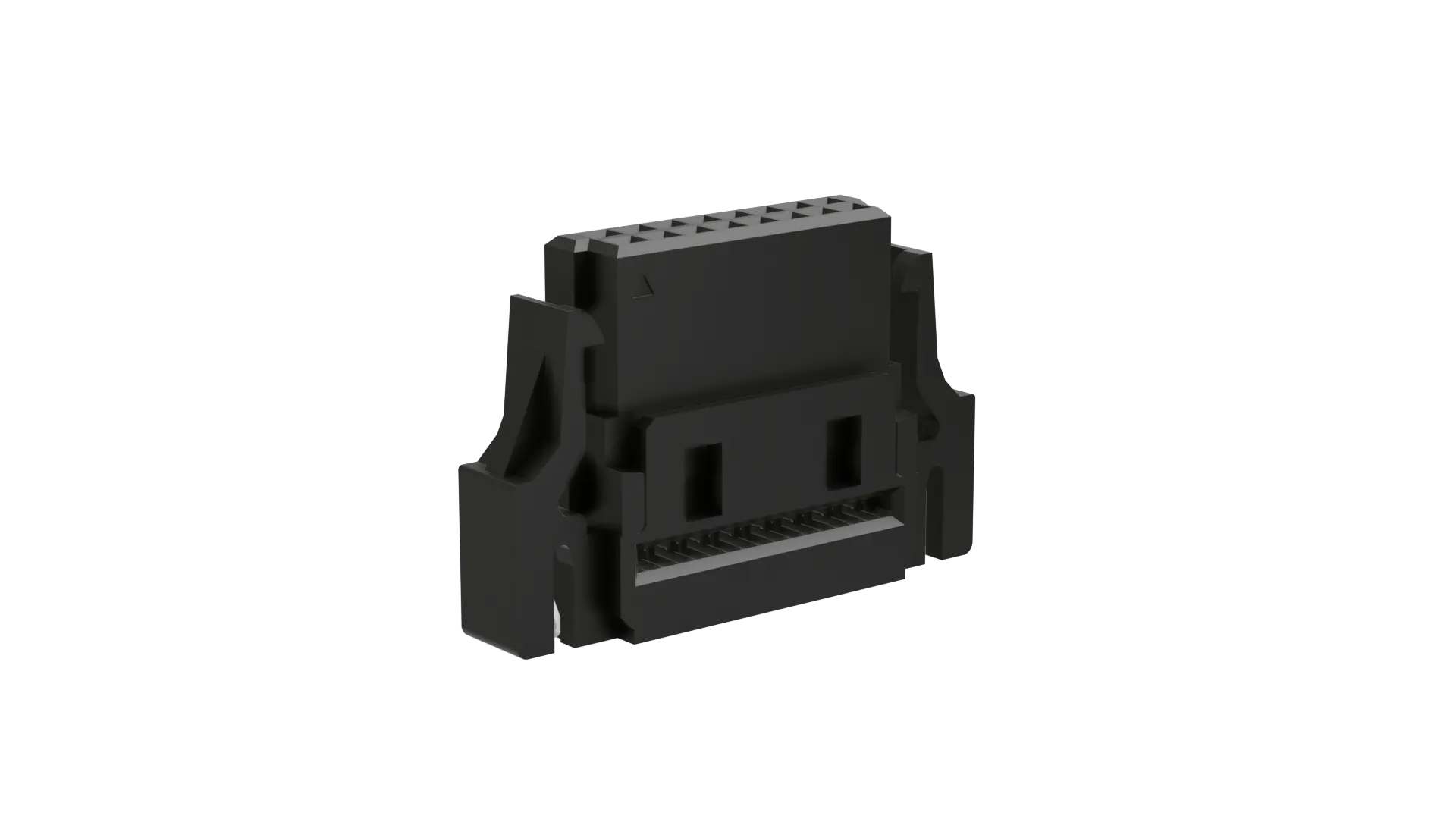

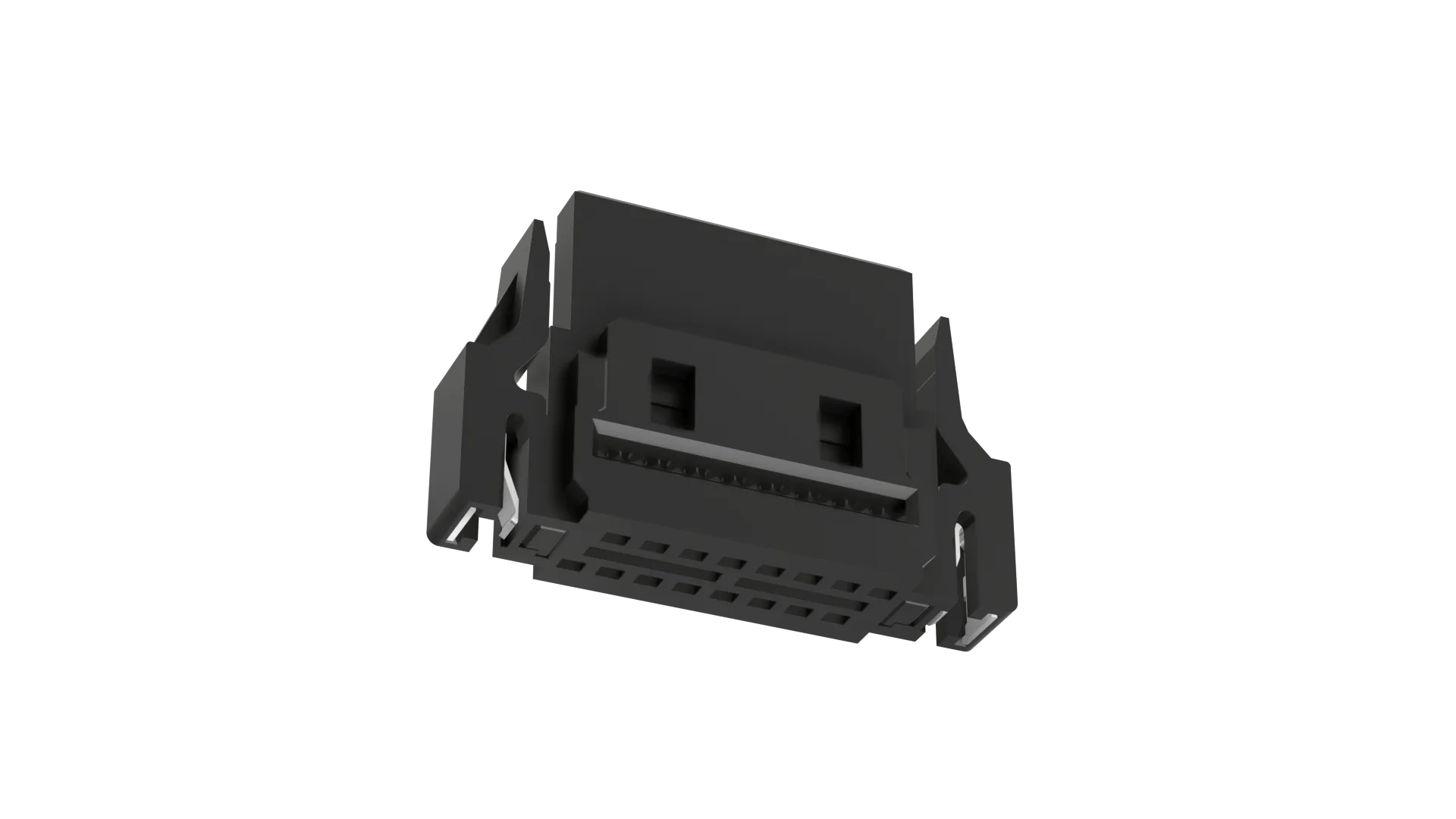

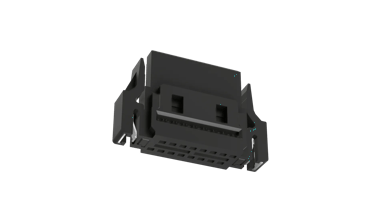

8+8 Pos. Female DIL IDC Cable Connector

1.27mm (0.05") Pitch PCB Connector - Kontrol

Order Sample

Add to Favorites

Loading… Check availability

6 similar products View products

Traceparts account required

Product Description

Double row female connector with IDC cable connection – 16 contacts (8+8). Latching features, polarized and shrouded. Gold finish on contact area, Tin finish on termination.
Suitable for 30 AWG ribbon cable, 0.635mm pitch, UL2678.
For complete pin numbering or pin out information, see Component Specification C047XX.

M55-8201642 - 8+8 Pos. Female DIL IDC Cable Connector

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Angled

Connection Type:

Cable (Ribbon IDC)

Cable Conductor Size:

30AWG

Current Rating:

0.5A max per contact

Operating Temperature:

-20°C to +105°C

Style of Latches:

Built-in Latches

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

LCP (PA66 Latch Cover)

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tray

Individual Part Weight:

1.09g

Overall Dimensions (L x W x D) in mm:

18.50 x 4.70 x 14.10

Mating Profiles:

Catalog page - Archer Kontrol Mating Profiles
