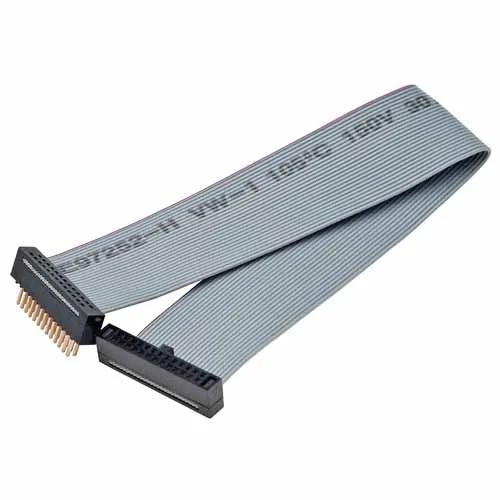

17+17 Pos. Male DIL Cable Assembly, 150mm, Female 2nd end
1.27mm (0.05") Pitch PCB Connector - Archer M50 IDC
EU RoHS Status:
Male & Female
Mating Pin Size:
0.5A per contact
-40°C to +105°C
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Base Material of Contact:
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
156.10 x 25.79 x 8.20
150 in stock
Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.
Questions & Answers Ask a Question
Do the cables connect PIN 1 to PIN 1 of the connectors at the two ends and so on?
Yes, these cable assemblies are contact 1 to contact 1, contact 2 to contact 2 and so on.
M50-9011742 CAD Model (ZIP file containing STP and IGES)Download
