M50-3611542

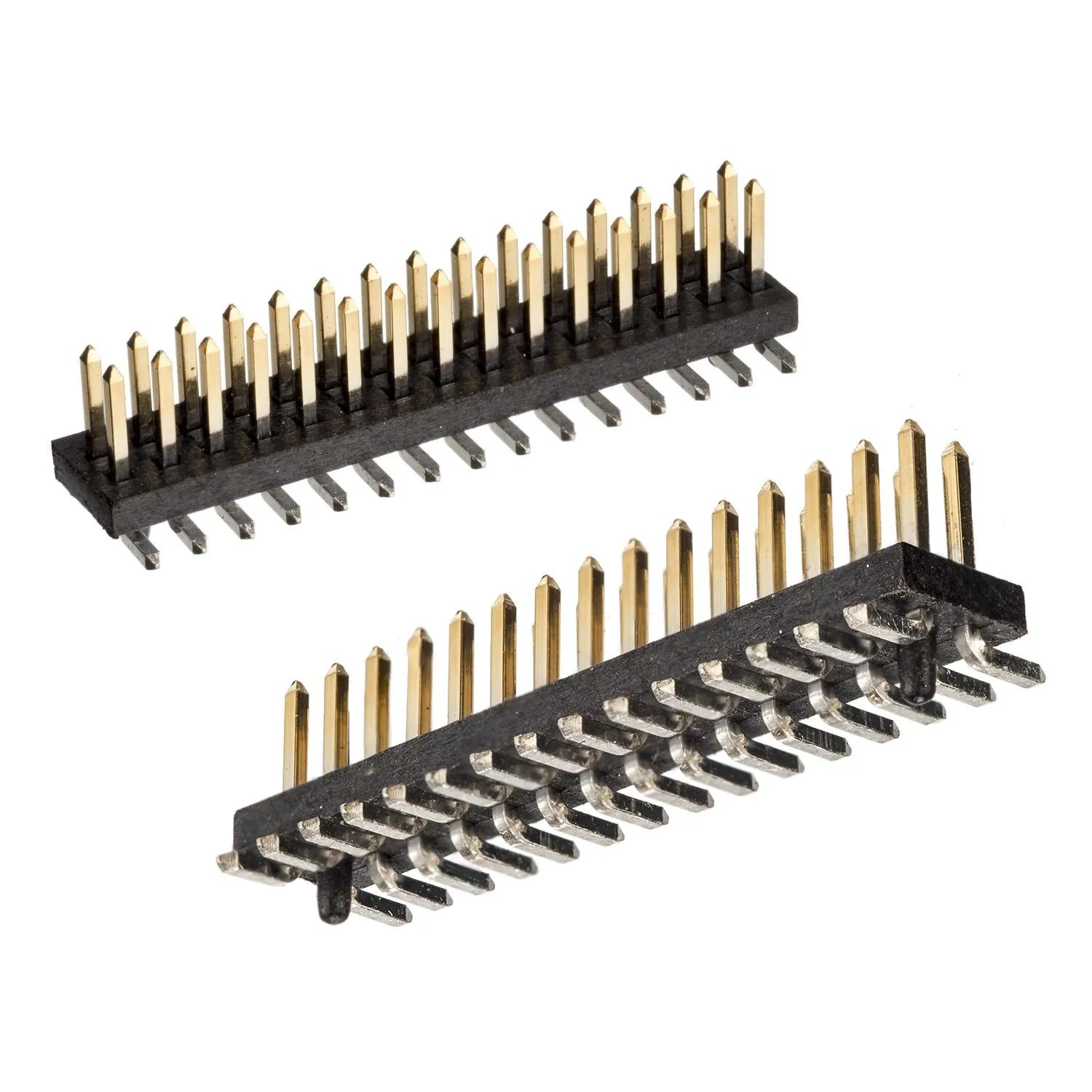

15+15 Pos. Male DIL Vertical SMT Conn.

1.27mm (0.05") Pitch PCB Connector - Archer M50 Board-To-Board

  • Double Row Surface Mount with location pegs, 3mm mating pin height – 30 contacts (15+15).
  • Gold finish on contact area, Tin finish on termination.
  • Packaged loose.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

0.4mm square

Current Rating:

1A per contact

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

Yes

Number of Rows:

2

Number of Signal Contacts:

30

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Housing Material:

Polyamide (Nylon) 6T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.366g

Overall Dimensions (L x W x D) in mm:

19.05 x 5.50 x 5.50

Height of Connector above PCB:

4.68mm

Availability

209 in stock

Info Circle

Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Distributor Location Quantity (Updated Daily)
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 209

Questions & Answers Ask a Question

I cannot find any information on pin out order for the pins on this connector?

For this range, we do not specify any particular pin numbering system. You are free to use any convention you prefer, or use your own. There is no marking on the product to indicate a number 1 pin. You can also find information on pin numbering on our Support article on this topic.

How do I cut down this pin header?

There is no hand cutting tool for this smaller pitch. You can use a fine slitting saw if you have access to cutting machinery, and this will give a clean edge.
