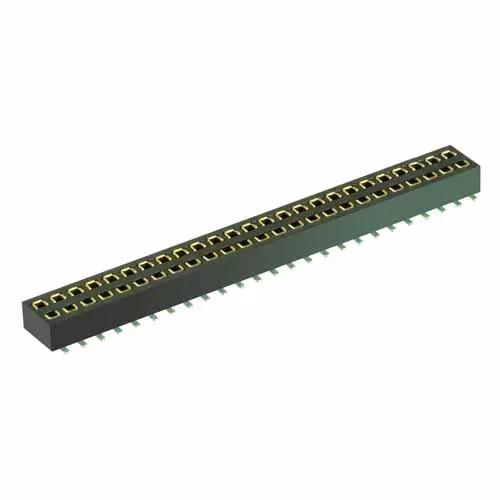

25+25 Pos. Female DIL Vertical SMT Conn. (T+R)
1.27mm (0.05") Pitch PCB Connector - Archer M50 Board-To-Board
Made to order
8 similiar products View products
- Double Row Dual (Top or Bottom) Entry Surface Mount, with location pegs – 50 contacts (25+25).
- Gold finish on contact area, Tin finish on termination. Low profile – 2.2mm connector height.
- Packaged in Tape & Reel, with Pick & Place caps.
EU RoHS Status:
Surface Mount (SMT)
Mating Pin Size:
1A per contact
-40°C to +105°C
Max Solder Temperature: 260°C for 10 seconds
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Dual Entry (Bottom Entry, Top Entry)
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Base Material of Contact:
Polyamide (Nylon) 6T
Housing Material UL Rating:
Tape and Reel
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
32.13 x 4.50 x 2.80
Height of Connector above PCB:
Frequently Asked Questions Ask a Question
RoHS Compliant (2015/863/EU) with no Exemption requiredPDF Download
How can we help?
Contact one of our technical experts via “Ask an Expert”, or book a 30 minute technical consultation.
ECAD Download Options
Download 3D CAD product models directly from Harwin – STP and IGES.Download
No login is required.
