M50-3000445

4+4 Pos. Female DIL Vertical Throughboard Conn.

1.27mm (0.05") Pitch PCB Connector - Archer M50 Board-To-Board

Order Sample

Add to Favorites

In stock Check availability

9 similar products View products

Traceparts account required

Product Description

Double Row, 2.4mm PC Tail, 4.4mm connector height – 8 contacts (4+4).
Gold finish on contact area and termination.

M50-3000445 - 4+4 Pos. Female DIL Vertical Throughboard Conn.

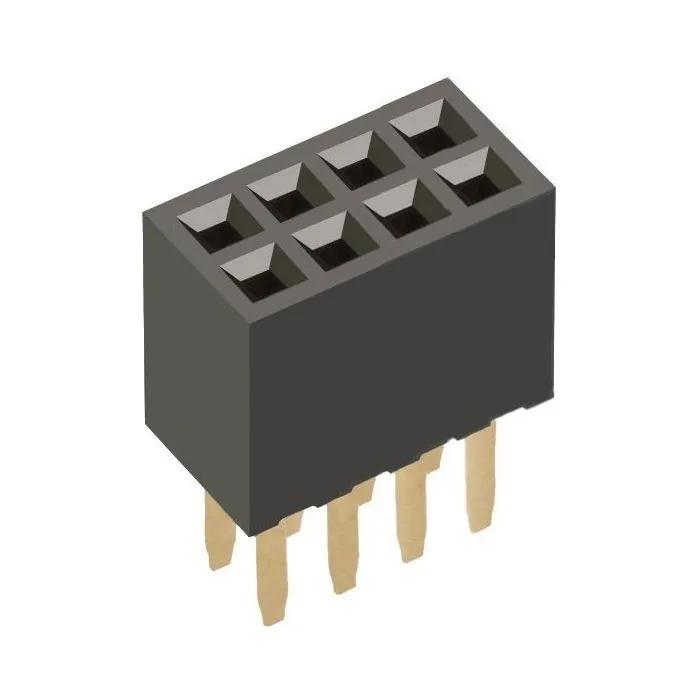

Representative image of product family

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

0.4mm square

Current Rating:

1A per contact

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Entry Style:

Top Entry

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 6T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Individual Part Weight:

0.142g

Overall Dimensions (L x W x D) in mm:

5.48 x 3.10 x 6.80

Height of Connector above PCB:

4.40mm

Length of Throughboard Tail:

2.40mm

Mating Profiles:

Catalog page - Archer M50 Mating Profiles

Frequently Asked Questions Ask a Question

The gold thickness on these connectors is a gold flash, typically 0.03 to 0.10 microns (1.2 to 4 microinches). It is over a nickel undercoat of typically 0.8 to 2.0 microns (30 to 80 microinches).
