M40-9060099
Female Contact with 28AWG wire, 300mm, double-end
1.00mm (0.039") Pitch PCB Connector - M40 Cable-To-Board
In stock Check availability
5 similar products View products
Traceparts account required
Product Description

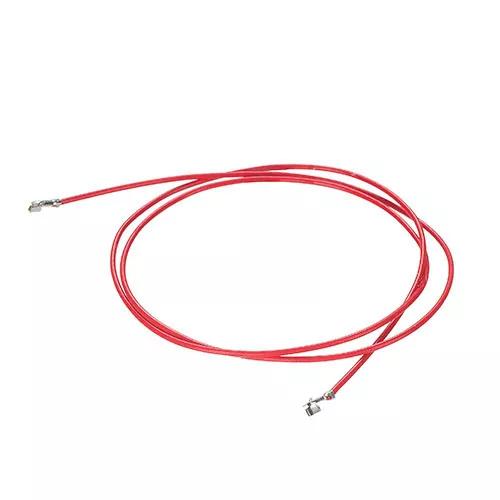

- Single Pre-Crimped Contact, Female-to-Female with red 28 AWG wire, 300mm long.

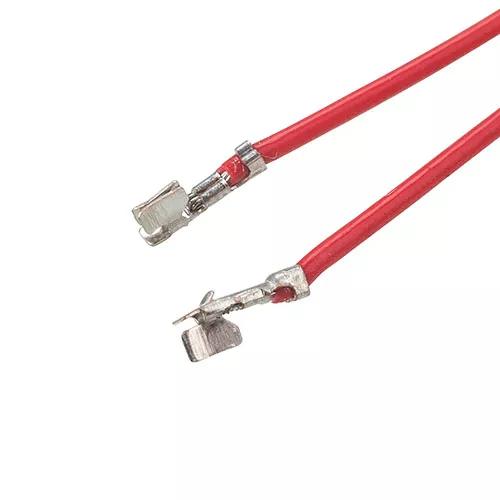

- Manufactured with the M40-1000046 crimp contact. Tin finish on contact area.
- Use with crimp housings M40-110 and M40-120 series.
Traceparts account required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
1.00mm (0.039")
Contact Gender:
Female/Socket/Jack
Connector Orientation:
Straight
Connection Type:
Cable Assembly
Cable Conductor Size:
28AWG
Mating Pin Size:
0.2mm x 0.4mm
Current Rating:
1A per contact
Operating Temperature:
-25°C to +85°C
Materials
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
100% Tin over Nickel
Base Material of Contact:
Phosphor Bronze
Packaging Style:
Bulk/Loose
Dimensions
Individual Part Weight:
0.467g
Overall Dimensions (L x W x D) in mm:
300.00 x 0.78 x 1.35
Mating Profiles:
Frequently Asked Questions Ask a Question
What is the conductor material and finish of the cable used?
We use either UL1571 or UL10064 cable for this assembly. The base material is a copper conductor. For UL1571 it will be tinned, and for UL10064 it is bare copper. The UL specification references are given on the Technical Drawing.
Was this answer useful?
How many mating cycles can be achieved using housing M40-1201500 and pre-cabled contacts M40-9000099? Are there any better choices that may maximise the number of mating cycles?
The durability (number of mating cycles) for this range is 50 operations. For the highest number of cycles, you will need to consider our high-reliability ranges – Gecko would be a good choice as it is the nearest in size. If you need any further assistance in choosing options, please contact our Technical Team.
