M40-9030099

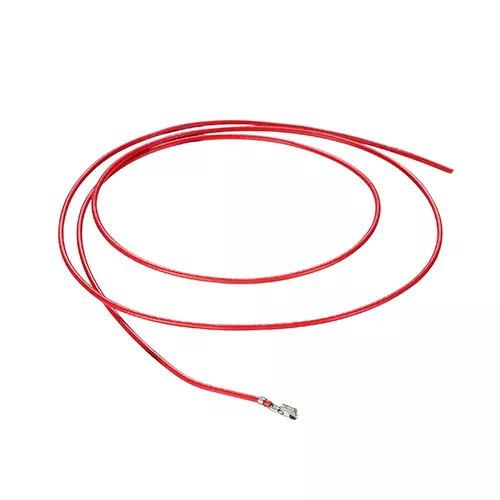

Female Contact with 32AWG wire, 300mm, single-end

1.00mm (0.039") Pitch PCB Connector - M40 Cable-To-Board

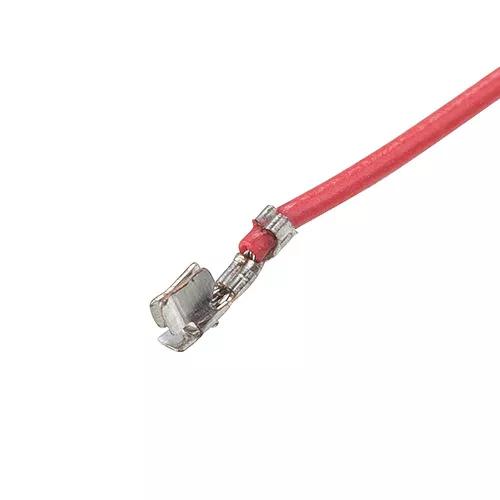

  • Single Pre-Crimped Contact, Female Single-Ended with red 32 AWG wire, 300mm long.
  • Manufactured with the M40-1000046 crimp contact.
  • Use with crimp housings M40-110 and M40-120 series.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.00mm (0.039")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable Assembly

Cable Conductor Size:

32AWG

Mating Pin Size:

0.2mm x 0.4mm

Current Rating:

1A

Operating Temperature:

-25°C to +85°C

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Phosphor Bronze

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.245g

Overall Dimensions (L x W x D) in mm:

300.00 x 0.78 x 1.35

Availability

Popular product
Distributor Location Quantity
Anglia
Europe
Status730
Mouser Electronics Inc
Global
Status90

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

How many mating cycles can be achieved using housing M40-1201500 and pre-cabled contacts M40-9000099? Are there any better choices that may maximise the number of mating cycles?

The durability (number of mating cycles) for this range is 50 operations. For the highest number of cycles, you will need to consider our high-reliability ranges – Gecko would be a good choice as it is the nearest in size. If you need any further assistance in choosing options, please contact our Technical Team.
