Home > M40-6201546R
Active Product

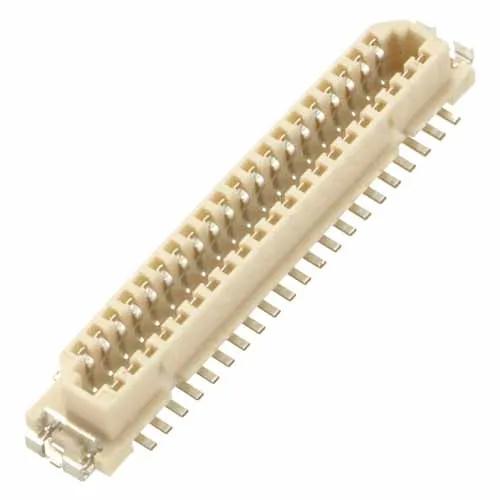

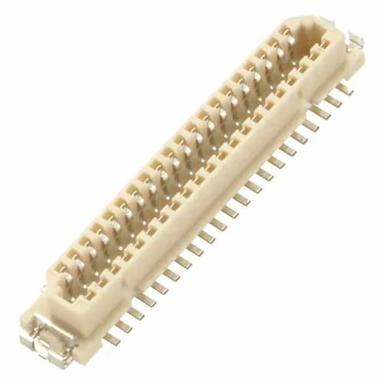

M40-6201546R

15 Pos. Female DIL Vertical SMT Conn. (T+R)

1.00mm (0.039") Pitch PCB Connector - M40 Board-To-Board Fine Pitch

Add to Favorites

Loading…   Check availability

2 similar products View products

Traceparts account required

Product Description

  • Double Row Vertical Board-to-Board Surface Mount Receptacle connector with location pegs – Tin finish, 15 contacts (7+8).
  • Surface Mount hold-down tabs, contacts in staggered format rows.
  • Packaged in Tape & Reel, with Pick & Place caps.

Technical Details

Specification

Contact Pitch:

1.00mm (0.039")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Current Rating:

0.5A per contact

Operating Temperature:

-20°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

15

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Phosphor Bronze

Housing Material:

LCP

Housing Colour:

Natural

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.192g

Overall Dimensions (L x W x D) in mm:

13.10 x 5.60 x 4.30

Height of Connector above PCB:

3.30mm

Frequently Asked Questions Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with no Exemption required
