M40-3200445R
4+4 Pos. Male DIL Vertical SMT Conn. (T+R)
1.00mm (0.039") Pitch PCB Connector - M40 Board-To-Board
12,667 in stock Check availability
2 similiar products View products
Samacsys account required
No login is required
Product Description

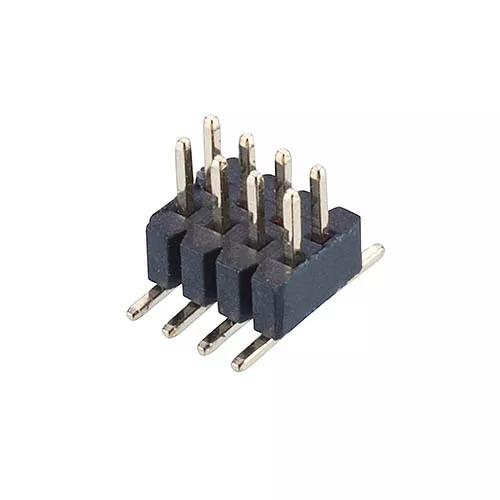

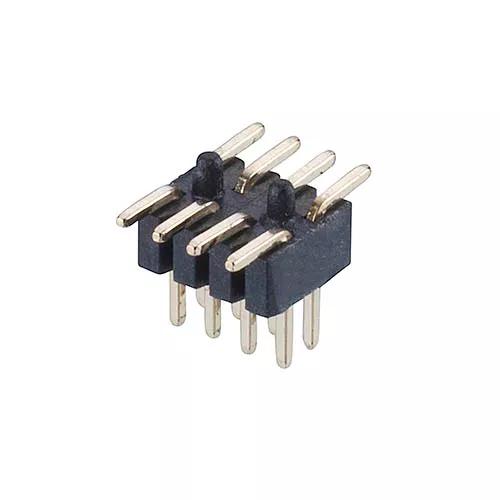

- Double Row Male Surface Mount with location pegs, 1.8mm mating pin height – 8 contacts (4+4).
- Gold finish on contact area and termination.

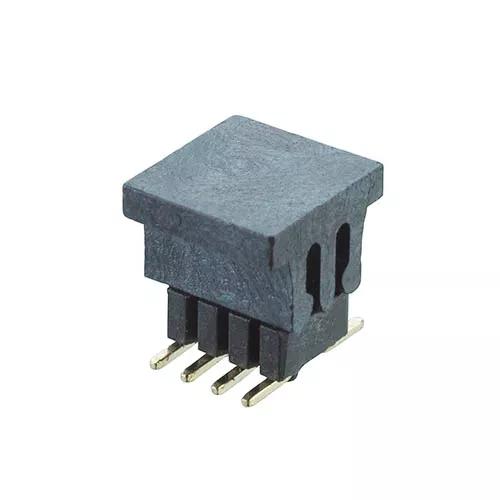

- Packaged in Tape & Reel, with Pick & Place caps.
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
1.00mm (0.039")
Contact Gender:
Male/Plug
Connector Orientation:
Vertical
Connection Type:
Surface Mount (SMT)
Mating Pin Size:
0.3mm square
Current Rating:
1A per contact
Operating Temperature:
-40°C to +105°C
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarising Features:
No
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
Yes
Number of Rows:
2
Number of Signal Contacts:
8
Materials
Finish / Plating on Termination:
Gold
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Brass
Housing Material:
Polyamide (Nylon) 9T
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Tape and Reel
Dimensions
Individual Part Weight:
0.141g
Overall Dimensions (L x W x D) in mm:
4.00 x 5.20 x 4.30
Height of Connector above PCB:
3.80mm
Mating Profiles:
Frequently Asked Questions Ask a Question
How do I cut down this pin header?
There is no hand cutting tool for this smaller pitch. You can use a fine slitting saw if you have access to cutting machinery, and this will give a clean edge.
