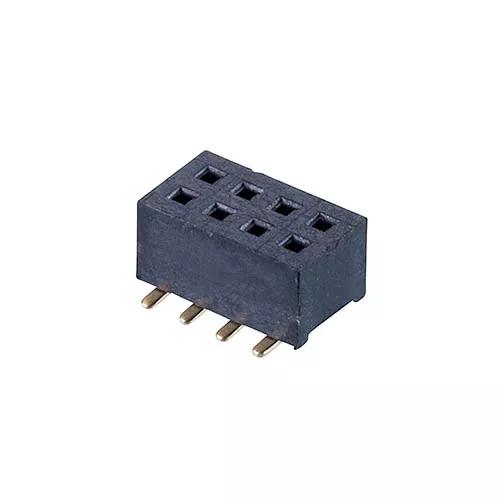

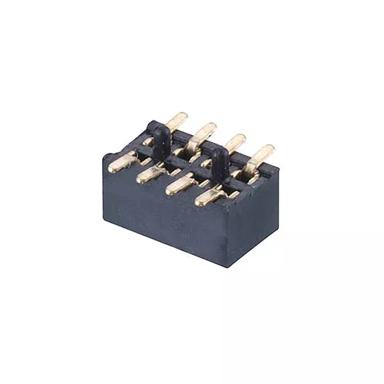

4+4 Pos. Female DIL Vertical SMT Conn. (T+R)
1.00mm (0.039") Pitch PCB Connector - M40 Board-To-Board
- Double Row Female Surface Mount with location pegs, 2.25mm connector height – 8 contacts (4+4).
- Gold finish on contact area and termination.

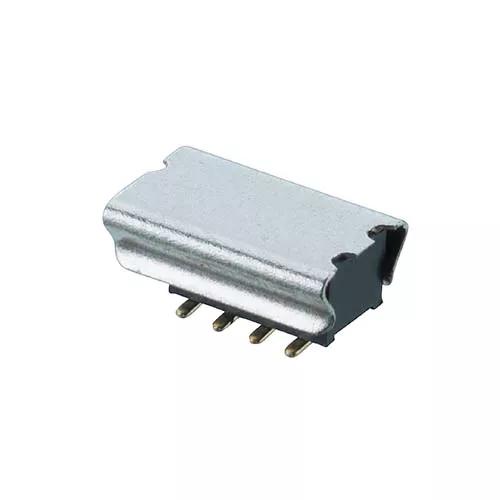

- Packaged in Tape & Reel, with Pick & Place caps.
EU RoHS Status:
Surface Mount (SMT)
Mating Pin Size:
1A per contact
-40°C to +105°C
Max Solder Temperature: 260°C for 10 seconds
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Polyamide (Nylon) 9T
Housing Material UL Rating:
Tape and Reel
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
4.40 x 3.60 x 3.00
Height of Connector above PCB:
