M40-3011446R

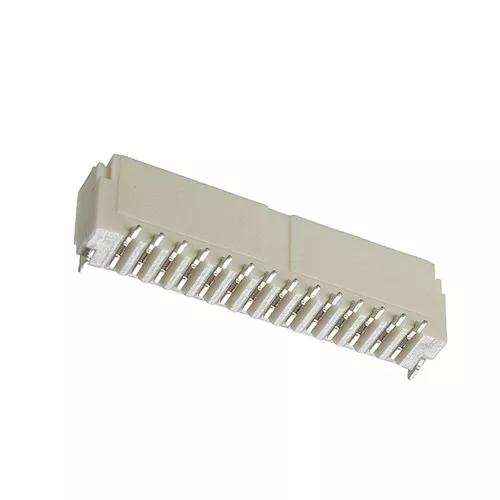

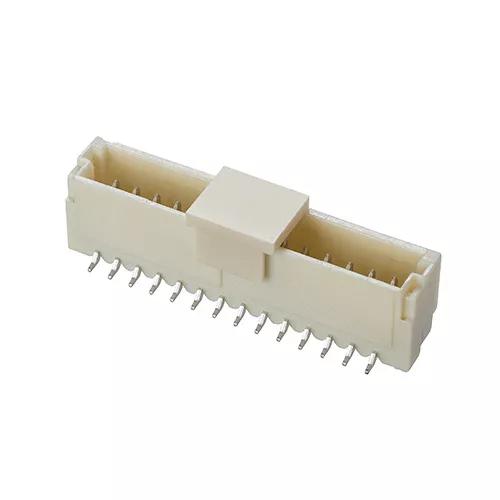

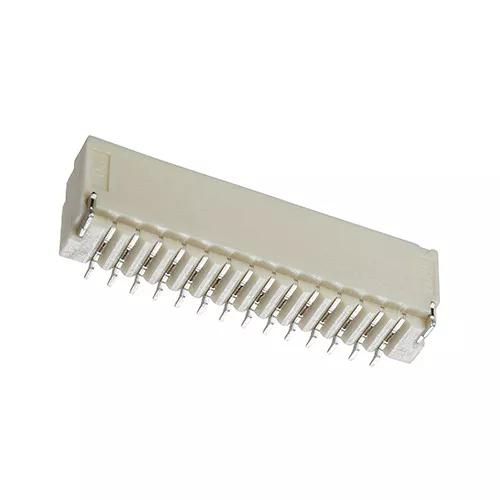

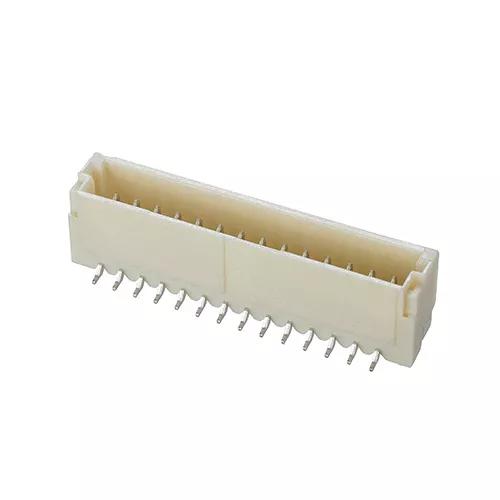

14 Pos. Male SIL Vertical SMT Conn. (T+R)

1.00mm (0.039") Pitch PCB Connector - M40 Cable-To-Board

  • Single Row Male Vertical connector, Surface Mount with Tin finish – 14 contacts.
  • Surface mount hold-down tabs, shrouded and polarized housing.
  • Packaged in Tape & Reel, with Pick & Place caps.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.00mm (0.039")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

0.2mm x 0.4mm

Current Rating:

1A per contact

Operating Temperature:

-25°C to +85°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

1

Number of Signal Contacts:

14

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Phosphor Bronze

Housing Material:

LCP

Housing Colour:

Cream

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.245g

Overall Dimensions (L x W x D) in mm:

16.00 x 3.70 x 4.35

Height of Connector above PCB:

4.35mm

Availability

4,000 in stock

Info Circle

Low availability or made to order”: “This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Distributor Location Quantity (Updated Daily)
Distributor TTI Europe
Location Europe
Quantity (Updated Daily) 4000

Questions & Answers Ask a Question

Can you supply a mating connector in a PCB mount Version?

Sorry, but this range is cable-to-board only, we do not have a mating female connector that is board-mounted. For board-to-board, you will need to switch to a different range, such as the M40-310 and M40-320 connectors. You can see them in this section of the Catalog.

How many mating cycles can be achieved using housing M40-1201500 and pre-cabled contacts M40-9000099? Are there any better choices that may maximise the number of mating cycles?

The durability (number of mating cycles) for this range is 50 operations. For the highest number of cycles, you will need to consider our high-reliability ranges – Gecko would be a good choice as it is the nearest in size. If you need any further assistance in choosing options, please contact our Technical Team.
