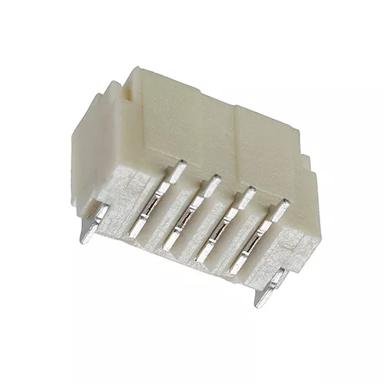

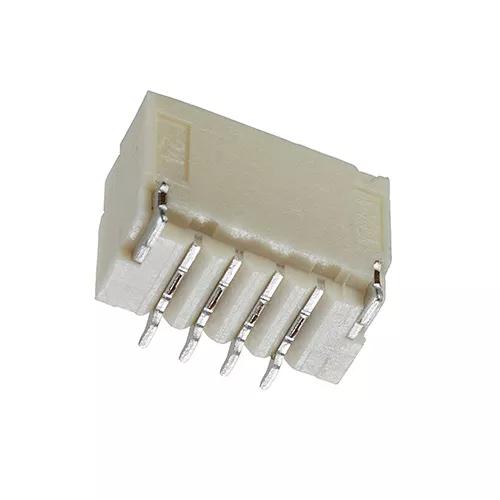

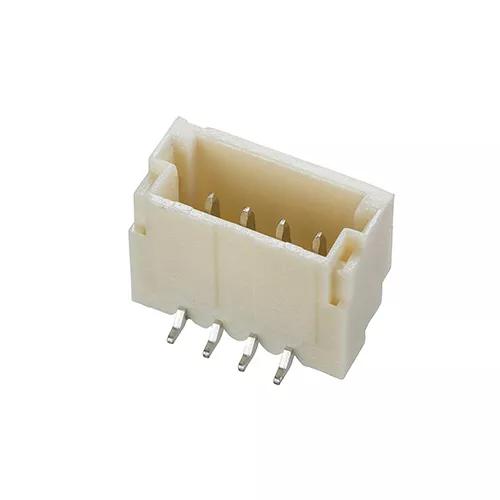

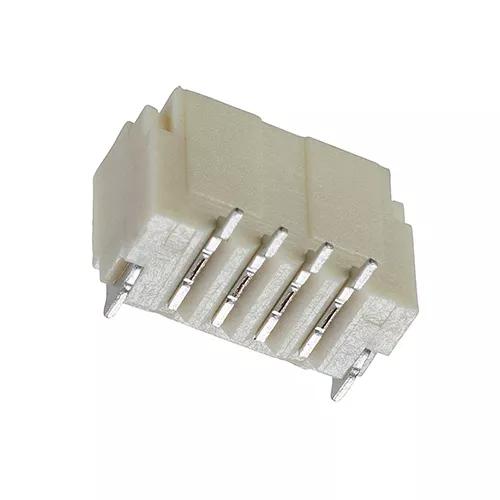

4 Pos. Male SIL Vertical SMT Conn. (T+R)
1.00mm (0.039") Pitch PCB Connector - M40 Cable-To-Board
- Single Row Male Vertical connector, Surface Mount with Tin finish – 4 contacts.
- Surface mount hold-down tabs, shrouded and polarized housing.

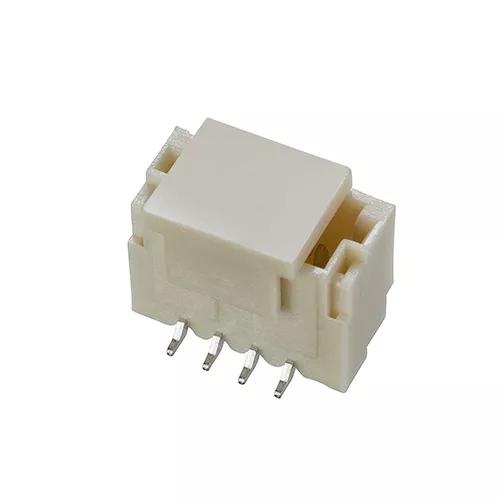

- Packaged in Tape & Reel, with Pick & Place caps.
EU RoHS Status:
Surface Mount (SMT)
Mating Pin Size:
0.2mm x 0.4mm
1A per contact
-25°C to +85°C
Max Solder Temperature: 260°C for 10 seconds
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
100% Tin over Nickel
Base Material of Contact:
Housing Material UL Rating:
Tape and Reel
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
6.00 x 3.70 x 4.35
Height of Connector above PCB:
Frequently Asked Questions Ask a Question
Can you supply a mating connector in a PCB mount Version?
How many mating cycles can be achieved using housing M40-1201500 and pre-cabled contacts M40-9000099? Are there any better choices that may maximise the number of mating cycles?
The durability (number of mating cycles) for this range is 50 operations. For the highest number of cycles, you will need to consider our high-reliability ranges – Gecko would be a good choice as it is the nearest in size. If you need any further assistance in choosing options, please contact our Technical Team.
Was this answer useful?
RoHS Compliant (2015/863/EU) with no Exemption requiredPDF Download
