Home > M40-1000046
Active

M40-1000046

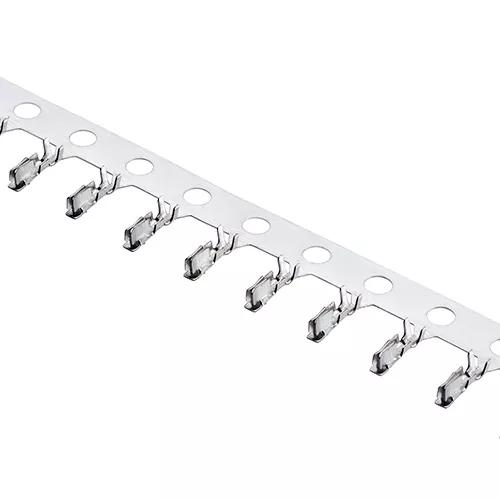

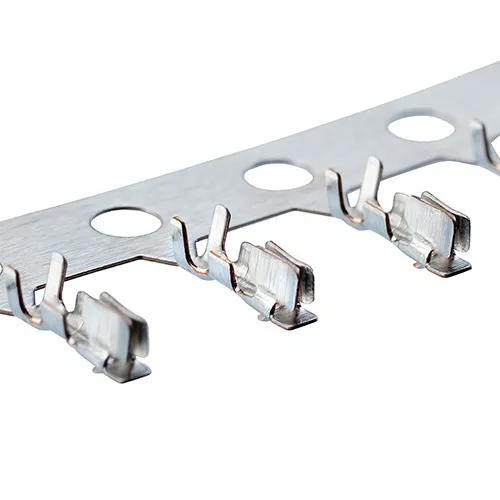

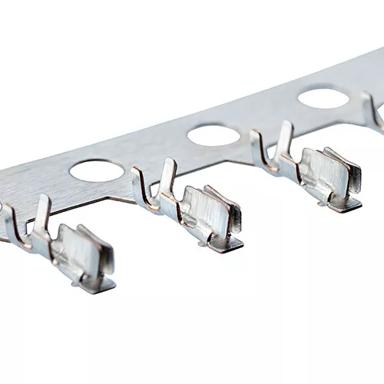

Female 28-32AWG Crimp Contact, reeled

1.00mm (0.039") Pitch PCB Connector - M40 Cable-To-Board

  • Female Crimp contacts, reeled, Tin finish, suitable for cable conductor sizes from 28 to 32AWG.
  • Use with crimp housings M40-110 and M40-120 series.
  • Also available as pre-crimped contacts: M40-9 series.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.00mm (0.039")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Cable Conductor Size:

28-32AWG

Mating Pin Size:

0.2mm x 0.4mm

Current Rating:

1A per contact

Operating Temperature:

-25°C to +85°C

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Phosphor Bronze

Packaging Style:

Reel

Dimensions

Individual Part Weight:

0.007g

Overall Dimensions (L x W x D) in mm:

3.85 x 1.30 x 1.40 (contact only)

Availability

529,599 in stock

Info Circle

Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Distributor Location Quantity (Updated Daily)
Distributor Farnell
Location Europe
Quantity (Updated Daily) 150000
Distributor Newark
Location USA
Quantity (Updated Daily) 150000
Distributor Farnell
Location Europe
Quantity (Updated Daily) 71596
Distributor Newark
Location USA
Quantity (Updated Daily) 71416
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 52598
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 33989

Questions & Answers Ask a Question

What is the hand crimp tool for the M40-1000046 crimp contacts?

Unfortunately, this product is too small for us to be able to offer a suitable hand crimp tool. If you wish to do your own crimping, you will need to commission a crimp applicator for use in a crimp machine from a suitable supplier. Alternatively, you can choose a pre-cabled contact from our M40-9xx range. We can also offer pre-cabled contacts in other lengths or full cable assemblies – contact our Experts for assistance.

How many mating cycles can be achieved using housing M40-1201500 and pre-cabled contacts M40-9000099? Are there any better choices that may maximise the number of mating cycles?

The durability (number of mating cycles) for this range is 50 operations. For the highest number of cycles, you will need to consider our high-reliability ranges – Gecko would be a good choice as it is the nearest in size. If you need any further assistance in choosing options, please contact our Technical Team.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - M40-100.pdf

ZIP

M40-1000046 CAD Model (ZIP file containing STP and IGES)

Download

TEST REPORTS

PDF

Test Report HT031 - M40-110 Housing and M40-100 Contact - Electrical, Mechanical and Environmental

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (12-Feb-2021) including 211 SVHC (19-Jan-2021), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (12-Feb-2021) - includes all material legislations

PDF

Material composition for M40-1000046 product

INSTRUCTION SHEETS

PDF

Product Training Module - Overview of the Fine Pitch connectors, 1.25mm pitch and smaller

PDF

Product Training Module - Cable Connectors and Assemblies from Harwin

PDF

Product Training Module - Cable Products from Harwin

OTHER DOWNLOADS

PDF

Catalog page - M40 Cable-to-Board Female Crimp Contacts

PDF

Catalog page - M40 Cable-to-Board Specification, Mating Profile
