Home > M30-1100200
Active

M30-1100200

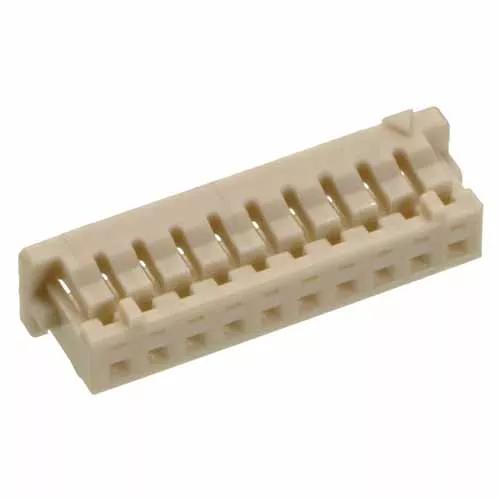

2 Pos. Female SIL Cable Housing

1.25mm (0.049") Pitch PCB Connector - M30 Cable-To-Board

  • Single Row female crimp housing – 2 contact.
  • Bump latches for added retention to mating connector.
  • Use with crimp contacts M30-1050046, M30-1060046 or pre-crimped contacts M30-90 series.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable Housing

Mating Pin Size:

0.35mm square

Current Rating:

1A per contact

Operating Temperature:

-25°C to +85°C

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

1

Number of Signal Contacts:

2

Materials

Housing Material:

Polyamide (Nylon) 66

Housing Colour:

Natural

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.019g

Overall Dimensions (L x W x D) in mm:

4.15 x 3.20 x 4.00

Availability

Limited availability or made-to-order
Distributor Location Quantity
Digi-Key
Global
Status9889
Iconnexion Asia Pte Ltd
Asia
Status7000
Mouser Electronics Inc
Global
Status231

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - M30-110.pdf

ZIP

M30-1100200 CAD Model (ZIP file containing STP and IGES)

Download
PDF

C025XX Component Specification - M30 Series (1.25mm pitch PCB connectors)

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (6-Jul-2020) including 209 SVHC (25-Jun-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

PDF

Material composition for M30-110 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview of the Fine Pitch connectors, 1.25mm pitch and smaller

PDF

Product Training Module - Cable Connectors and Assemblies from Harwin

OTHER DOWNLOADS

PDF

Catalog page - M30 Female Cable Housing

PDF

Catalog page - M30 Connectors Specification, Mating Profiles
