M22-7141342

13+13 Pos. Female DIL Vertical Throughboard Conn.

2.00mm (0.079") Pitch PCB Connector - M22 Series

Order Sample

Add to Favorites

In stock Check availability

4 similar products View products

Traceparts account required

Product Description

Double Row, 2.4mm PC Tail, 4.3mm connector height – 26 contacts (13+13).
Gold finish on contact area, Tin finish on termination.

M22-7141342 - 13+13 Pos. Female DIL Vertical Throughboard Conn.

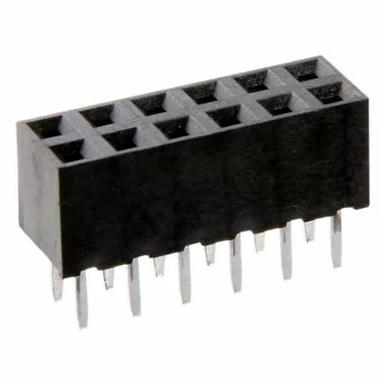

Representative image of product family

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

0.5mm square

Current Rating:

2A per contact

Operating Temperature:

-25°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Entry Style:

Top Entry

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

LCP

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Individual Part Weight:

0.651g

Overall Dimensions (L x W x D) in mm:

26.50 x 4.00 x 6.70

Height of Connector above PCB:

4.30mm

Length of Throughboard Tail:

2.40mm

Frequently Asked Questions Ask a Question

There are polarizing plugs available separately for this connector – part number M22-0340000. It is listed further down the page, under “Related Products” as an accessory. To use this polarizing plug, you will also need to manually remove the associated male pin to be able to mate the connectors.
