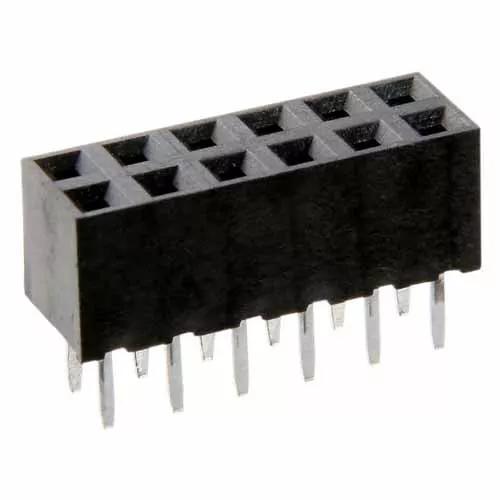

8+8 Pos. Female DIL Vertical Throughboard Conn.
2.00mm (0.079") Pitch PCB Connector - M22 Series
- Double Row, 2.4mm PC Tail, 4.3mm connector height – 16 contacts (8+8).
- Gold finish on contact area, Tin finish on termination.
EU RoHS Status:
PC Tail / Throughboard
Mating Pin Size:
2A per contact
-25°C to +105°C
Max Solder Temperature: 260°C for 10 seconds
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Base Material of Contact:
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
16.50 x 4.00 x 6.70
Height of Connector above PCB:
Length of Throughboard Tail:
1,053 in stock
Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.
Questions & Answers Ask a Question
Is this connector available polarized, or are polarization plugs available separately?
There are polarizing plugs available separately for this connector – part number M22-0340000. It is listed further down the page, under “Related Products” as an accessory. To use this polarizing plug, you will also need to manually remove the associated male pin to be able to mate the connectors.
