Home > M22-7130342
Active Product

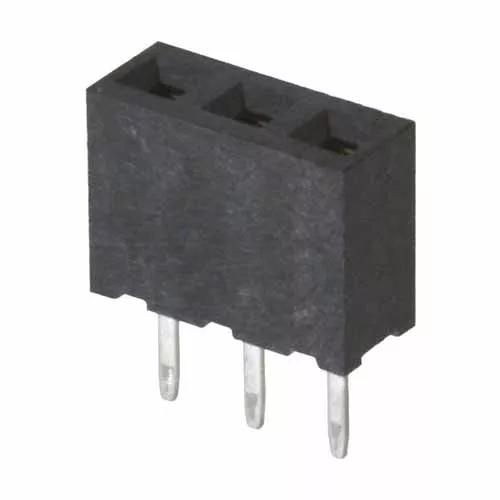

M22-7130342

3 Pos. Female SIL Vertical Throughboard Conn.

2.00mm (0.079") Pitch PCB Connector - M22 Series

Add to Favorites

15,522 in stock   Check availability

2 similiar products View products

Samacsys account required

Download

No login is required

Product Description

  • Single Row, 2.4mm PC Tail, 4.4mm connector height – 3 contacts.
  • Gold finish on contact area, Tin finish on termination.

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

0.5mm square

Current Rating:

2A per contact

Operating Temperature:

-25°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

1

Number of Signal Contacts:

3

Entry Style:

Top Entry

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

LCP

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

0.12g

Overall Dimensions (L x W x D) in mm:

6.50 x 2.40 x 6.80

Height of Connector above PCB:

4.40mm

Length of Throughboard Tail:

2.40mm

Frequently Asked Questions Ask a Question

Is this connector available polarized, or are polarization plugs available separately?

There are polarizing plugs available separately for this connector – part number M22-0340000. It is listed further down the page, under “Related Products” as an accessory. To use this polarizing plug, you will also need to manually remove the associated male pin to be able to mate the connectors.

Was this answer useful?

Downloads

TECHNICAL DOCUMENTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with no Exemption required

PDF Download
