M22-6360542

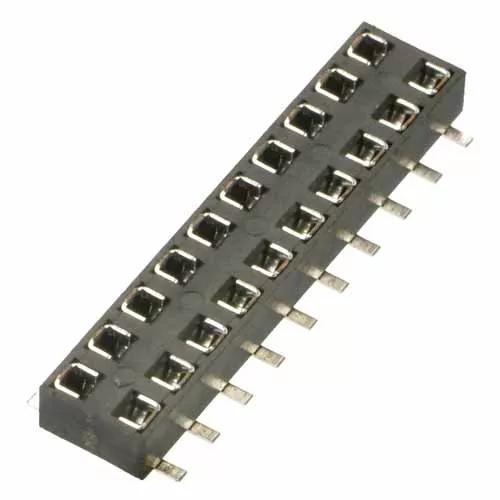

5+5 Pos. Female DIL Vertical SMT Conn.

2.00mm (0.079") Pitch PCB Connector - M22 Series

  • Double Row Surface Mount, Dual (Top and Bottom) Entry – 10 contacts (5+5).
  • Gold finish on contact area, Tin finish on termination.
  • Packaged in tubes.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

0.5mm square

Current Rating:

2A per contact

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

10

Entry Style:

Dual Entry (Bottom Entry, Top Entry)

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 9T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

0.073g

Overall Dimensions (L x W x D) in mm:

10.00 x 6.00 x 3.00

Height of Connector above PCB:

2.10mm

Availability

12,575 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 4049
Distributor Iconnexion Asia Pte Ltd
Location Asia
Quantity (Updated Daily) 3078
Distributor Anglia
Location Europe
Quantity (Updated Daily) 3035
Distributor TTI Europe
Location Europe
Quantity (Updated Daily) 1083
Distributor Farnell
Location Europe
Quantity (Updated Daily) 665
Distributor Newark
Location USA
Quantity (Updated Daily) 437
Distributor Avnet Abacus
Location Europe
Quantity (Updated Daily) 228
