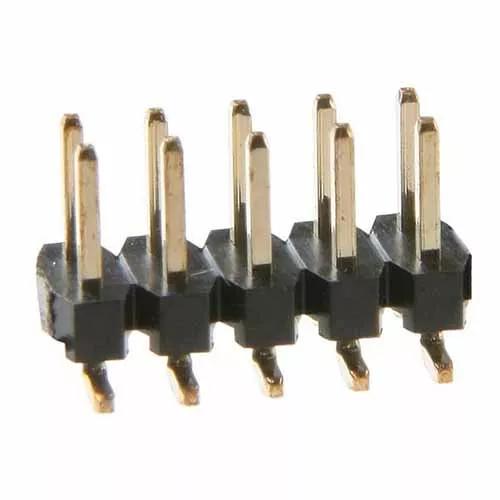

M22-5320505R
5+5 Pos. Male DIL Vertical SMT Conn. (T+R)
2.00mm (0.079") Pitch PCB Connector - M22 Series
In stock Check availability
6 similar products View products
Traceparts account required
Product Description
- Double Row Surface Mount, 3.5mm mating pin height – 10 contacts (5+5).
- Gold finish on contact area and termination.
- Packaged in Tape & Reel, with Pick & Place caps.
Traceparts account required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
2.00mm (0.079")
Contact Gender:
Male/Plug
Connector Orientation:
Vertical
Connection Type:
Surface Mount (SMT)
Mating Pin Size:
0.5mm square
Current Rating:
1A per contact
Operating Temperature:
-40°C to +105°C
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarising Features:
No
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
Yes
Number of Rows:
2
Number of Signal Contacts:
10
Materials
Finish / Plating on Termination:
Gold
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Phosphor Bronze
Housing Material:
Polyamide (Nylon) 6T
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Tape and Reel
Dimensions
Individual Part Weight:
0.302g
Overall Dimensions (L x W x D) in mm:
10.00 x 5.75 x 6.00
Height of Connector above PCB:
6.00mm
Frequently Asked Questions Ask a Question
What is shelf life for this part M22-5320505R?
The shelf life for gold-plated connector is 60 months – you can find further information on shelf-life on this Support page.
Was this answer useful?
How do I cut down this pin header?
Single row pin headers can be carefully snapped by hand. For both single and double row, you can also purchase a hand-cutting tool Z1022-00 – it was designed for 2.54mm pitch, but can work on 2mm. Or, you can use a fine slitting saw if you have access to cutting machinery – this will give the cleanest edge.
Was this answer useful?
