M22-3021000

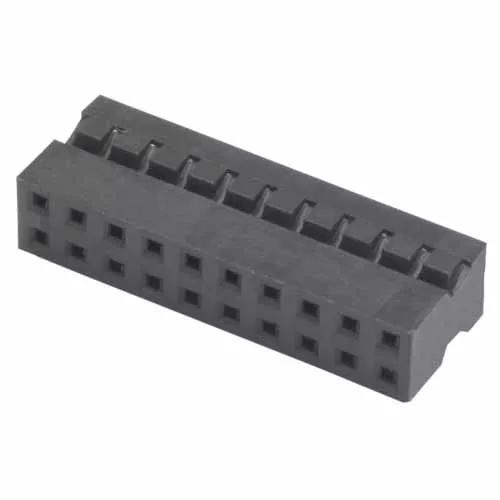

10+10 Pos. Female DIL Cable Housing

2.00mm (0.079") Pitch PCB Connector - M22 Series

Order Sample

Add to Favorites

In stock Check availability

2 similar products View products

Traceparts account required

Product Description

Double Row female crimp housing – 20 contact (10+10).
Use with crimp contacts M22-3040042, M22-3040046, M22-3050042 or M22-3050046.

M22-3021000 - 10+10 Pos. Female DIL Cable Housing

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Mating Pin Size:

0.5mm square

Current Rating:

1A per contact

Operating Temperature:

-25°C to +85°C

Polarising Features:

End Stackable:

Side Stackable:

Yes

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Housing Material:

Polyamide (Nylon) 66

Housing Colour:

Black

Housing Material UL Rating:

UL94V-2

Packaging Style:

Bulk/Loose

Individual Part Weight:

0.337g

Overall Dimensions (L x W x D) in mm:

20.20 x 4.00 x 7.20

Frequently Asked Questions Ask a Question

There are polarizing plugs available separately for this connector – part number M22-0340000. It is listed further down the page, under “Related Products” as an accessory. To use this polarizing plug, you will also need to manually remove the associated male pin to be able to mate the connectors.

Was this answer useful?

Downloads

RoHS Compliant (2015/863/EU) with no Exemption required

PDF Download
