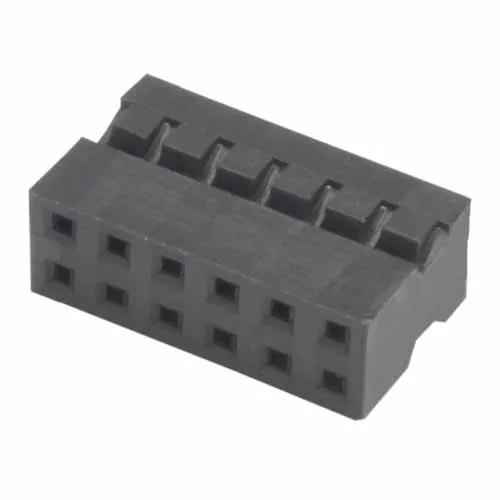

6+6 Pos. Female DIL Cable Housing
2.00mm (0.079") Pitch PCB Connector - M22 Series
4,932 in stock Check availability
2 similiar products View products
- Double Row female crimp housing – 12 contact (6+6).
- Use with crimp contacts M22-3040042, M22-3040046, M22-3050042 or M22-3050046.
EU RoHS Status:
Mating Pin Size:
1A per contact
-25°C to +85°C
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Polyamide (Nylon) 66
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
12.20 x 4.00 x 7.20
Frequently Asked Questions Ask a Question
Is this connector available polarized, or are polarization plugs available separately?
There are polarizing plugs available separately for this connector – part number M22-0340000. It is listed further down the page, under “Related Products” as an accessory. To use this polarizing plug, you will also need to manually remove the associated male pin to be able to mate the connectors.
