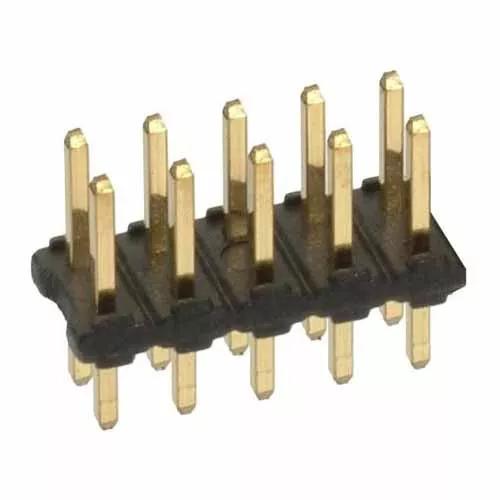

5+5 Pos. Male DIL Vertical Throughboard Conn.
2.00mm (0.079") Pitch PCB Connector - M22 Series
- Double Row, 2.3mm PC Tail, 3.5mm mating pin height – 10 contacts (5+5).
- Gold finish on contact area and termination.
EU RoHS Status:
PC Tail / Throughboard
Mating Pin Size:
2A per contact
-40°C to +105°C
Max Solder Temperature: 260°C for 10 seconds
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Polyamide (Nylon) 6T
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
10.00 x 4.00 x 7.30
Height of Connector above PCB:
Length of Throughboard Tail:
Frequently Asked Questions Ask a Question
How do I cut down this pin header?
Single row pin headers can be carefully snapped by hand. For both single and double row, you can also purchase a hand-cutting tool Z1022-00 – it was designed for 2.54mm pitch, but can work on 2mm. Or, you can use a fine slitting saw if you have access to cutting machinery – this will give the cleanest edge.
Was this answer useful?
RoHS Compliant (2015/863/EU) with no Exemption requiredPDF Download
