Home > M22-2511005
Active Product

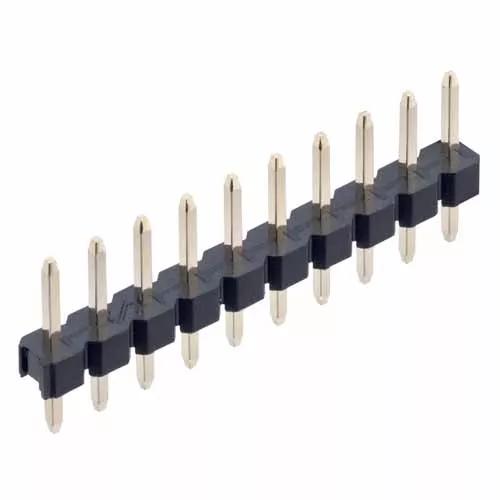

M22-2511005

10 Pos. Male SIL Vertical Throughboard Conn.

2.00mm (0.079") Pitch PCB Connector - M22 Series

Add to Favorites

55,644 in stock   Check availability

6 similiar products View products

Samacsys account required

Download

No login is required

Product Description

  • Single row 2.3mm PC Tail, 3.5mm mating pin height – 10 contacts.
  • Gold finish on contact area and termination.

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

0.5mm square

Current Rating:

2A per contact

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

Yes

Can be cut to another size:

Yes

Number of Rows:

1

Number of Signal Contacts:

10

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 6T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.222g

Overall Dimensions (L x W x D) in mm:

20.00 x 2.00 x 7.30

Height of Connector above PCB:

5.00mm

Length of Throughboard Tail:

2.30mm

Frequently Asked Questions Ask a Question

How do I cut down this pin header?

Single row pin headers can be carefully snapped by hand. For both single and double row, you can also purchase a hand-cutting tool Z1022-00 – it was designed for 2.54mm pitch, but can work on 2mm. Or, you can use a fine slitting saw if you have access to cutting machinery – this will give the cleanest edge.

Was this answer useful?

Downloads

TECHNICAL DOCUMENTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with no Exemption required
