M22-2012005

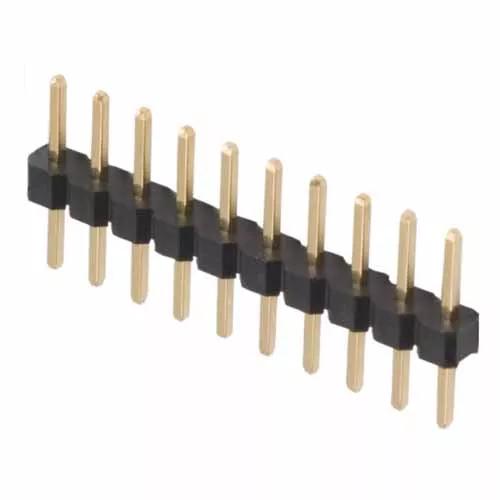

20 Pos. Male SIL Vertical Throughboard Conn.

2.00mm (0.079") Pitch PCB Connector - M22 Series

  • Single row 3.4mm PC Tail, 3.5mm mating pin height – 20 contacts.
  • Gold finish on contact area and termination.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

0.5mm square

Current Rating:

2A per contact

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

Yes

Can be cut to another size:

Yes

Number of Rows:

1

Number of Signal Contacts:

20

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 6T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.476g

Overall Dimensions (L x W x D) in mm:

40.00 x 2.00 x 8.40

Height of Connector above PCB:

5.00mm

Length of Throughboard Tail:

3.40mm

Availability

2,645 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 680
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 654
Distributor Genalog
Location Europe
Quantity (Updated Daily) 451
Distributor Farnell
Location Europe
Quantity (Updated Daily) 430
Distributor Newark
Location USA
Quantity (Updated Daily) 430

Questions & Answers Ask a Question

How do I cut down this pin header?

Single row pin headers can be carefully snapped by hand. For both single and double row, you can also purchase a hand-cutting tool Z1022-00 – it was designed for 2.54mm pitch, but can work on 2mm. Or, you can use a fine slitting saw if you have access to cutting machinery – this will give the cleanest edge.

Downloads

TECHNICAL DOCUMENTS

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required
