M22-1920046

2 Pos. Female Jumper Socket, Open Shunt, Red

2.00mm (0.079") Pitch PCB Connector - M22 Series

Order Sample

Add to Favorites

In stock Check availability

3 similar products View products

Traceparts account required

Product Description

Open Top jumper socket or shunt, Red housing color, Tin finish.
High-Reliability Multi-Usage, up to 50 operations.
Alternative programming method to DIP switches.

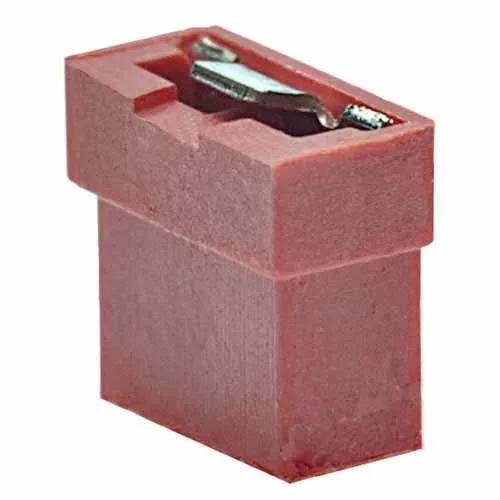

M22-1920046 - 2 Pos. Female Jumper Socket, Open Shunt, Red

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

Jumper Socket

Mating Pin Size:

0.5mm square

Current Rating:

2A max at 25°C

Operating Temperature:

-40°C to +85°C

Polarising Features:

End Stackable:

Yes

Side Stackable:

Yes

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Beryllium Copper

Housing Material:

PBT

Housing Colour:

Red

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Individual Part Weight:

0.07g

Overall Dimensions (L x W x D) in mm:

3.85 x 1.93 x 3.45
