Home > M22-1900046
Active Product

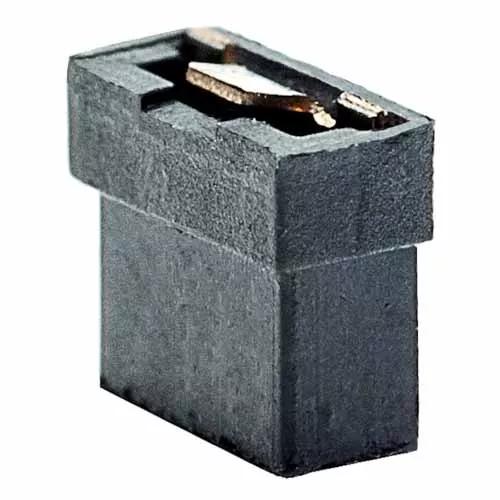

M22-1900046

2 Pos. Female Jumper Socket, Open Shunt, Black

2.00mm (0.079") Pitch PCB Connector - M22 Series

Add to Favorites

13,568 in stock   Check availability

3 similiar products View products

Samacsys account required

Download

No login is required

Product Description

  • Open Top jumper socket or shunt, Black housing color, Tin finish.
  • High-Reliability Multi-Usage, up to 50 operations.
  • Alternative programming method to DIP switches.

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

Jumper Socket

Mating Pin Size:

0.5mm square

Current Rating:

2A max at 25°C

Operating Temperature:

-40°C to +85°C

Polarising Features:

No

End Stackable:

Yes

Side Stackable:

Yes

Can be cut to another size:

No

Number of Rows:

1

Number of Signal Contacts:

2

Materials

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Beryllium Copper

Housing Material:

PBT

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.07g

Overall Dimensions (L x W x D) in mm:

3.85 x 1.93 x 3.45

Frequently Asked Questions Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with no Exemption required
