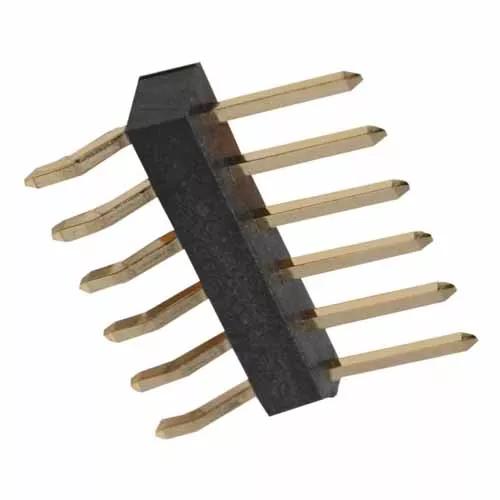

M20-8900705
7 Pos. Male SIL Horizontal SMT Conn.
2.54mm (0.1") Pitch PCB Connector - M20 Series
7,777 in stock Check availability
5 similiar products View products
Samacsys account required
No login is required
Product Description
- Single Row Surface Mount, 6.0mm mating pin, 3.46mm molding profile – 7 contacts.
- Gold finish on contact area and termination.
- Packaged loose.
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
2.54mm (0.1")
Contact Gender:
Male/Plug
Connector Orientation:
Horizontal
Connection Type:
Surface Mount (SMT)
Mating Pin Size:
0.64mm square
Current Rating:
3A per contact
Operating Temperature:
-40°C to +105°C
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarising Features:
No
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
Yes
Number of Rows:
1
Number of Signal Contacts:
7
Materials
Finish / Plating on Termination:
Gold
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Brass
Housing Material:
Polyamide (Nylon) 6T
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Bulk/Loose
Dimensions
Individual Part Weight:
1.573g
Overall Dimensions (L x W x D) in mm:
17.78 x 13.20 x 3.46
Height of Connector above PCB:
3.46mm
Frequently Asked Questions Ask a Question
How do I cut down this pin header?
Single row pin headers can be carefully snapped by hand. For both single and double row, you can also purchase a hand-cutting tool Z1022-00. Or, you can use a fine slitting saw if you have access to cutting machinery – this will give the cleanest edge.
