M20-6162005

20+20 Pos. Female DIL Vertical Throughboard Conn. Press-fit

2.54mm (0.1") Pitch PC/104 Connector

Order Sample

Add to Favorites

In stock Check availability

1 similar products View products

Traceparts account required

Product Description

2.54mm (0.1″) Pitch Double Row, with press-fit tails – Gold finish, 40 contacts (20+20).
3.4mm PC Tails.
Non-stackthrough tails, to finish at the bottom of a vertical bus stack.

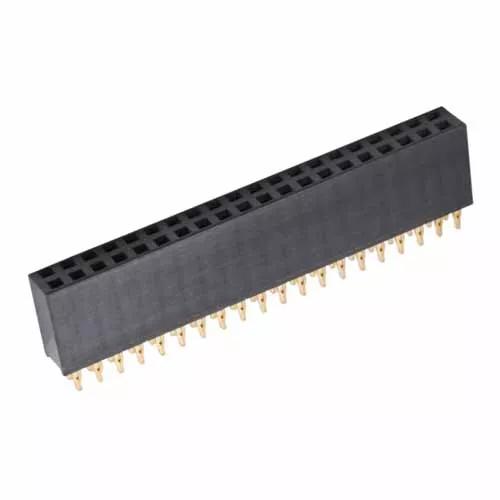

M20-6162005 - 20+20 Pos. Female DIL Vertical Throughboard Conn. Press-fit

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

Press-Fit PC Tail / Throughboard

Mating Pin Size:

0.64mm square

Current Rating:

1A max per contact

Operating Temperature:

-55°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

End Stackable:

Side Stackable:

Yes

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Entry Style:

Top Entry

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Individual Part Weight:

6.08g

Overall Dimensions (L x W x D) in mm:

51.82 x 4.90 x 14.50

Height of Connector above PCB:

11.10mm

Length of Throughboard Tail:

3.40mm
