M20-1160046

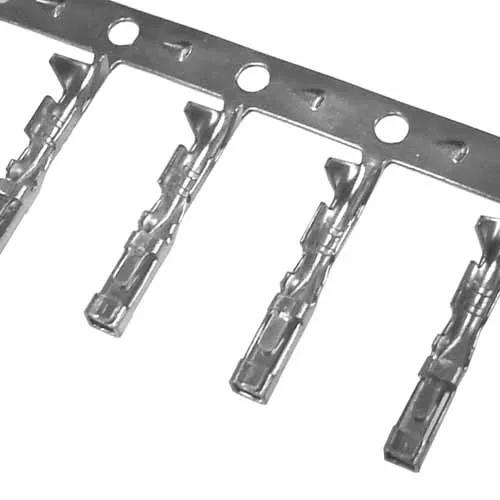

Female 22-30AWG Crimp Contact, reeled

2.54mm (0.1") Pitch PCB Connector - M20 Series

  • Female crimp contacts on reel – Tin finish contact area.
  • Suitable for cable conductor sizes from 22 to 30AWG.
  • Use with crimp housings M20-106 and M20-107 series.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Cable Conductor Size:

22-30AWG

Mating Pin Size:

0.64mm square

Current Rating:

3A per contact

Operating Temperature:

-40°C to +105°C

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Brass

Packaging Style:

Reel

Dimensions

Individual Part Weight:

0.127g

Overall Dimensions (L x W x D) in mm:

11.70 x 2.30 x 2.60 (contact only)

Availability

128,917 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 21080
Distributor Avnet Abacus
Location Europe
Quantity (Updated Daily) 20000
Distributor TTI Europe
Location Europe
Quantity (Updated Daily) 20000
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 18850
Distributor Farnell
Location Europe
Quantity (Updated Daily) 10000
Distributor Newark
Location USA
Quantity (Updated Daily) 10000
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 10000
Distributor Genalog
Location Europe
Quantity (Updated Daily) 9445
Distributor Anglia
Location Europe
Quantity (Updated Daily) 6000
Distributor Farnell
Location Europe
Quantity (Updated Daily) 3542

Questions & Answers Ask a Question

Once I crimp these contacts onto wire, what is the correct orientation in the housing?

The correct orientation for the crimp is with the crimped side facing towards the windows in the housing. The flat back of the crimp is against the side without the windows. If you need any further assistance, do please contact our Experts with further details of your problem.

Downloads

TECHNICAL DOCUMENTS

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

INSTRUCTION SHEETS
