M20-1160042

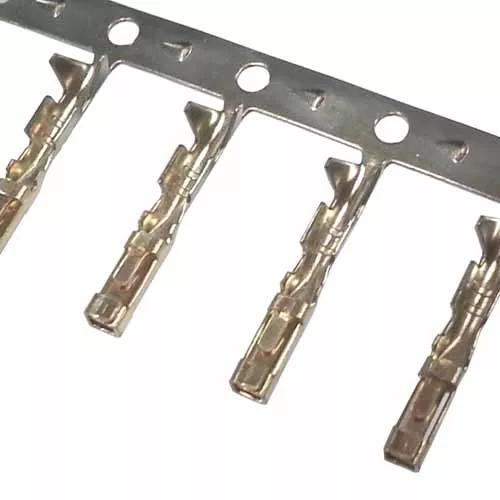

Female 22-30AWG Crimp Contact, reeled

2.54mm (0.1") Pitch PCB Connector - M20 Series

  • Female crimp contacts on reel – Gold finish contact area.
  • Suitable for cable conductor sizes from 22 to 30AWG.
  • Use with crimp housings M20-106 and M20-107 series.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Cable Conductor Size:

22-30AWG

Mating Pin Size:

0.64mm square

Current Rating:

3A per contact

Operating Temperature:

-40°C to +105°C

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Packaging Style:

Reel

Dimensions

Individual Part Weight:

0.124g

Overall Dimensions (L x W x D) in mm:

11.70 x 2.30 x 2.60 (contact only)

Availability

358,770 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Avnet Abacus
Location Europe
Quantity (Updated Daily) 120000
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 78450
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 65938
Distributor TTI Europe
Location Europe
Quantity (Updated Daily) 60000
Distributor Newark
Location USA
Quantity (Updated Daily) 10000
Distributor Newark
Location USA
Quantity (Updated Daily) 10000
Distributor Farnell
Location Europe
Quantity (Updated Daily) 9335
Distributor Genalog
Location Europe
Quantity (Updated Daily) 5047

Questions & Answers Ask a Question

Once I crimp these contacts onto wire, what is the correct orientation in the housing?

The correct orientation for the crimp is with the crimped side facing towards the windows in the housing. The flat back of the crimp is against the side without the windows. If you need any further assistance, do please contact our Experts with further details of your problem.
