KA1-4240000

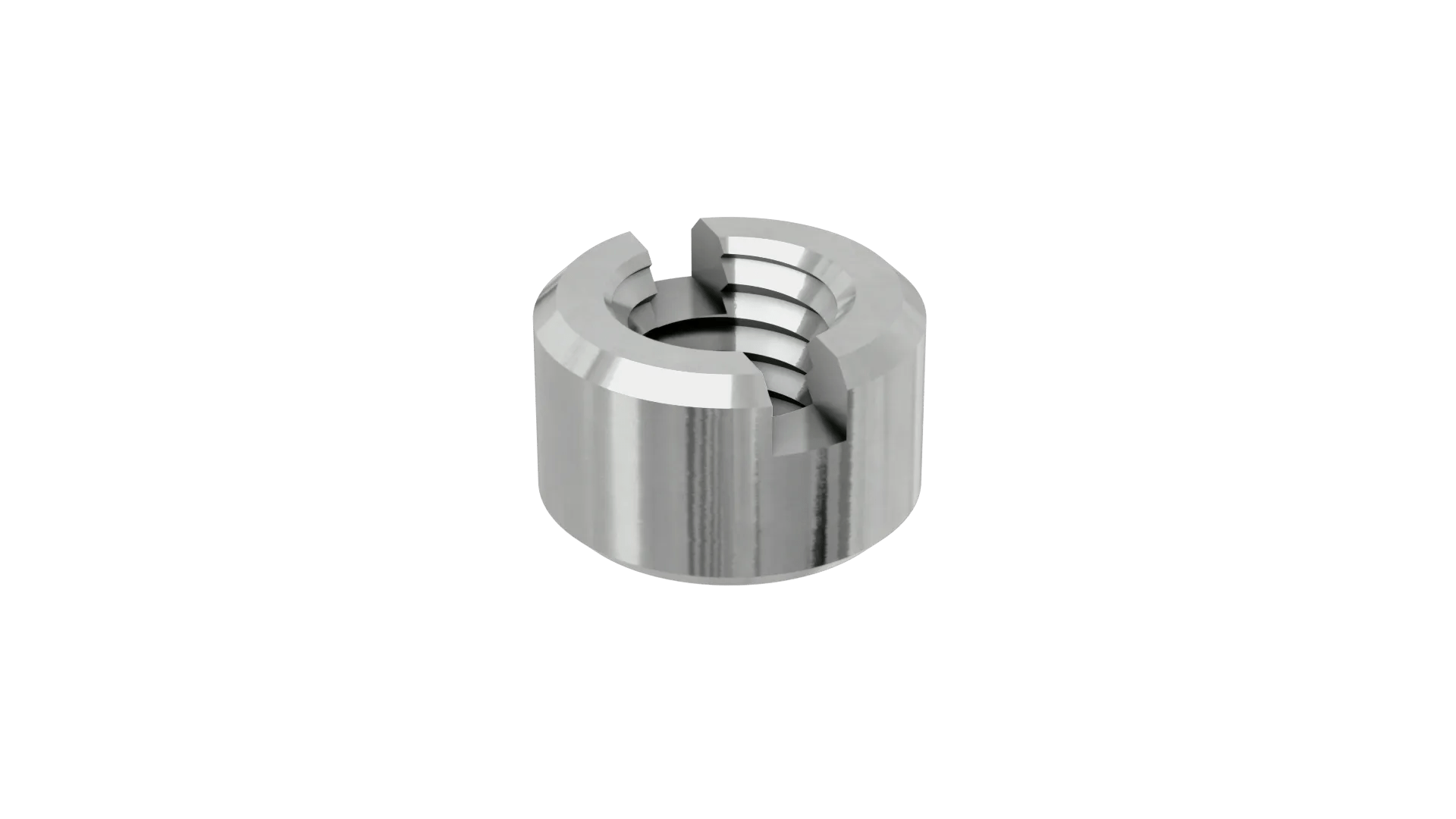

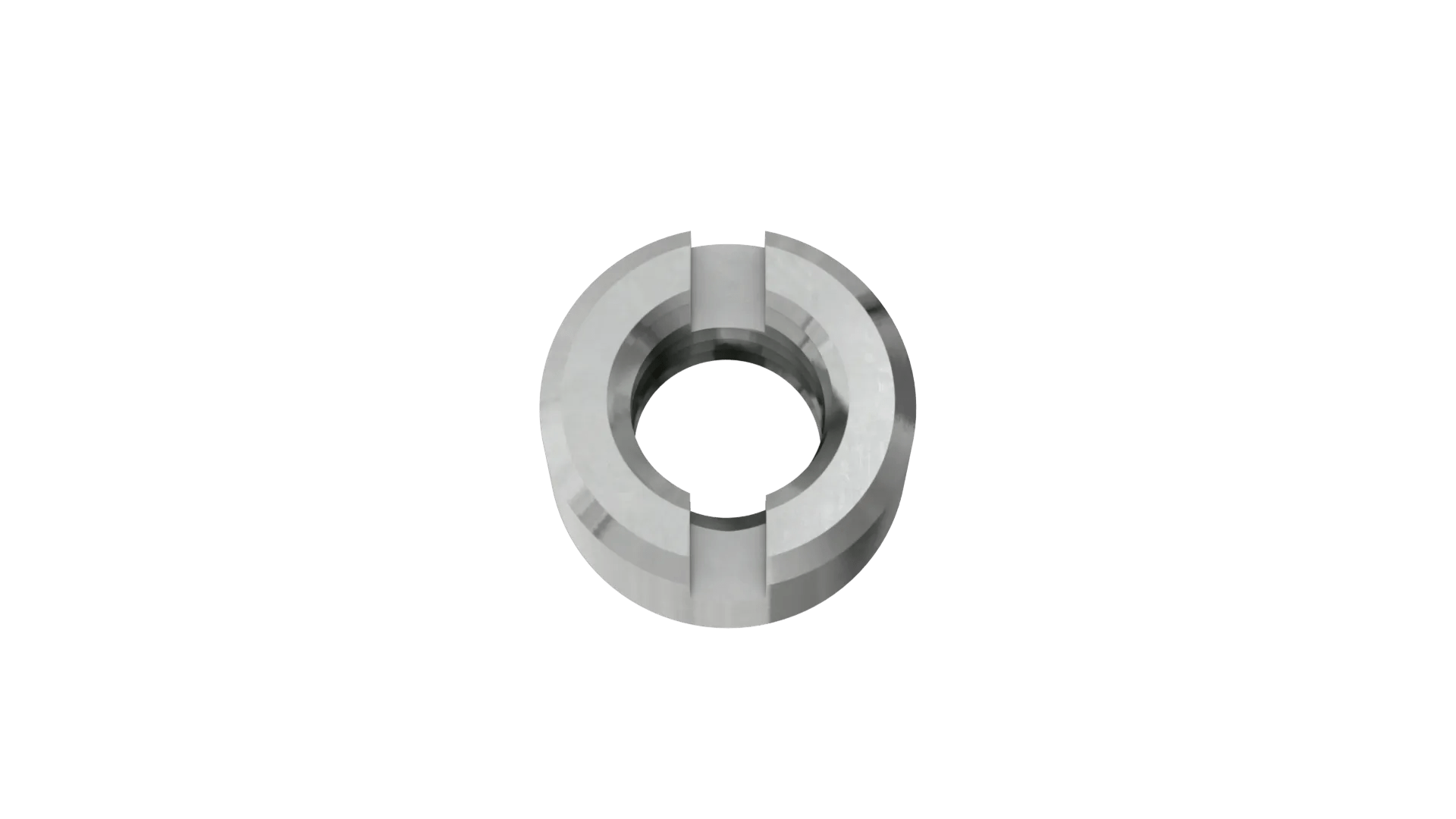

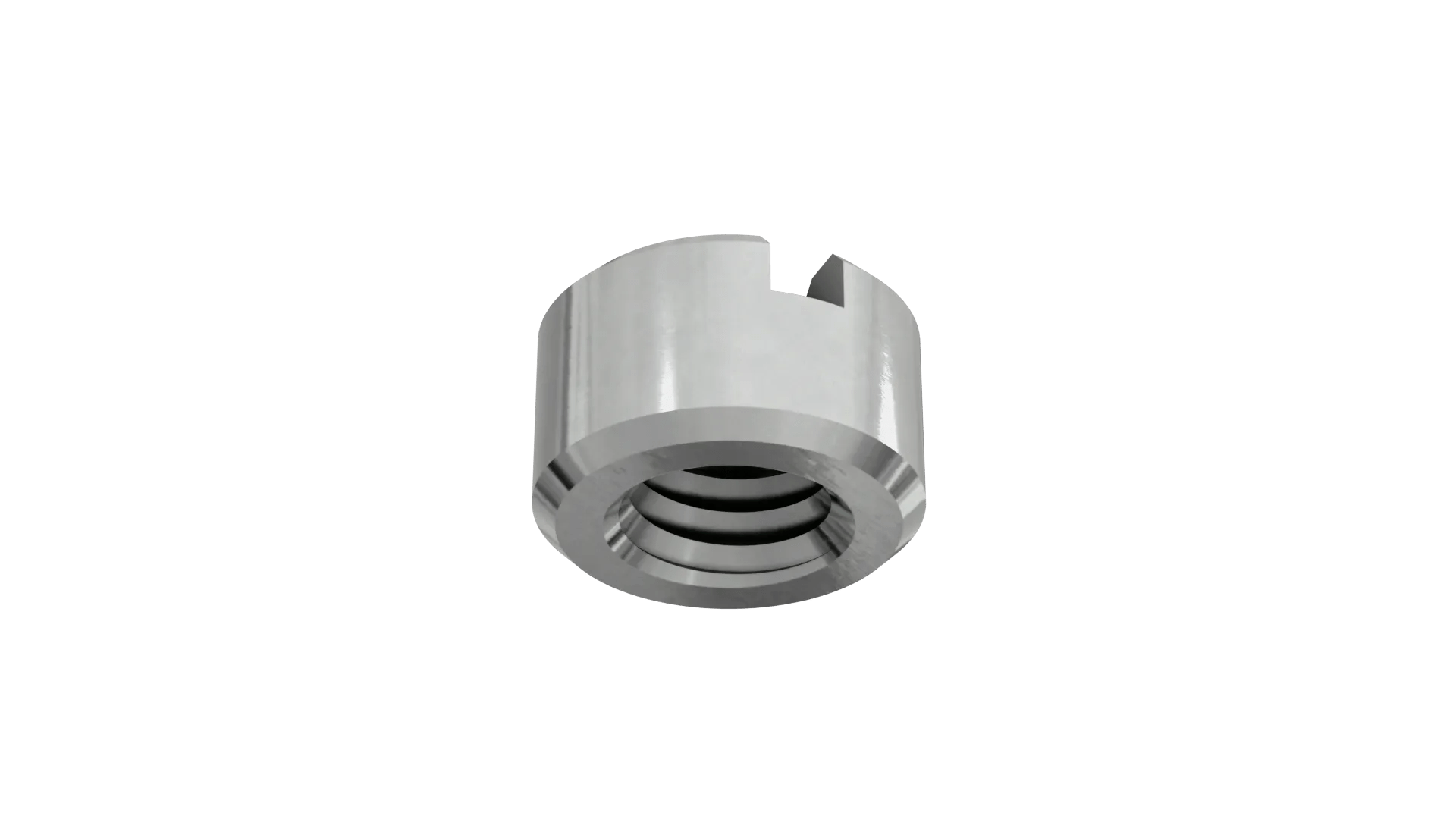

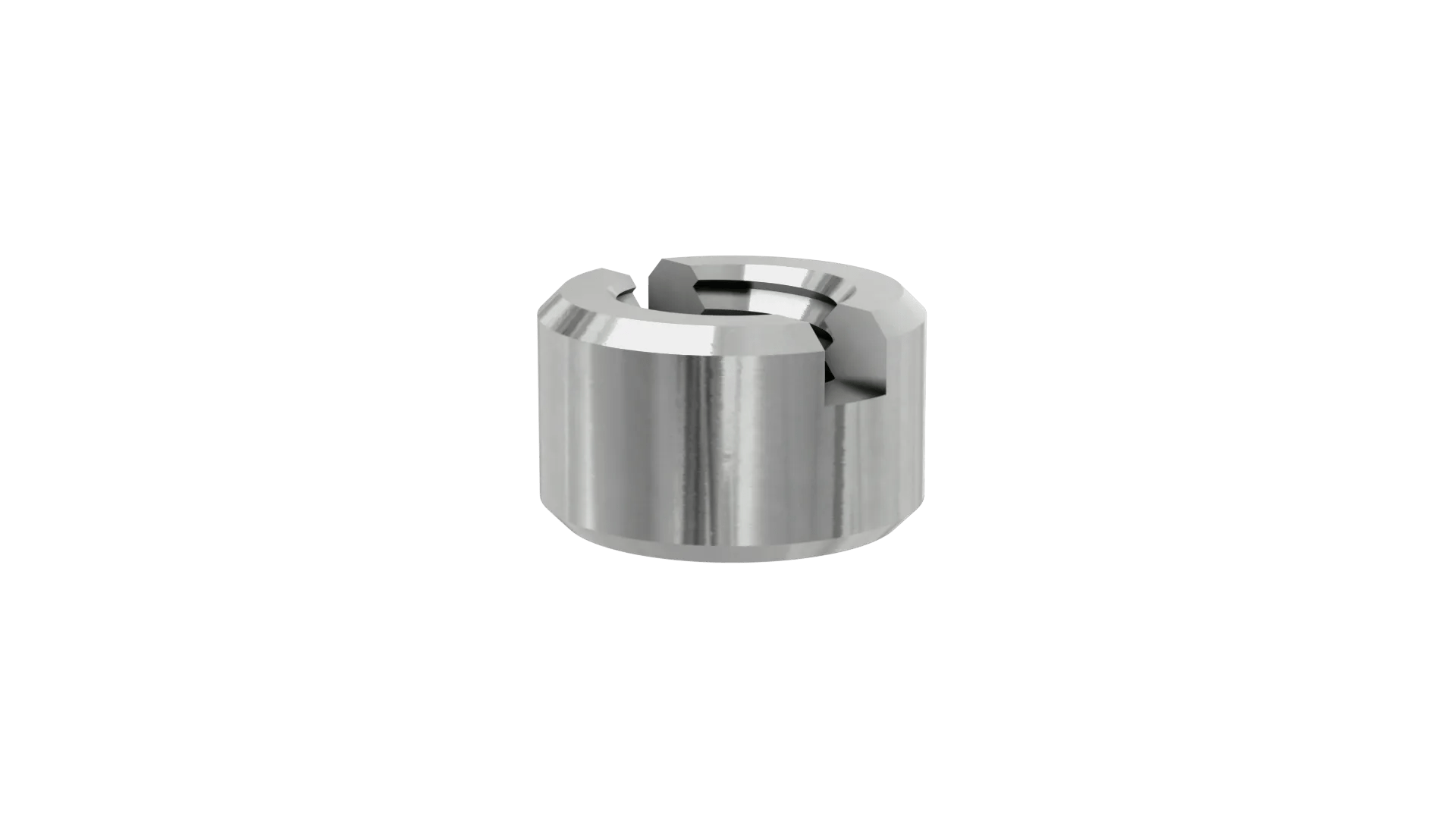

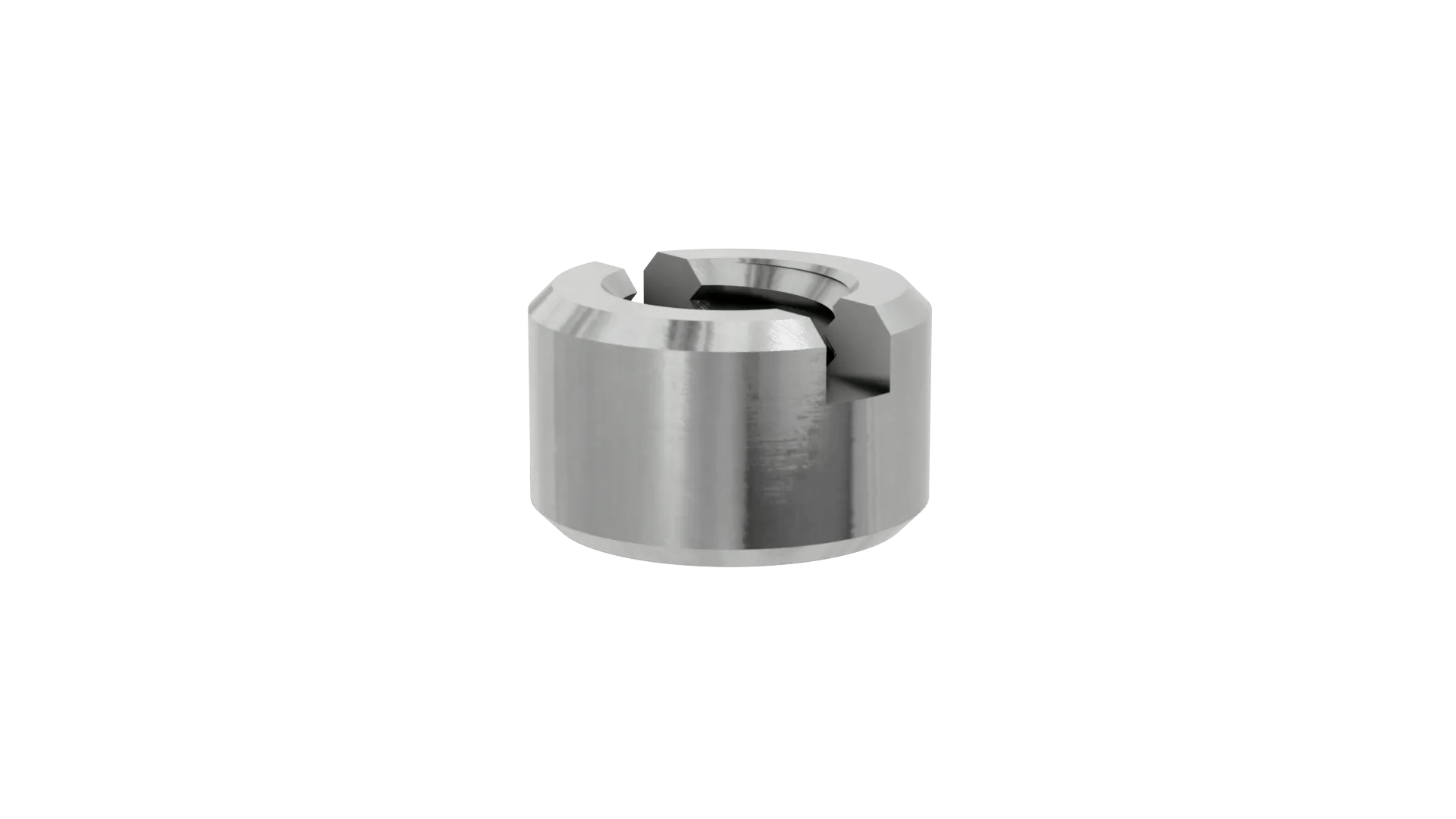

Panel Mount or Board Mount Jackscrew Nut

8.50mm Pitch High-Reliability Connector - Kona

  • Slotted Jackscrew nut, to use with studs for board-mount strain relief or panel mount fixing.
  • M3 thread size, for use with Kona connectors.
  • Slotted screwdriver available – see ZA1-9020000.
Add to Favorites

Technical Details

Specification

Operating Temperature:

-65°C to +150°C

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Base Material of Contact:

Stainless Steel

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.31g

Overall Dimensions (L x W x D) in mm:

3.00 x Ø5.00

Thread Size:

M3

Availability

7,000 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 500
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 500
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 400

Stock held by Harwin: contact distributor to purchase.

Distributor Harwin
Location Global
Quantity (Updated Daily) 5600

Questions & Answers Ask a Question

What torque value do you recommend for the jackscrews?

If you need to tighten your fixings to a torque setting for longer term installation, our recommendation is 22-25Ncm for both screw-locks and board/panel mount fixings. You can find this value stated in the Component Specification for Kona.

What torque value should be used for these screw-locks?

The torque value for board or panel mounting and for mating screw-locks is 22-25cmN. This value is given in the Component Specification C052xx (page 3).

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - KA1-424.pdf

ZIP

KA1-4240000 CAD Model (ZIP file containing STP and IGES)

Download
PDF

C052XX Component Specification - Kona KA1 Series (8.50mm pitch High-Reliability)

TEST REPORTS

PDF

Test Report HT076 - Kona (KA1 Series) - Electrical, Mechanical and Environmental

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (12-Feb-2021) including 211 SVHC (19-Jan-2021), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (12-Feb-2021) - includes all material legislations

PDF

Material composition for KA1-4240000 product

INSTRUCTION SHEETS

PDF

Product Training Module - Overview Guide to the Kona range, 8.5mm pitch Power High-Reliability

OTHER DOWNLOADS

PDF

Catalog page - Kona Male Vertical Throughboard

PDF

Catalog page - Kona Specification, Pin Numbering, Mating Profile

PDF

Catalog page - Kona Introduction

PDF

Product Summary - Kona High-Reliability Connectors

PDF

Plating thickness on Kona contacts
