KA1-3010298M1
2 Pos. Male SIL Cable Housing, Panel Mount
8.50mm Pitch High-Reliability Connector - Kona
Loading… Check availability
7 similar products View products
Traceparts account required
Product Description

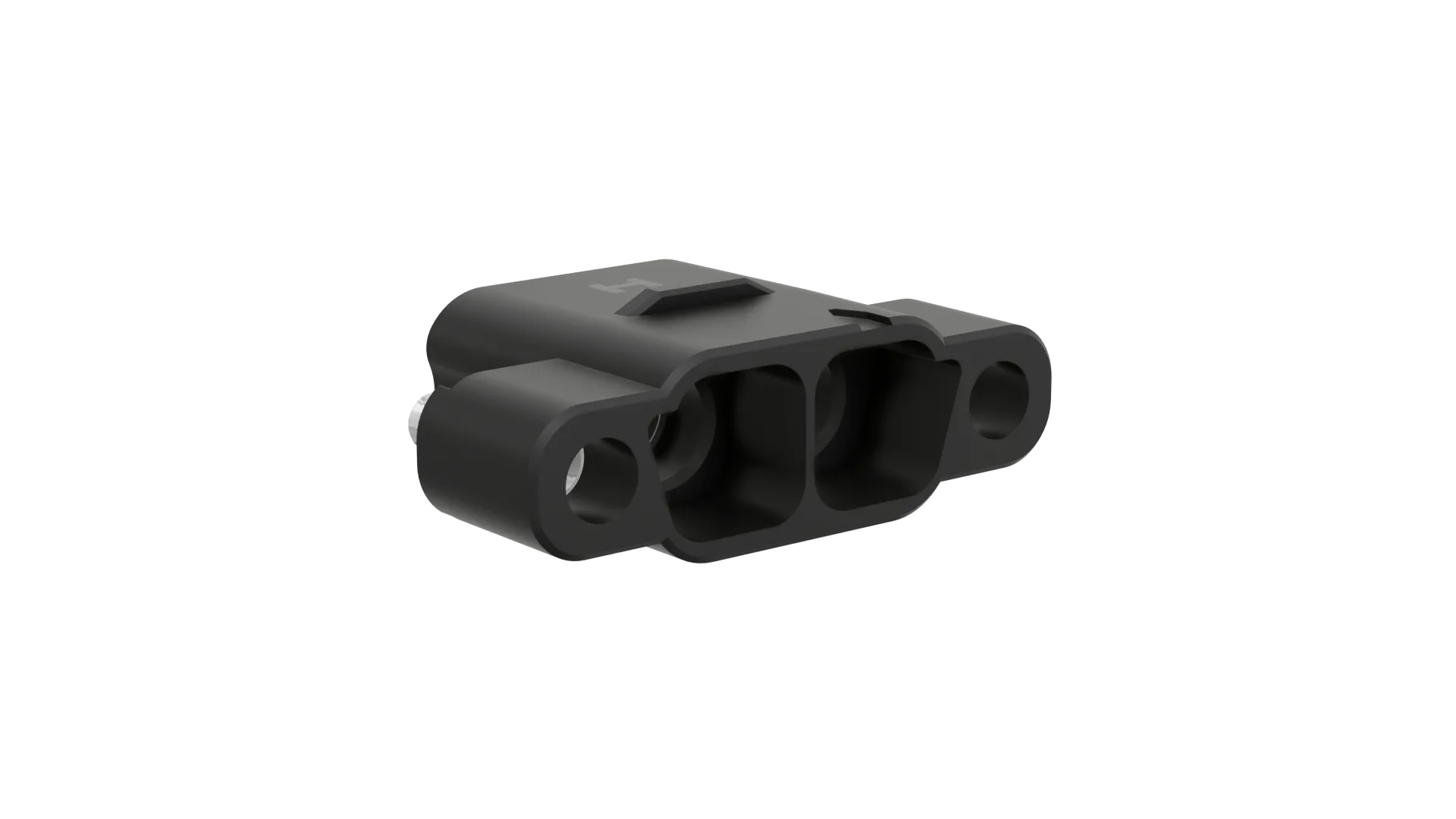

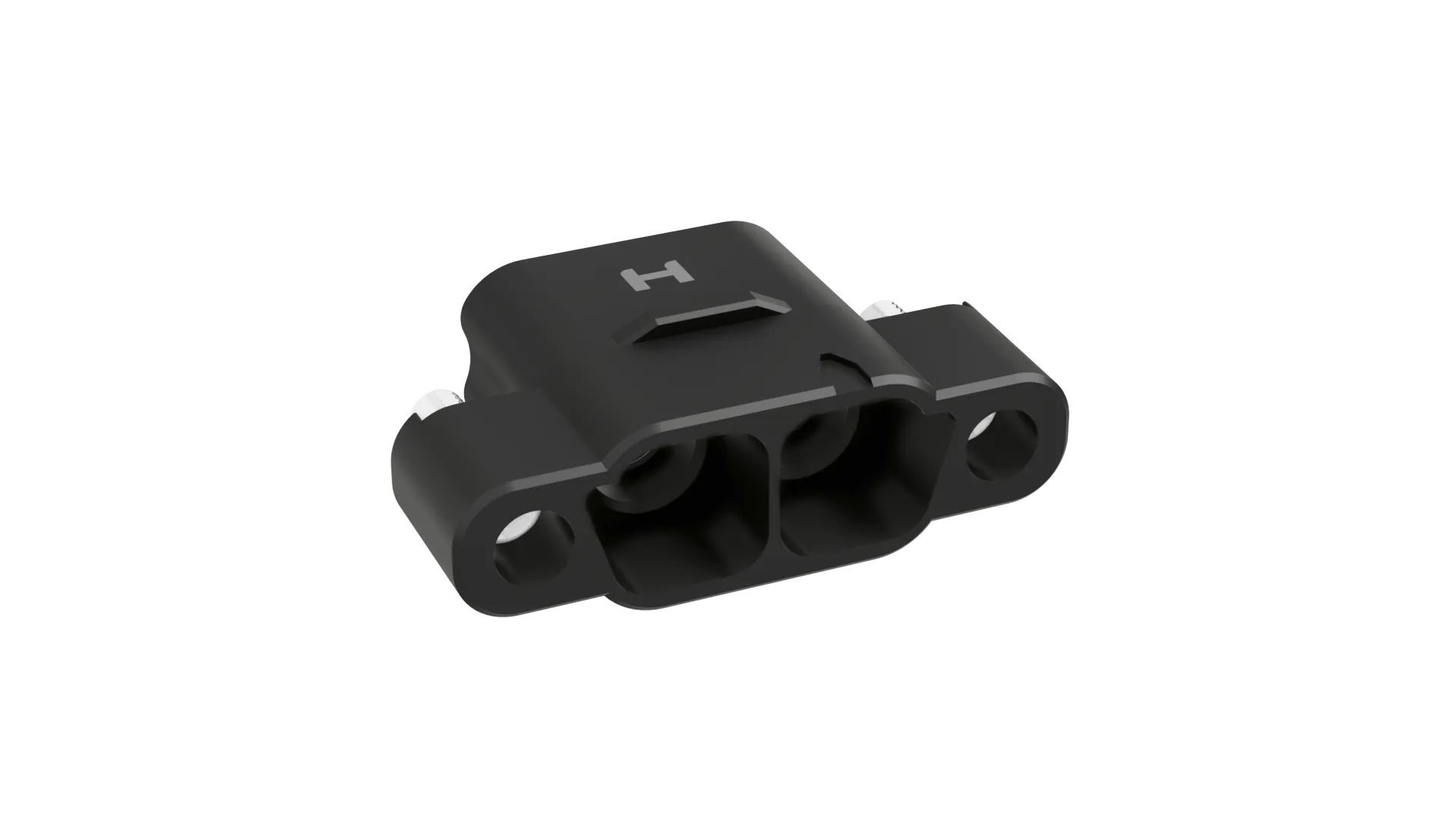

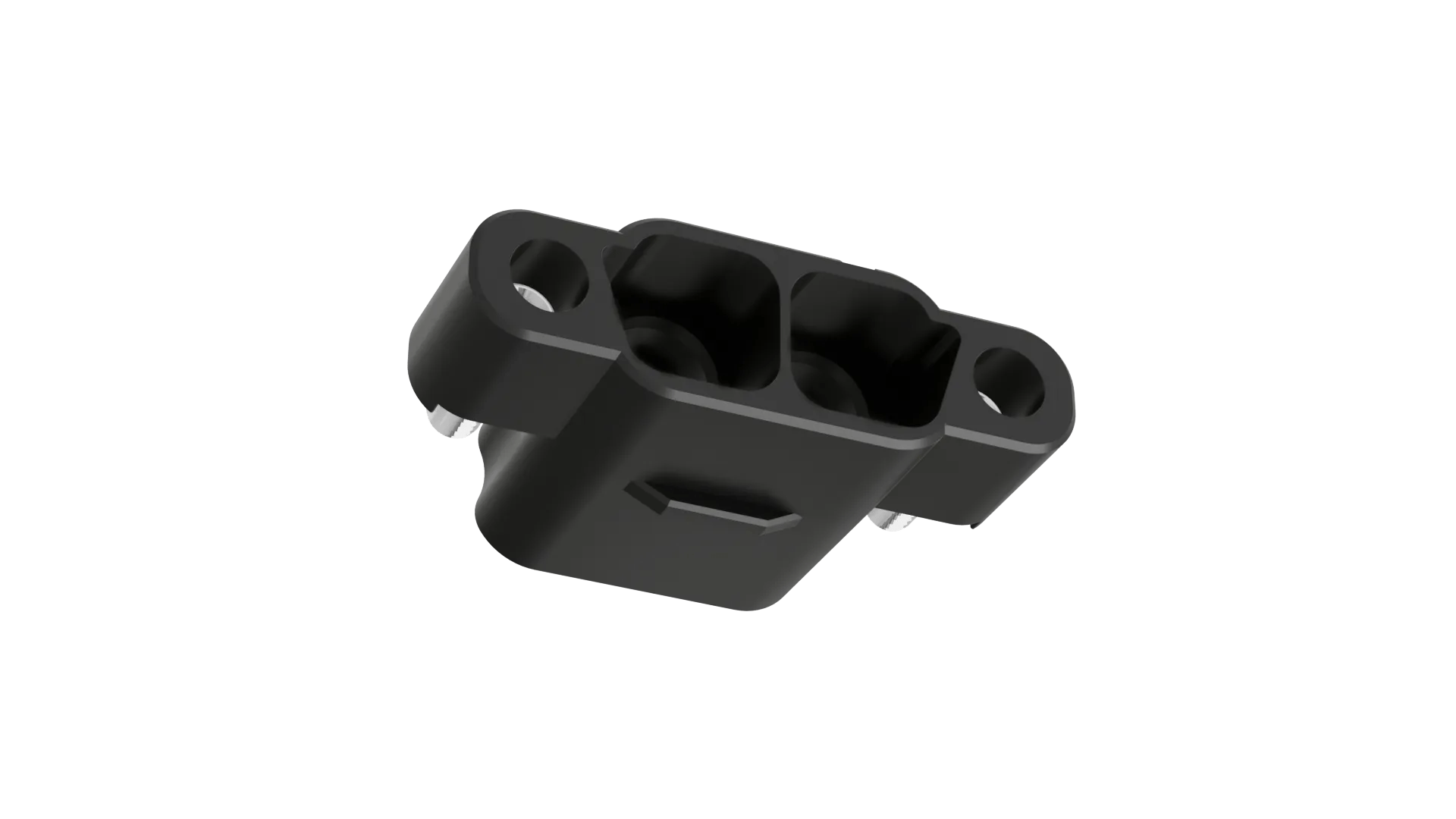

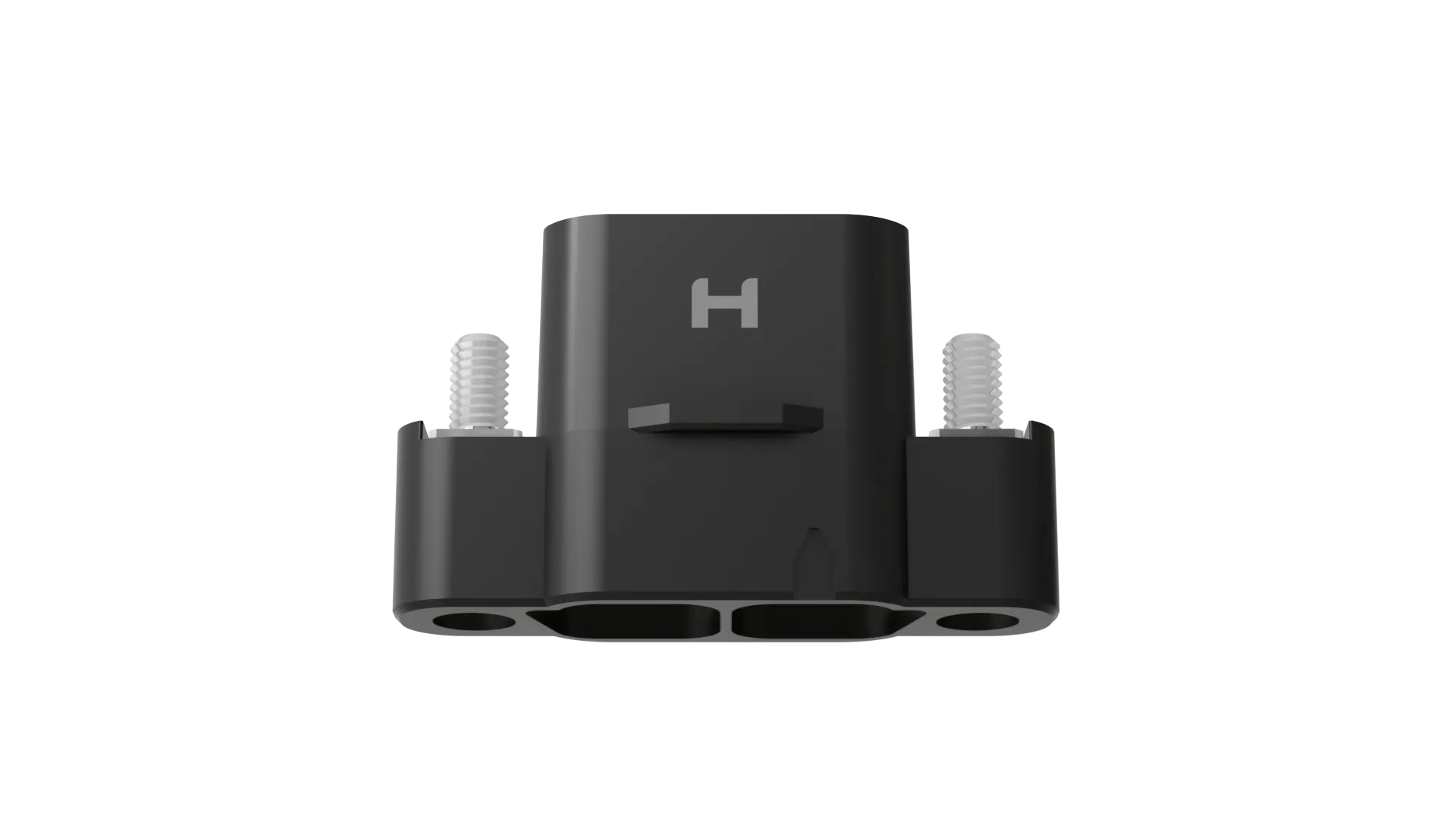

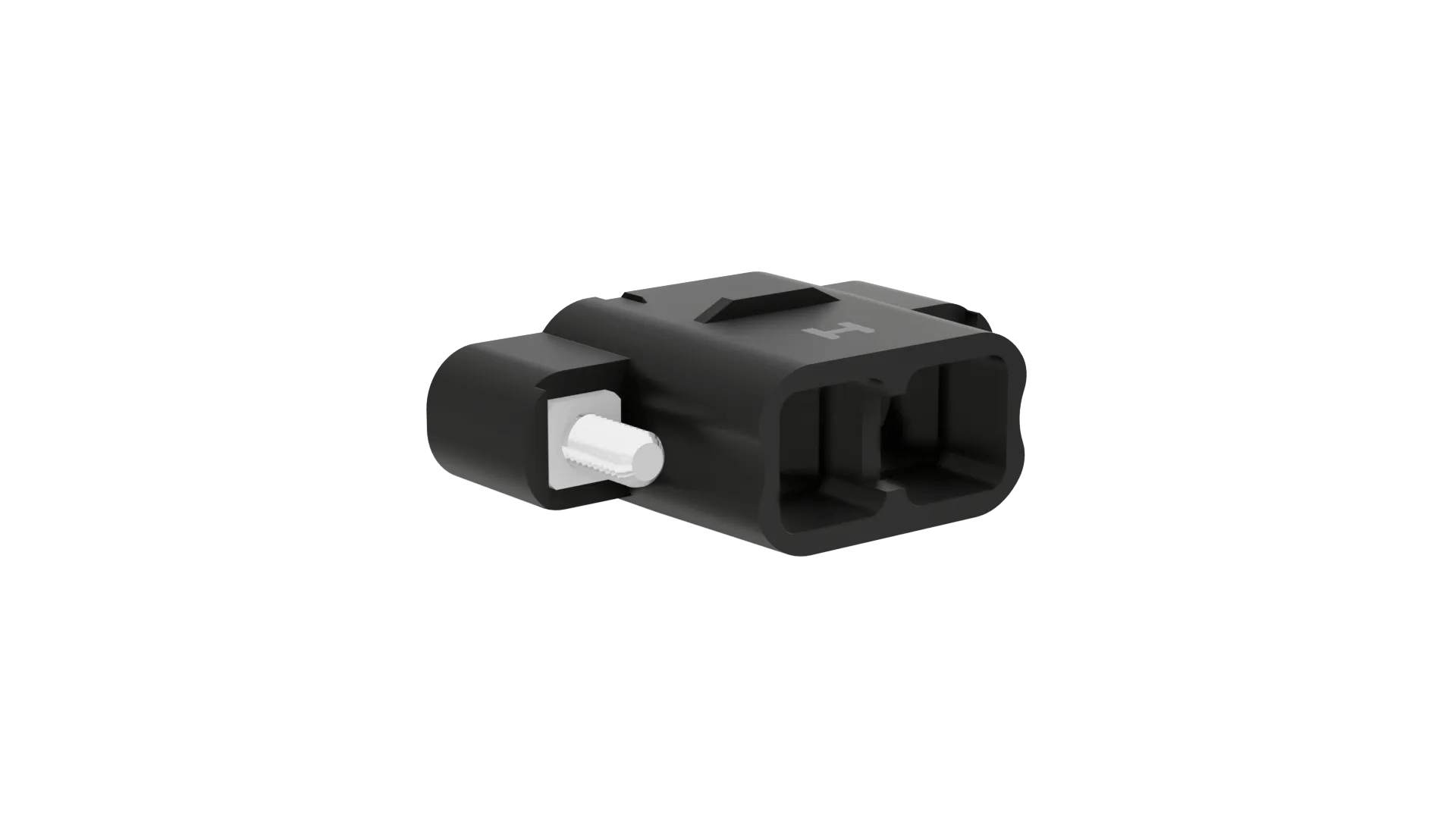

- Single Row Polarized Male Housing with individually shrouded recessed contact locations – 2 contact. Includes fitted screw-locks with 5.2mm front panel mount studs. Use Slotted Board Mount nut KA1-4240000 for front panel mounting.
- Contacts to be purchased separately – use with 8 AWG power solder contact KA1-1410005.
- For complete pin numbering or pin out information, see Component Specification C052XX.
Traceparts account required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
8.50mm (0.335")
Contact Gender:
Male/Plug
Connector Orientation:
Straight
Connection Type:
Cable (Solder)
Current Rating:
60A max per contact
Operating Temperature:
-65°C to +150°C
Style of Jackscrews:
Internal Thread Screw-Lock with Front Panel Mount Stud (Standard Gender)
Polarising Features:
Yes
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
1
Number of Signal Contacts:
2
Materials
Housing Material:
PPS
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Bulk/Loose
Dimensions
Individual Part Weight:
5.21g
Overall Dimensions (L x W x D) in mm:
33.00 x 12.50 x 19.65
Thread Size:
M3
Frequently Asked Questions Ask a Question
On the Kona series is the temperature rise shown in the test data the contact temperature rise or overall connector temperature rise?
In the Test Report Summary HT076, each connector tested is wired in series, as shown in the diagram and explained in section 3.2. This means the current passes through all contacts in each size connector tested, so the temperature rise will be for the whole connector. If you need any further assistance on this, please do contact one of our Experts.
Was this answer useful?
Are the board/panel mount nuts supplied with this connector, or do I have to order them separately?
No, these connectors are not supplied with the board/panel mount nuts – you will need to order them separately. The part number is KA1-4240000 for a slotted circular nut.
Was this answer useful?
What’s the derate curve for Kona connections?
You can find derate curves for the mated connectors in the Test Report HT076.
Was this answer useful?
What torque value do you recommend for the screw-locks?
If you need to tighten your fixings to a torque setting for longer term installation, our recommendation is 22-25Ncm for both screw-locks and board/panel mount fixings. You can find this value stated in the Component Specification for Kona.
Was this answer useful?
What tool do I need for assembling the contacts?
No tool is required for assembling the soldered contacts into the housing. We do supply an optional extraction tool if you need to remove a cable contact from the housing – see part ZA1-9040000.
Was this answer useful?
What is the pin numbering for a Kona connector?
Each housing is marked with a number 1 contact identifier in the plastic of the housing body. Once you find this, simply count along the row from that position.
Was this answer useful?
