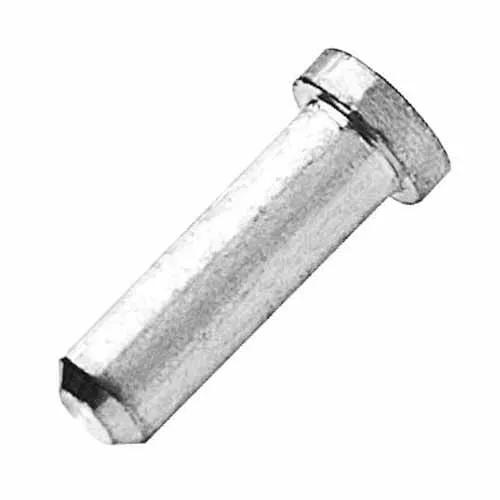

H3153-01
Female Vertical Throughboard Ø0.50mm Contact
Sockets - Individual Throughboard PCB Socket
In stock Check availability
6 similar products View products
Traceparts account required
Product Description
- Sub-miniature PC Board Socket for mating Ø0.5mm Pin – Gold finish on contact area, Tin finish on termination.
- Uses 4-finger Beryllium Copper contact clip from Datamate – Vibration 10-2,000Hz, 10G, 6 hours.
Traceparts account required
Technical Details
Specification
EU RoHS Status:
Contact Gender:
Female/Socket/Jack
Connector Orientation:
Vertical
Connection Type:
PC Tail / Throughboard
Mating Pin Size:
Ø0.5mm
Current Rating:
2A max at 25°C, 1.75A max at 85°C
Operating Temperature:
-55°C to +125°C
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Number of Signal Contacts:
1
Entry Style:
Top Entry
Materials
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Beryllium Copper contact clip, Brass shell
Packaging Style:
Bulk/Loose
Dimensions
Individual Part Weight:
0.013g
Overall Dimensions (L x W x D) in mm:
3.56 x Ø1.42
Height of Connector above PCB:
0.38mm
Length of Throughboard Tail:
3.18mm
Frequently Asked Questions Ask a Question
Why is there no voltage rating for this contact?
Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.
Was this answer useful?
Are these available in tape and reel?
Sorry, but our PCB turned sockets are not offered in a tape and reel format. To use them as part of an automated system, you would have to consider something like a vibratory bowl feed. Our SMT stamped contacts are available in tape and reel: SYCAMORE Contacts S9111-45R, S9121-45R, S9131-45R and S9141-45R, or our Twin-Beam SMT contacts S9091-46R and S9101-46R.
Was this answer useful?
