H2085-01

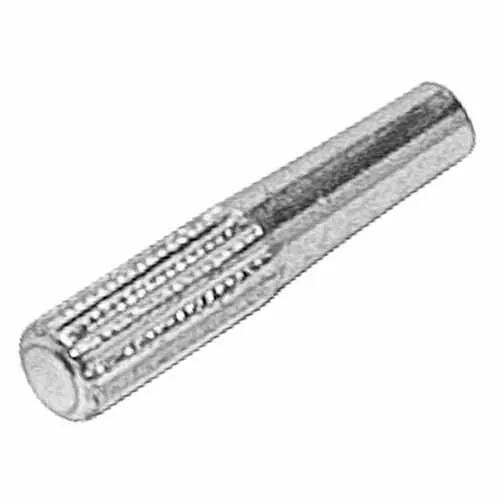

Vertical Throughboard Terminal Pin, Spline Pin

Hardware - Terminal Pin, Terminal Lug, Turret Lug

  • 7.14mm long, Ø1.43mm spline. Single ended, for 2.4mm panel thickness.
  • Bright 100% Tin finish.
  • Knurled for mechanical board retention. Product still requires soldering for electrical connection.
Add to Favorites

Technical Details

Specification

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Number of Signal Contacts:

1

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Brass

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.085g

Overall Dimensions (L x W x D) in mm:

7.14 x Ø1.43

Availability

3,884 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 2102
Distributor Genalog
Location Europe
Quantity (Updated Daily) 932
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 850

Questions & Answers Ask a Question

How do I assemble this knurled contact? Does it need soldering as well?

The knurl on the contact is for additional mechanical retention only – it will need soldering for a true gas-tight joint. The contact is simply pressed into the PCB, with a bench press or similar.

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.

Downloads

TECHNICAL DOCUMENTS

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with Exemption 6c
