Home > H2051-01
Active

H2051-01

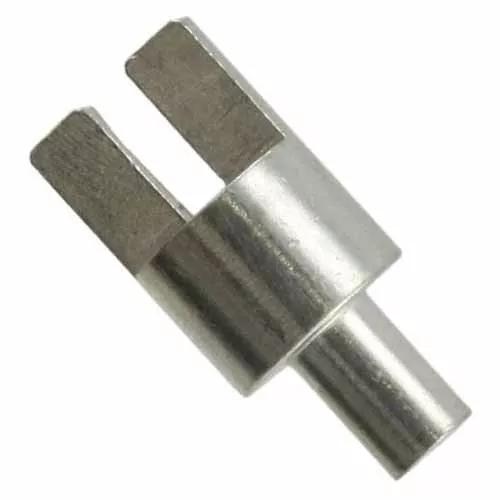

Vertical Throughboard Slotted Lug

Hardware - Terminal Pin, Terminal Lug, Turret Lug

  • For 1.6mm panel thickness.
  • Swage for additional mechanical retention.
  • Product still requires soldering for electrical connection.
Add to Favorites

Technical Details

Specification

Contact Gender:

Slotted

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Signal Contacts:

1

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Brass

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.217g

Overall Dimensions (L x W x D) in mm:

7.11 x Ø3.18

Height of Connector above PCB:

4.78mm

Length of Throughboard Tail:

2.33.00mm

Availability

Popular product
Distributor Location Quantity
Digi-Key
Global
Status2820
Farnell
Europe
Status662
Harwin
Global
Status12000
Mouser Electronics Inc
Global
Status2757
Newark
USA
Status662

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - H2051.pdf

ZIP

H2051-xx CAD Model (ZIP file containing STP)

Download

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF

REACH Harwin statement (6-Jul-2020) including 209 SVHC (25-Jun-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

PDF

Material composition for H2051 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview of the Hardware products (Spacers, Terminals, Shorting Links)

PDF

IS-35 - Punch and Die Tools Instruction Sheet

OTHER DOWNLOADS

PDF

Catalog page - Turned Terminals
