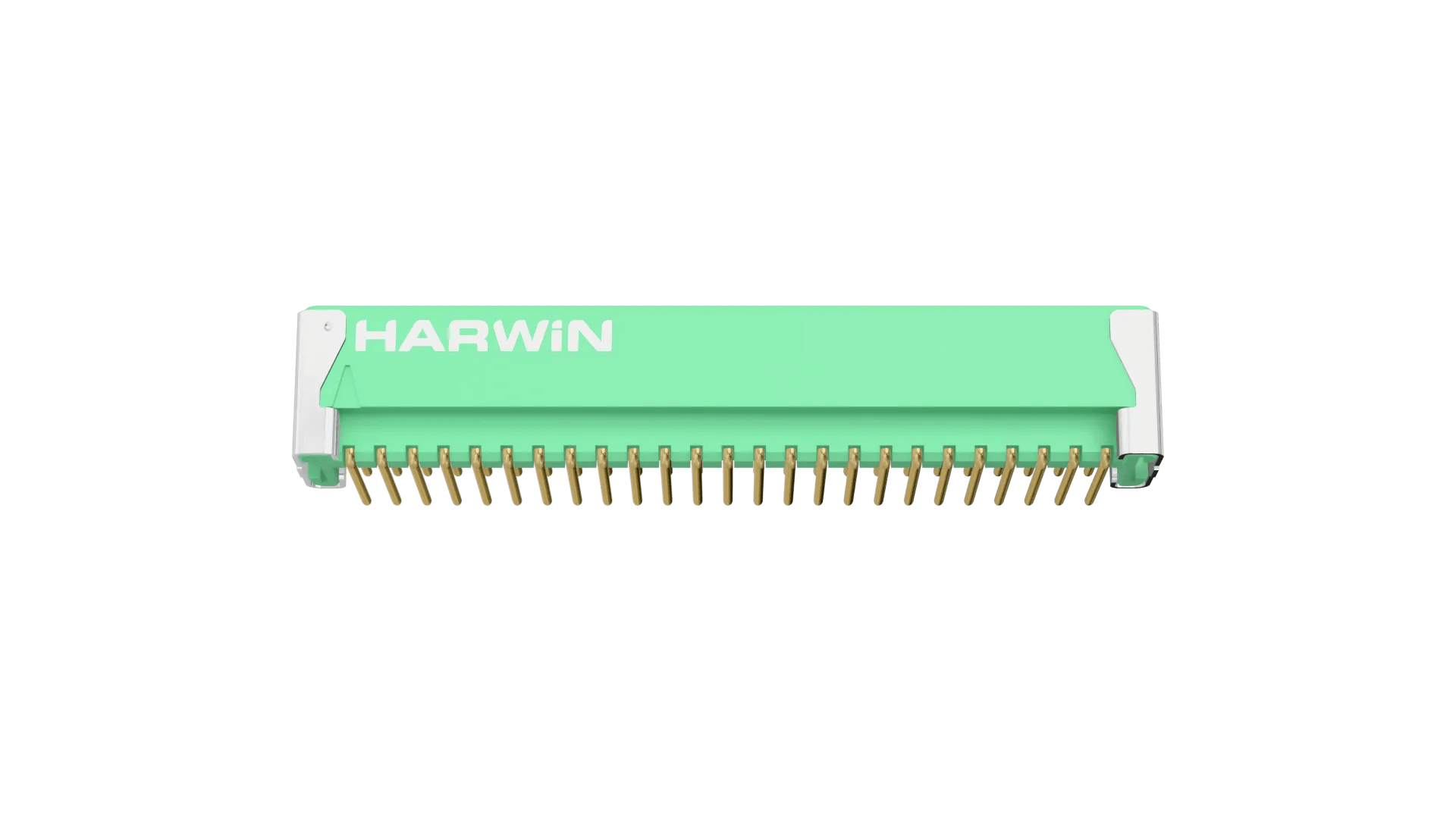

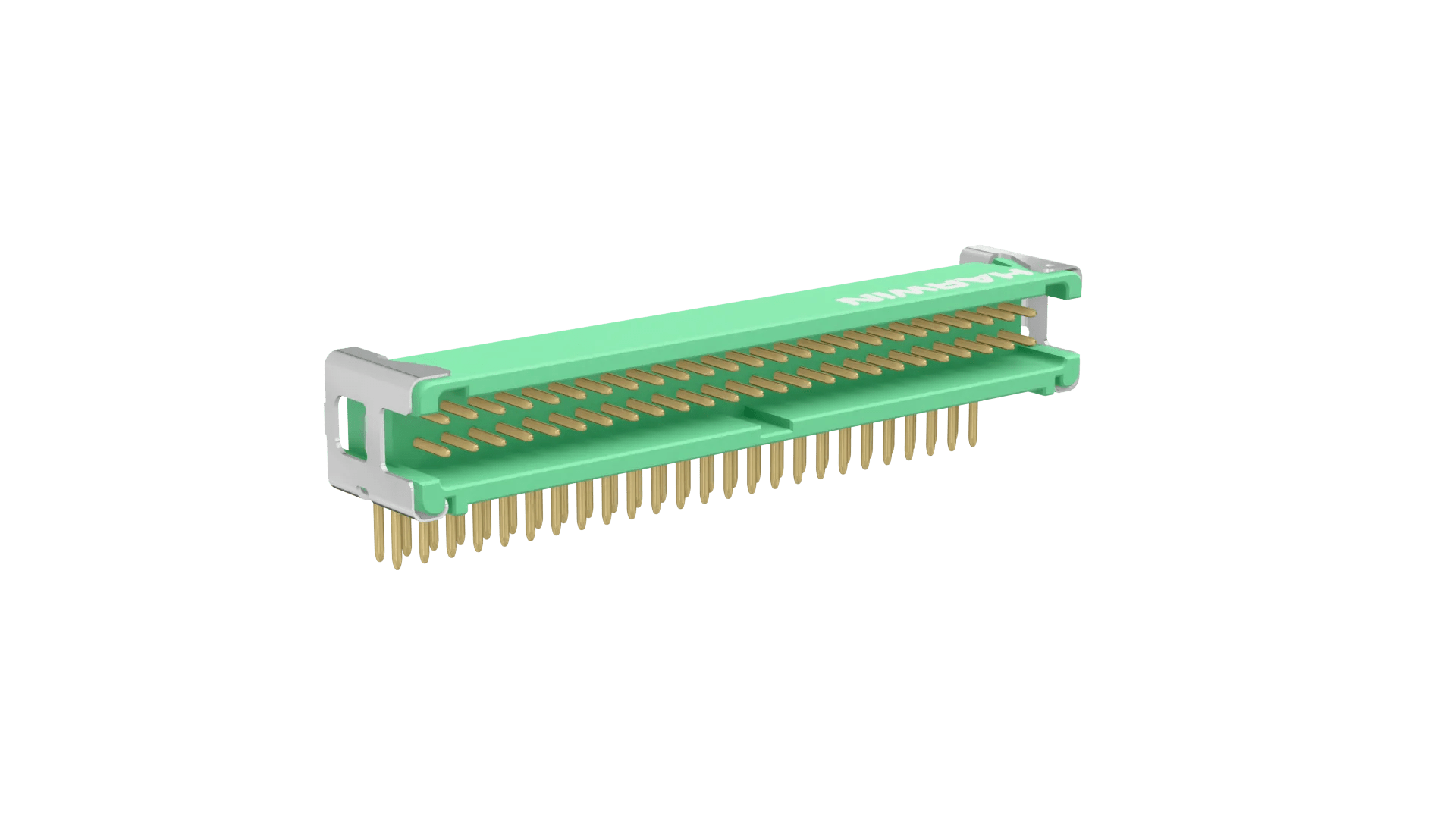

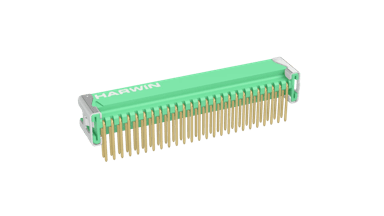

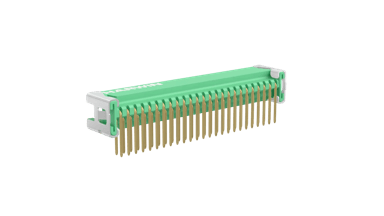

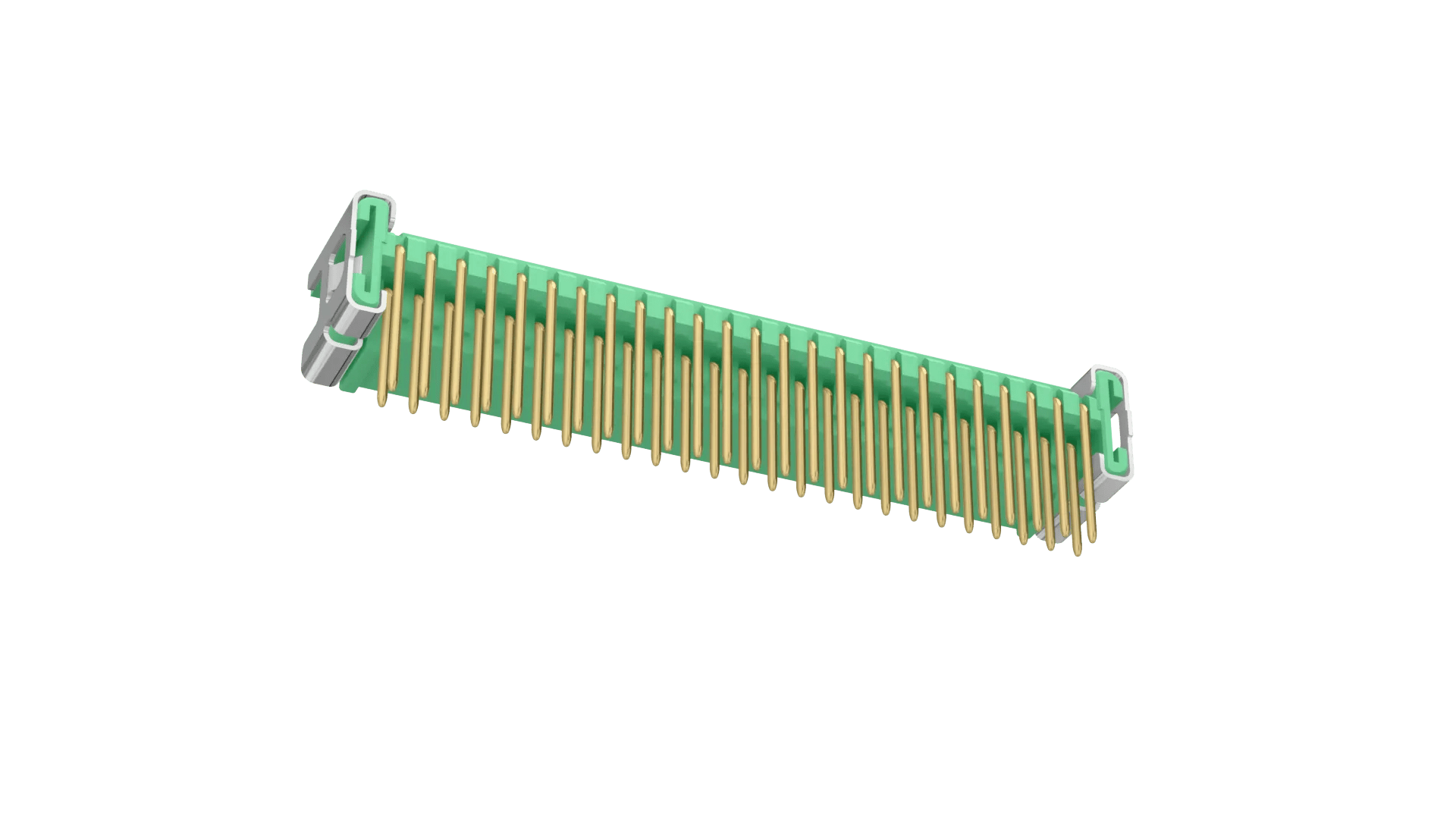

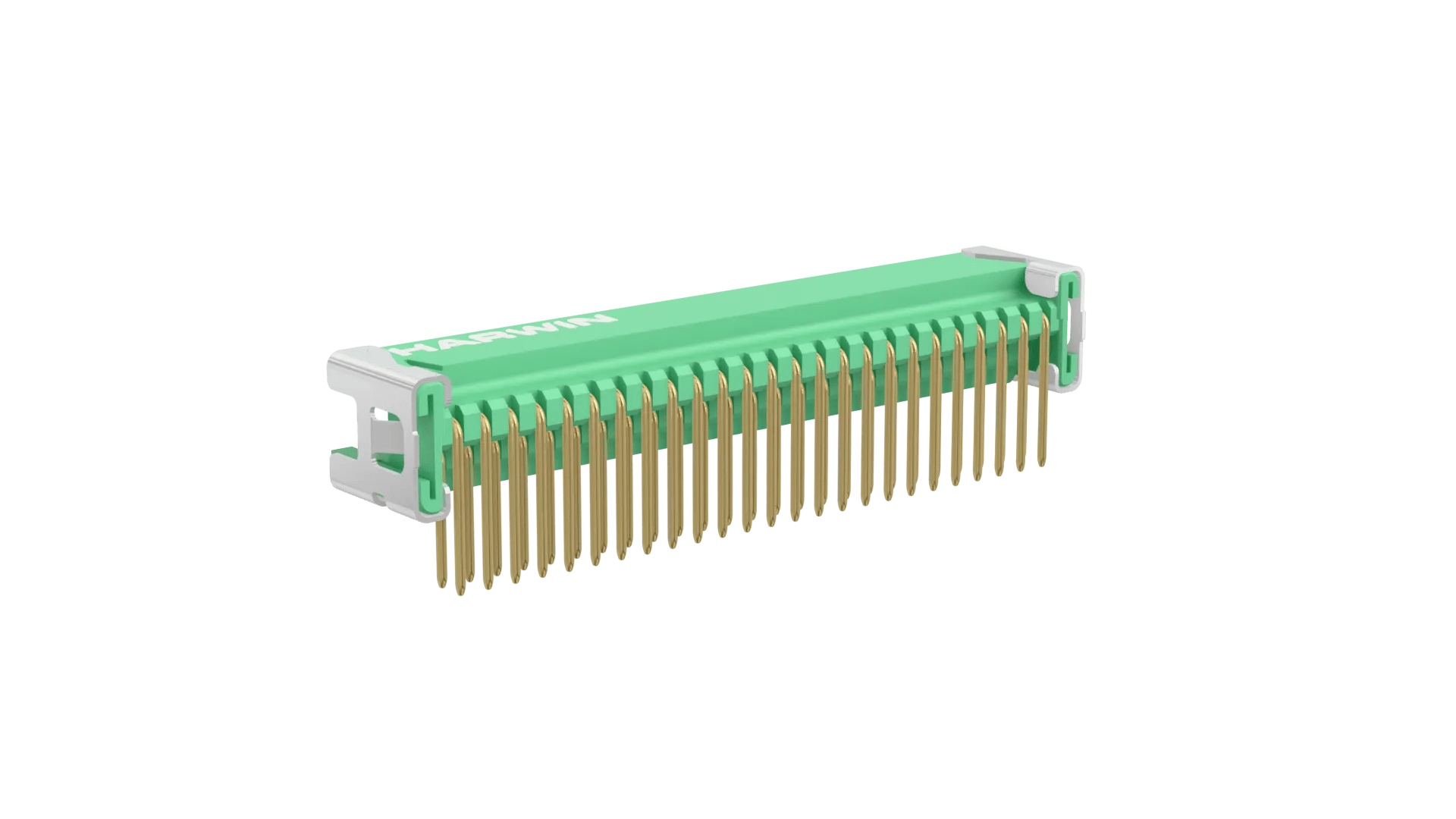

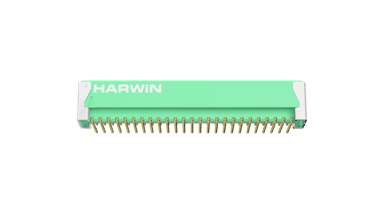

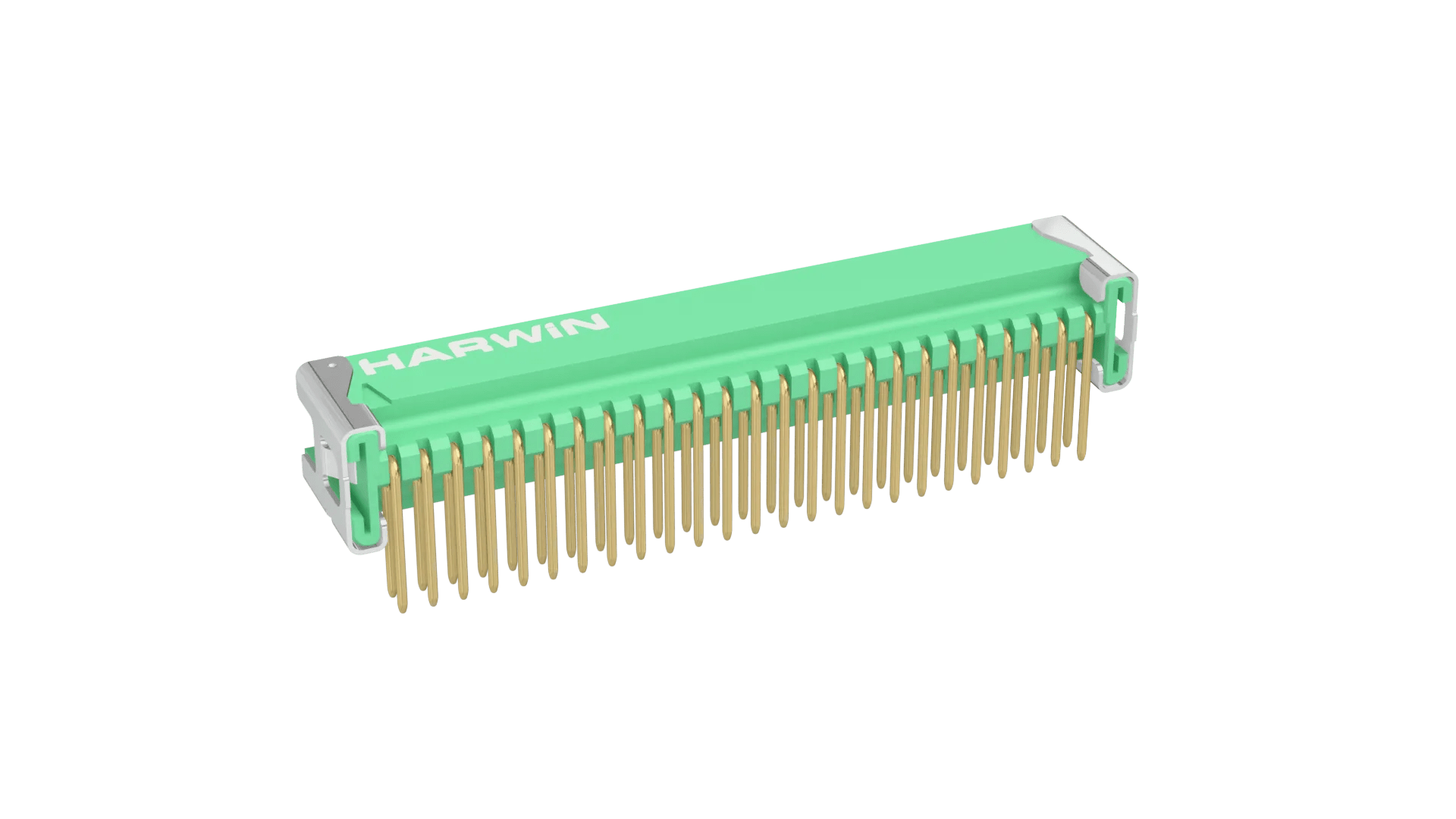

G125-MH15005L7P

25+25 Pos. Male DIL Horizontal Throughboard Conn. no Latches

1.25mm Pitch High-Reliability Connector - Gecko with Latches

  • Double Row male 3.3mm PC Tail connector, Surface Mount fixings (no latches) – 50 contacts (25+25). Surface Mount hold-down areas give additional strain relief when soldered to the PCB.
  • Supplied in tape strips. Fixing can also be used when no board fixing is required. Gold finish on contact area and termination.
  • For complete pin numbering or pin out information, see Component Specification C125XX.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Male/Plug

Connector Orientation:

Horizontal

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.4mm

Current Rating:

2.8A max individual contact, 2A max simultaneous (25°C)

Operating Temperature:

-65°C to +150°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Latches:

Locking Latch

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

50

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel Strip

Dimensions

Individual Part Weight:

1.468g

Overall Dimensions (L x W x D) in mm:

34.30 x 6.35 x 8.80

Height of Connector above PCB:

5.50mm

Length of Throughboard Tail:

3.30mm
