G125-FC32605L0-0150L

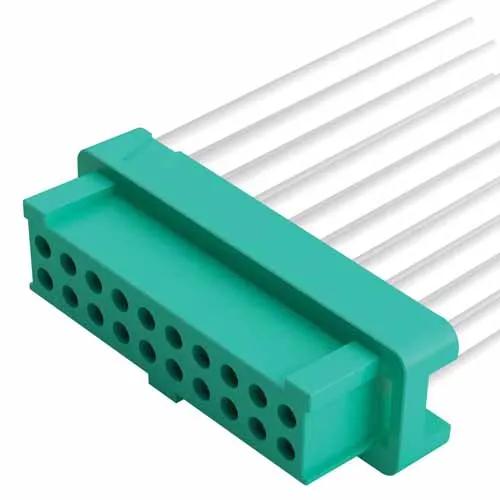

13+13 Pos. Female DIL 30AWG Cable Assembly, 150mm, single-end, for Latches

1.25mm Pitch High-Reliability Connector - Gecko with Latches

  • Female Single-Ended with white 30 AWG cable, 150mm long – 26 contacts (13+13). Compatible housing style for male connectors with latches.
  • Manufactured with G125-0020005 crimp contacts, G125-2042696L0 Double Row crimp housing. Gold finish on contact area.
  • For complete pin numbering or pin out information, see Component Specification C125XX.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable Assembly

Cable Conductor Size:

30AWG

Mating Pin Size:

Ø0.4mm

Current Rating:

2.8A max individual contact, 2A max simultaneous (25°C)

Operating Temperature:

-65°C to +150°C

Style of Latches:

Compatible with latches

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

26

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

5.429g

Overall Dimensions (L x W x D) in mm:

150.00 x 18.80 x 4.90

Availability

Info Circle

Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Currently made to order*

* Please request minimum quantities, lead times and pricing from an authorized distributor.

Questions & Answers Ask a Question

What is the process or technician training certification ensured for pre-crimped and wired connectors?

Our operators assembling all our cable assemblies are trained and certified to IPC-A-620 requirements, as well as our own specific tooling instructions for the products involved.

Do you have a tool to help separate this connector when it is latched to the mating half?

The tool you need is the Z125-9262600 – this will help push in the two latch buttons when the connectors are engaged, so you can then separate the mated connectors. Consult the training video for more information on using this tool. It is also possible to push in the two buttons by hand as well, if you have good access.
