Home > G125-FC11005L0-0920F
Active Product

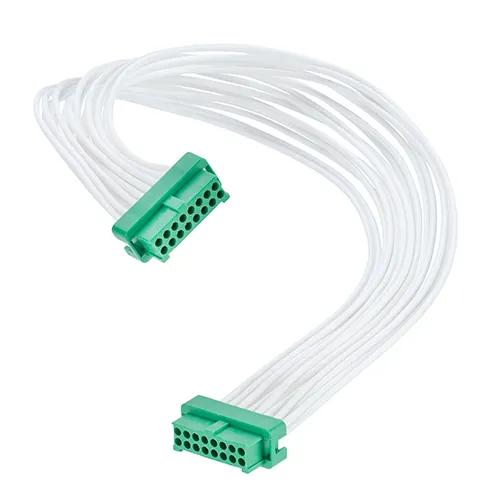

G125-FC11005L0-0920F

5+5 Pos. Female DIL 26 AWG Cable Assembly, 920mm, double-end, for Latches

1.25mm Pitch High-Reliability Connector - Gecko with Latches

Add to Favorites

Loading…   Check availability

9 similar products View products

Traceparts account required

Product Description

  • Female-to-Female with white 26 AWG cable, 920mm long – 10 contacts (5+5). Compatible housing style for male connectors with latches.
  • Manufactured with G125-0010005 crimp contacts, G125-2041096L0 Double Row crimp housings. Gold finish on contact area.
  • For complete pin numbering or pin out information, see Component Specification C125XX.

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable Assembly

Cable Conductor Size:

26 AWG

Mating Pin Size:

Ø0.4mm

Current Rating:

2.8A max individual contact, 2A max simultaneous (25°C)

Operating Temperature:

-65°C to +150°C

Style of Latches:

Compatible with latches

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

10

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

18.703g

Overall Dimensions (L x W x D) in mm:

920.00 x 8.80 x 4.90

Frequently Asked Questions Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

TEST REPORTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF Download

INSTRUCTION SHEETS

OTHER DOWNLOADS
