G125-324169600

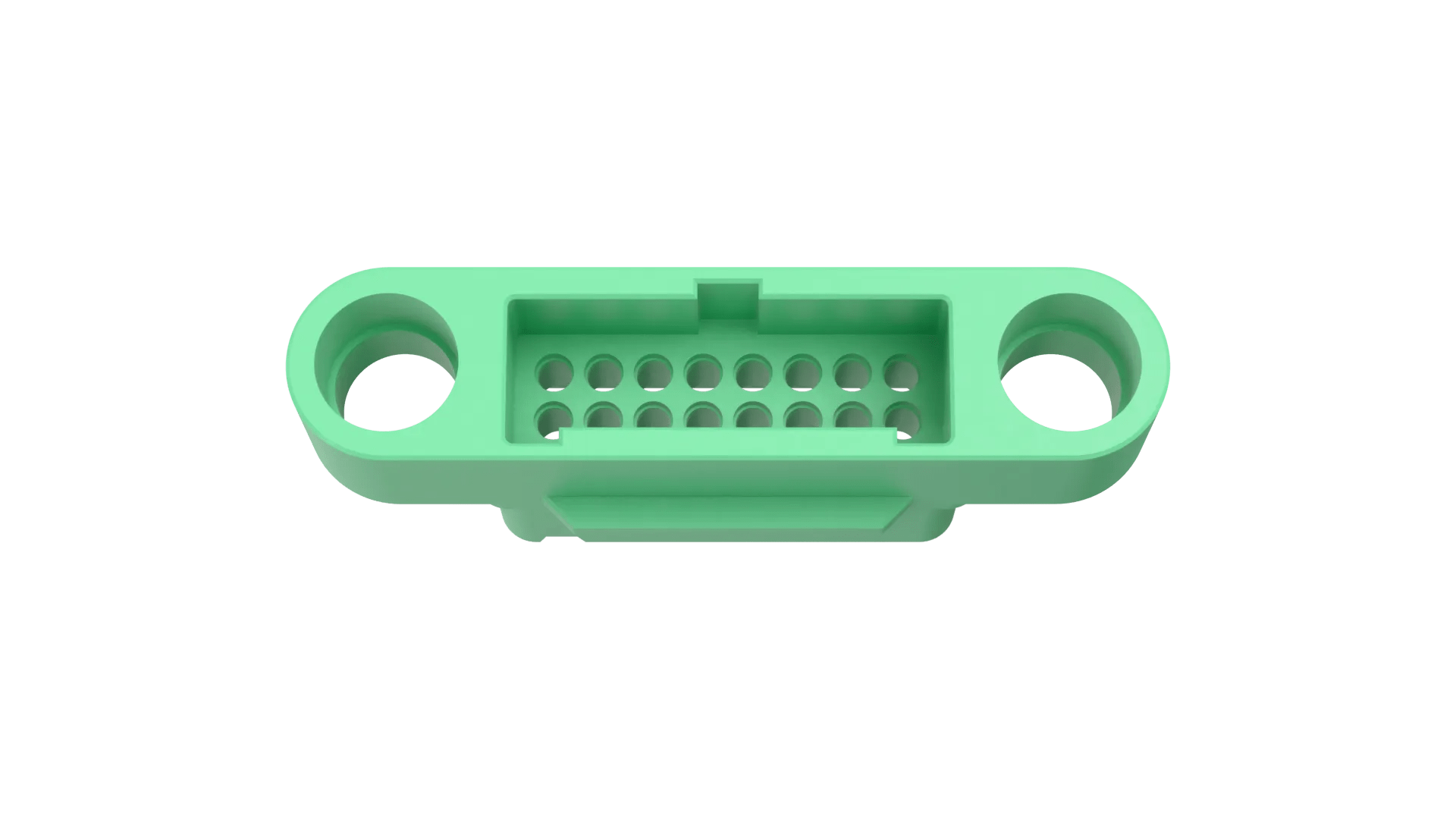

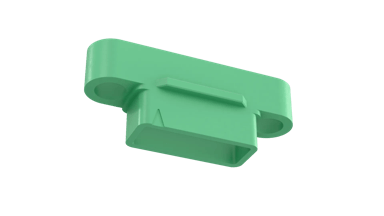

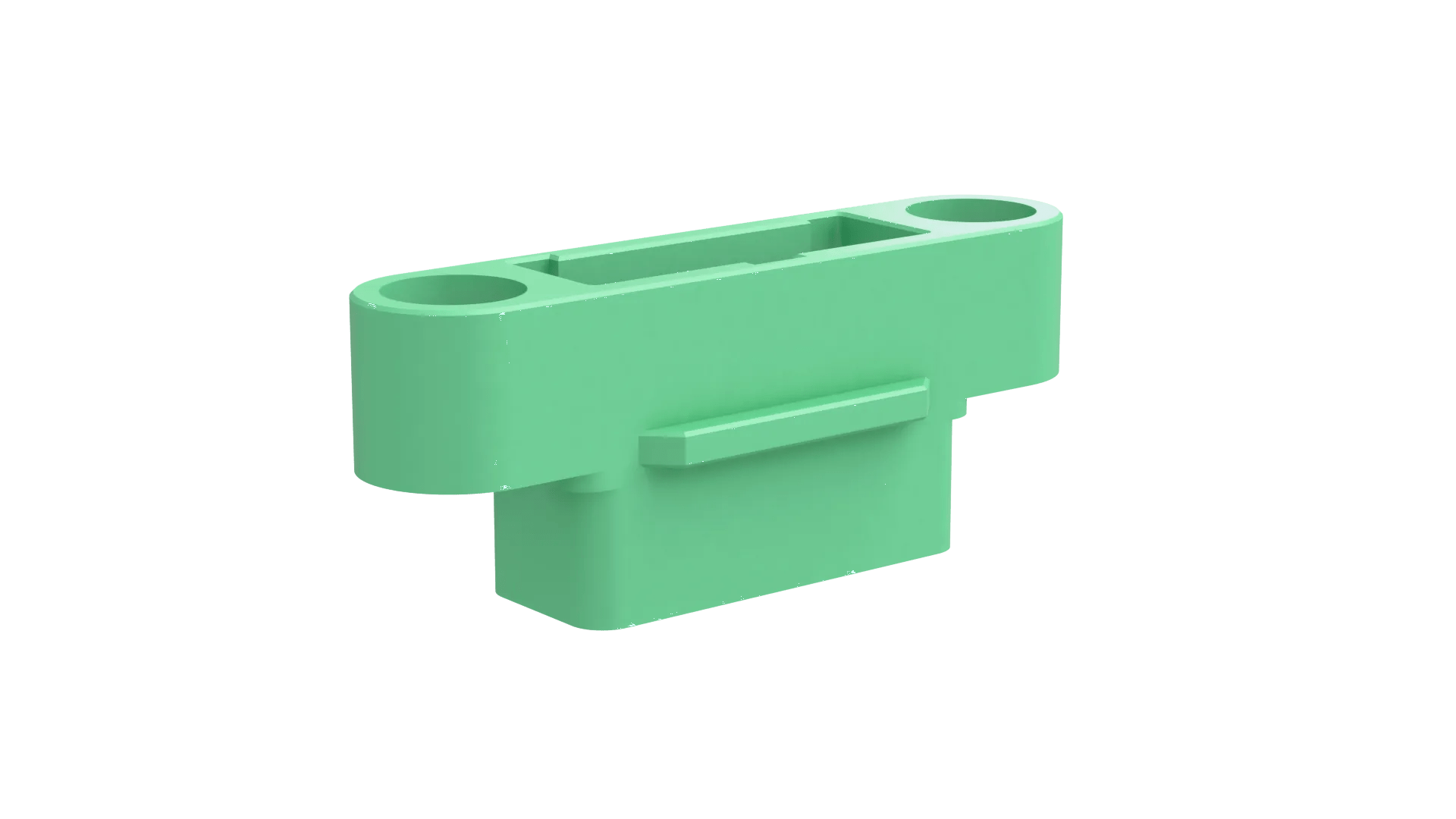

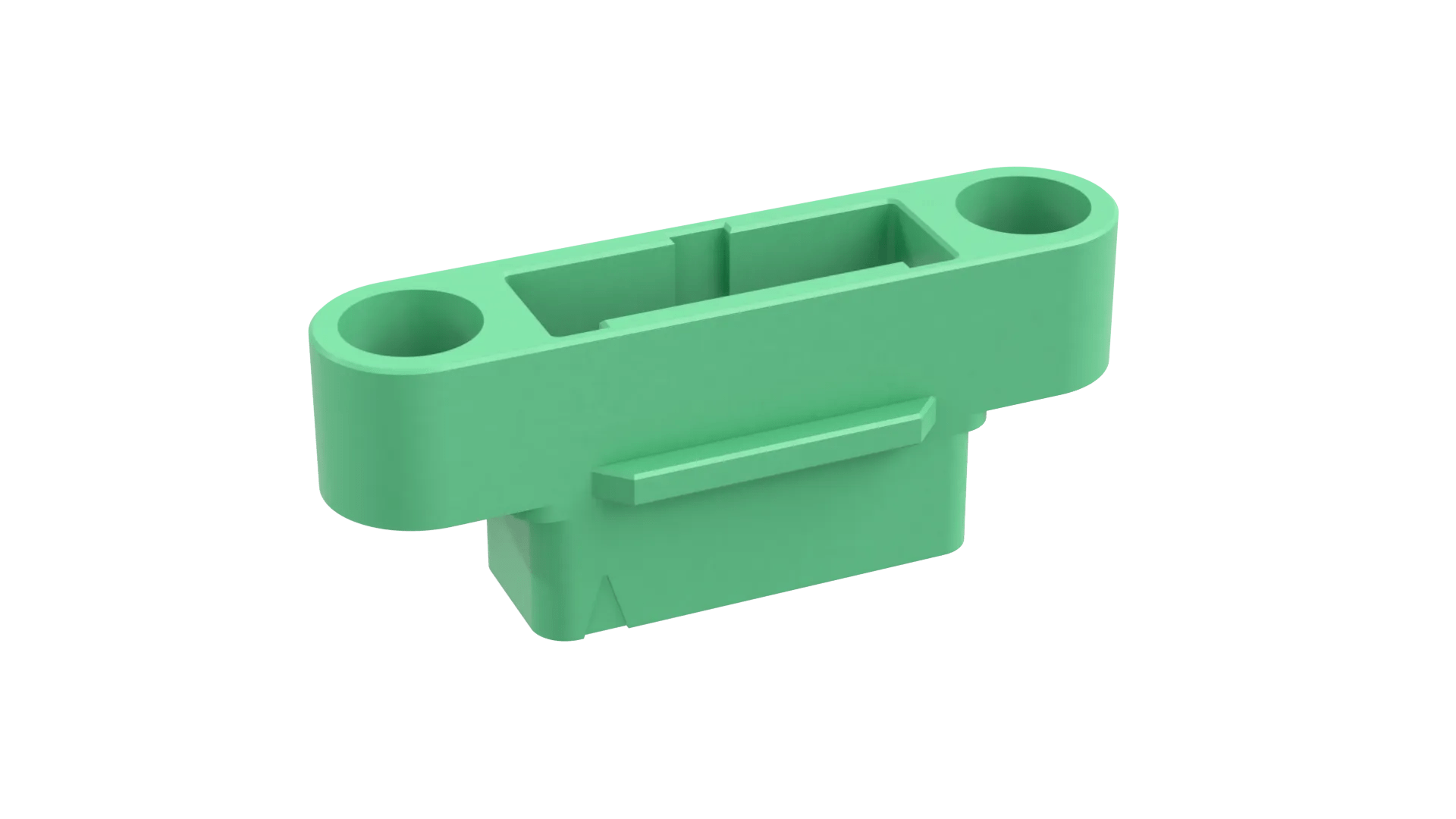

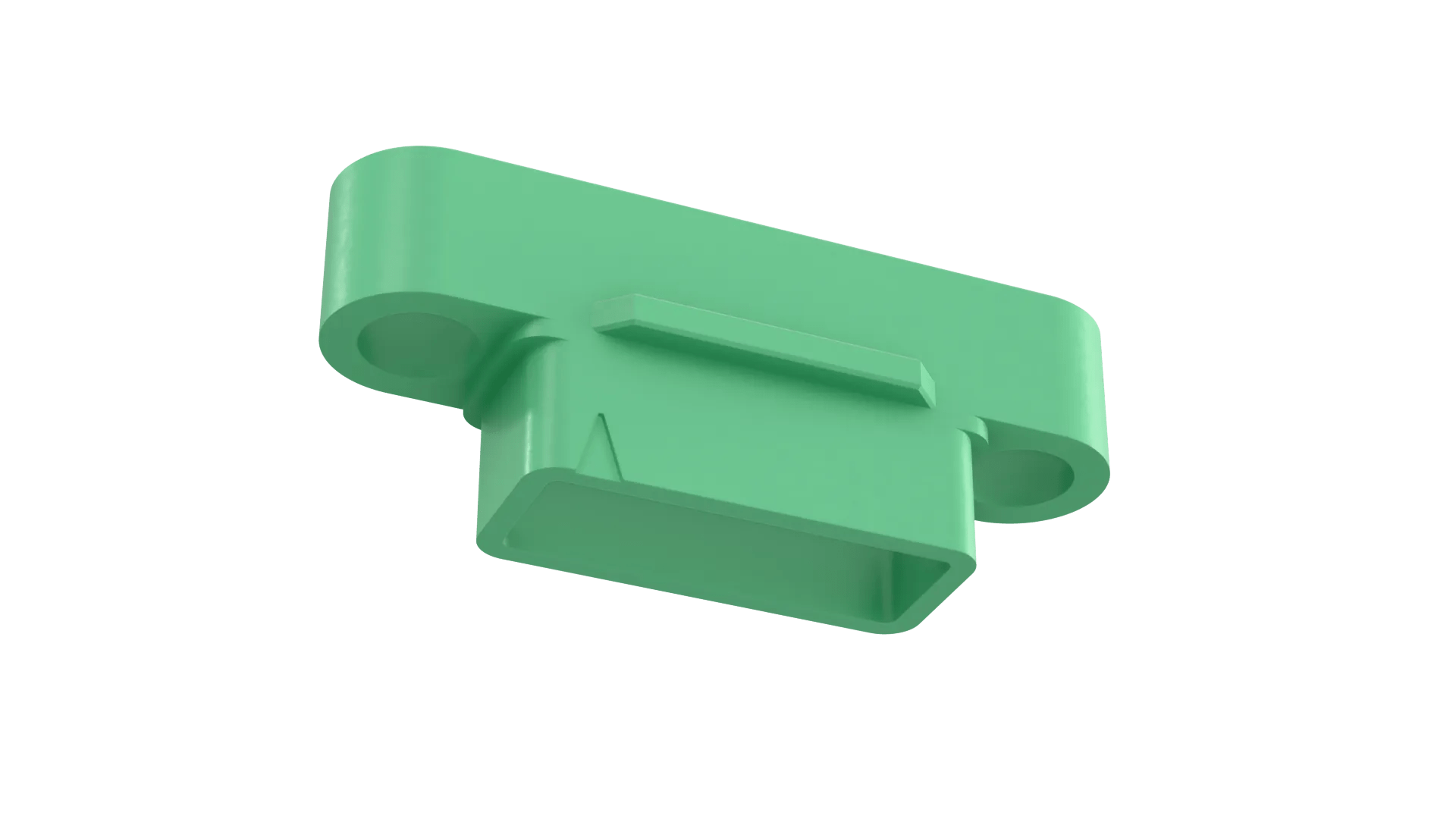

8+8 Pos. Male DIL Cable Housing, no Screw-Lok
1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok
In stock Check availability
8 similar products View products
Traceparts account required
Product Description
- Male Double Row Crimp Connector Housing without screw fixings – 16 (8+8) contacts. Compatible with metal backshell for cable (G125-96416F1) for reverse fix mating requirements.
- Use with crimp contacts G125-1010005 (for 26 AWG), G125-1020005 (for 28-32 AWG), or choose from the pre-wired contacts G125-MW series.
- For complete pin numbering or pin out information, see Component Specification C125XX.
Traceparts account required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
1.25mm (0.049")
Contact Gender:
Male/Plug
Connector Orientation:
Straight
Connection Type:
Cable (Crimp)
Mating Pin Size:
Ø0.4mm
Current Rating:
2.8A max individual contact, 2A max simultaneous (25°C)
Operating Temperature:
-65°C to +150°C
Style of Jackscrews:
None fitted
Polarising Features:
Yes
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
2
Number of Signal Contacts:
16
Materials
Housing Material:
Polyamide (Nylon) 4T
Housing Colour:
Green
Housing Material UL Rating:
UL94V-0
Packaging Style:
Bulk/Loose
Dimensions
Individual Part Weight:
0.537g
Overall Dimensions (L x W x D) in mm:
21.45 x 6.50 x 8.40
Mating Profiles:
Frequently Asked Questions Ask a Question
Does the female crimp contact G125-0010005 (26 AWG) mate with male contact G125-1020005 (28-32 AWG)?
Yes, you can mate together the two different cable size contacts. Both male contacts and both female contacts have the same front half of the contact for mating compatibility. It is only the bore at the rear of the contact, where the wire is inserted, that is different for the 26 AWG and 28-32 AWG types. So both female contacts G125-0010005 and G125-002005 mate with both male contacts G125-1010005 and G125-1020005.
