0.80mm (0.031") Pitch PCB Connector - Flecto

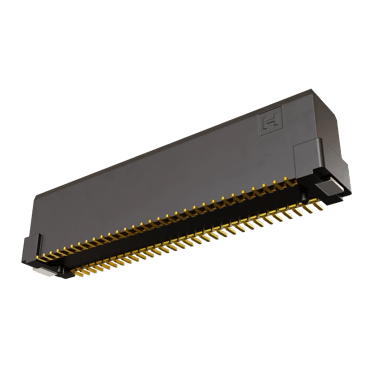

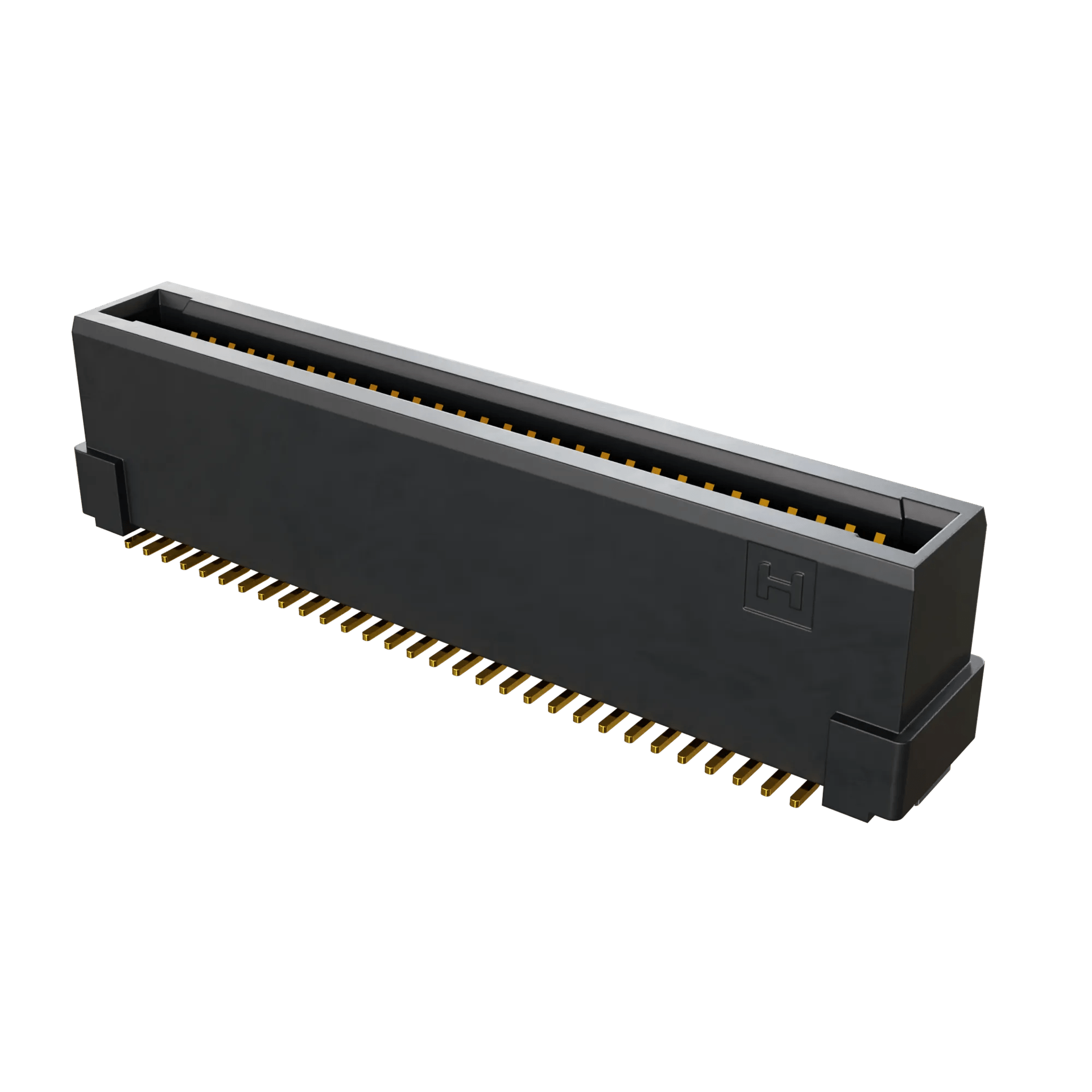

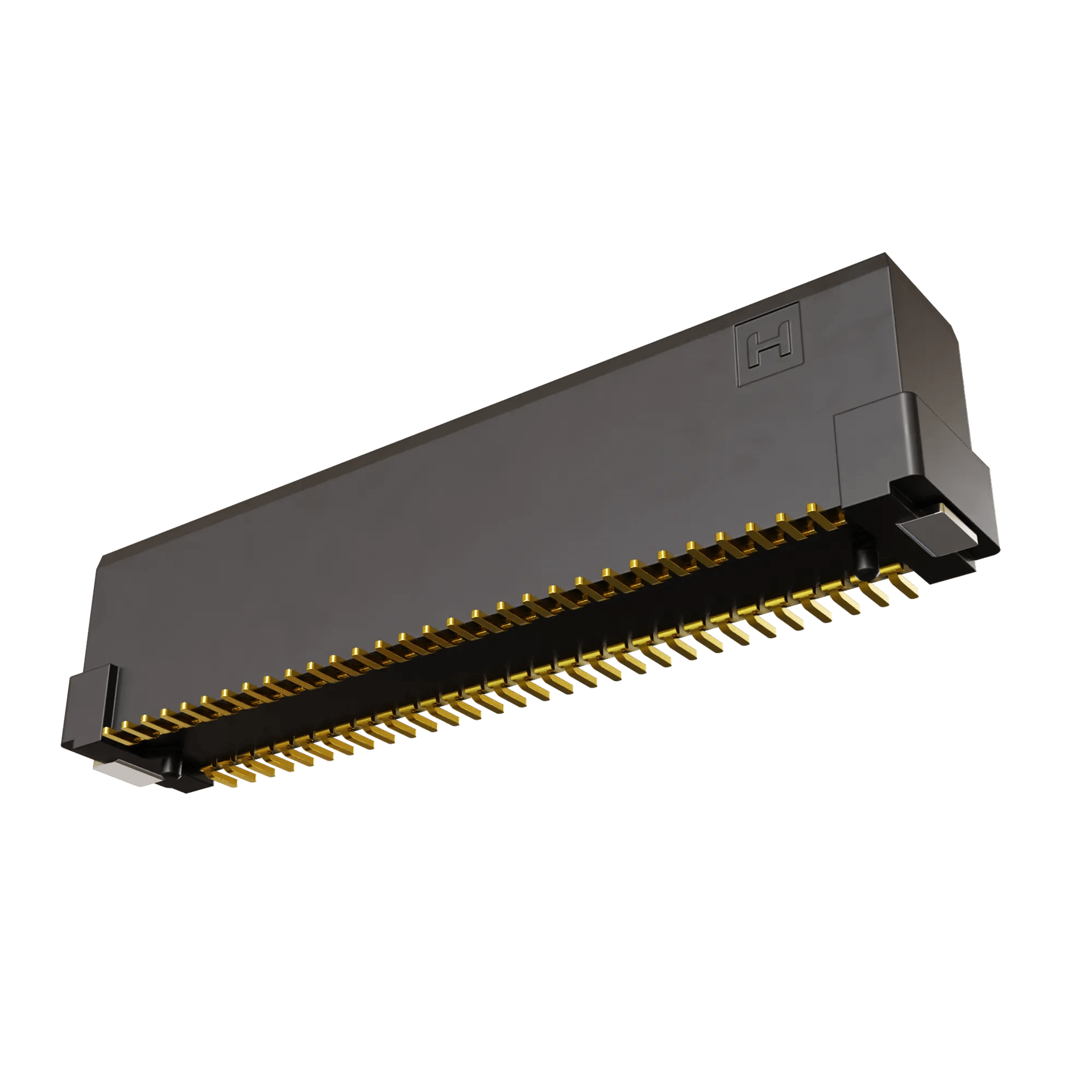

Double Row vertical board-to-board, surface mount receptacle connector, 6.85mm high - 60 contacts (30+30). Location pegs, surface mount hold-down retaining tabs for additional solder strength.
High-speed connection with a data rate up to 2.5GHz, 5Gb/s. Compatible with flexible male connectors that accommodate either ±0.5mm or ±0.8mm of movementin X & Y axes, ±0.5mm in Z axis.
Gold finish on contact area and termination, tin finish on solder hold-down tab. Packaged in Tape & Reel with pick & place tape.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Number of Rows:
2
Connector Orientation:
Vertical
Country of Origin:
TW
Side Stackable:
No
Number of Signal Contacts:
60
Operating Temperature:
-40°C to +105°C
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating:
0.5A max per contact
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarised:
No
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
LCP
Base Material of Contact:
Phosphor Bronze
Flammability Rating:
UL94V-0
Packaging Style:
Tape and Reel
Finish / Plating on Termination:
Gold
Housing Colour:
Black
Dimensions
Contact Pitch:
0.80mm (0.031")
Weight:
0.98g
Dimensions:
28.30 x 5.50 x 7.40
Height of Connector above PCB:
6.85mm
Downloads
Technical Drawing / Datasheet - F30-10XXXX45R.pdf
C057XX Component Specification - FLECTO Floating Connectors (0.50mm + 0.635mm + 0.80mm pitch)
Product Training Module - FLECTO Floating Connectors
Product Datasheet - Flecto (BBi)
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement - includes all material legislations
Material composition for F30-100XXX45R series
RoHS - F30-10006045R
