Home > D2840-42
Active

D2840-42

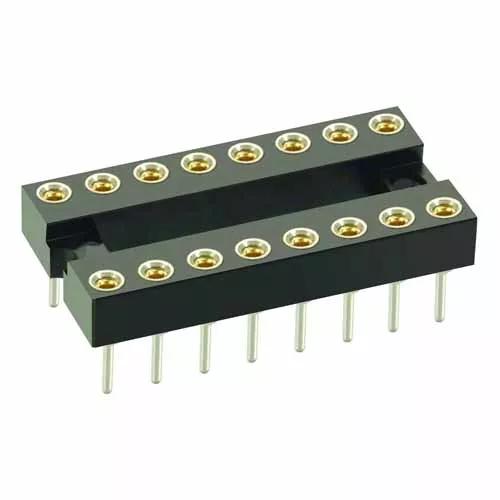

20+20 Pos. Female DIL Vertical Throughboard IC Socket

Sockets - 2.54mm Pitch IC Dual Row Connector

  • PC Tail IC Socket Assembly – 40 x contacts in a dual row format. Gold finish on contact area, Tin finish on termination.
  • 15.24mm (0.6″) spacing between rows, and 2.54mm (0.1″) contact pitch on each row.
  • Suitable for a Ø0.40-0.56mm mating pin.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.5mm

Current Rating:

1A max per contact

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

Yes

Side Stackable:

Yes

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

40

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper contact clip, Brass shell

Housing Material:

PCT

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

3.213g

Overall Dimensions (L x W x D) in mm:

50.80 x 17.64 x 7.40

Height of Connector above PCB:

4.20mm

Length of Throughboard Tail:

3.20mm

Availability

1,305 in stock

Info Circle

Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 1178
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 67
Distributor Avnet Abacus
Location Europe
Quantity (Updated Daily) 40
Distributor TTI Europe
Location Europe
Quantity (Updated Daily) 20
