D2822-42

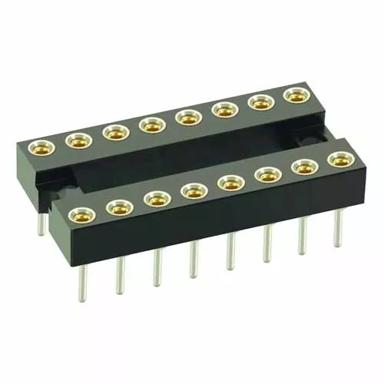

11+11 Pos. Female DIL Vertical Throughboard IC Socket

Sockets - 2.54mm Pitch IC Dual Row Connector

  • PC Tail IC Socket Assembly – 22 x contacts in a dual row format. Gold finish on contact area, Tin finish on termination.
  • 10.16mm (0.4″) spacing between rows, and 2.54mm (0.1″) contact pitch on each row.
  • Suitable for a Ø0.40-0.56mm mating pin.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.5mm

Current Rating:

1A max per contact

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

Yes

Side Stackable:

Yes

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

22

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper contact clip, Brass shell

Housing Material:

PCT

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

1.703g

Overall Dimensions (L x W x D) in mm:

27.80 x 12.60 x 7.40

Height of Connector above PCB:

4.20mm

Length of Throughboard Tail:

3.20mm

Availability

1,398 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 1385
Distributor Farnell
Location Europe
Quantity (Updated Daily) 8
Distributor Genalog
Location Europe
Quantity (Updated Daily) 5
