D0806-42

3+3 Pos. Female DIL Vertical Wire Wrap IC Socket

Sockets - 2.54mm Pitch IC Dual Row Connector

Order Sample

Add to Favorites

In stock Check availability

4 similar products View products

Traceparts account required

Product Description

IC 3-Level Wire Wrap Socket Assembly – 6 x contacts in a dual row format. Gold finish on contact area, Tin finish on termination.
7.62mm (0.3″) spacing between rows, and 2.54mm (0.1″) contact pitch on each row.
Suitable for a Ø0.40-0.56mm mating pin.

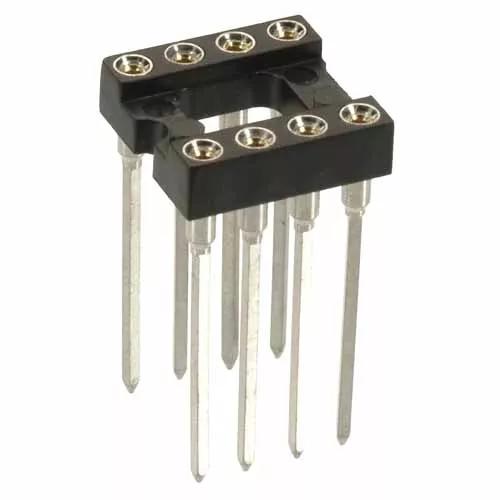

D0806-42 - 3+3 Pos. Female DIL Vertical Wire Wrap IC Socket

Representative image of product family

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with Exemption 6c

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.5mm

Current Rating:

1A per contact

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

End Stackable:

Yes

Side Stackable:

Yes

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper contact clip, Brass shell

Housing Material:

PCT

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Individual Part Weight:

0.767g

Overall Dimensions (L x W x D) in mm:

7.60 x 10.02 x 17.46

Height of Connector above PCB:

4.51mm

Length of Throughboard Tail:

12.95mm
