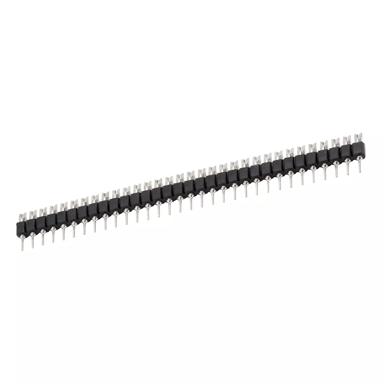

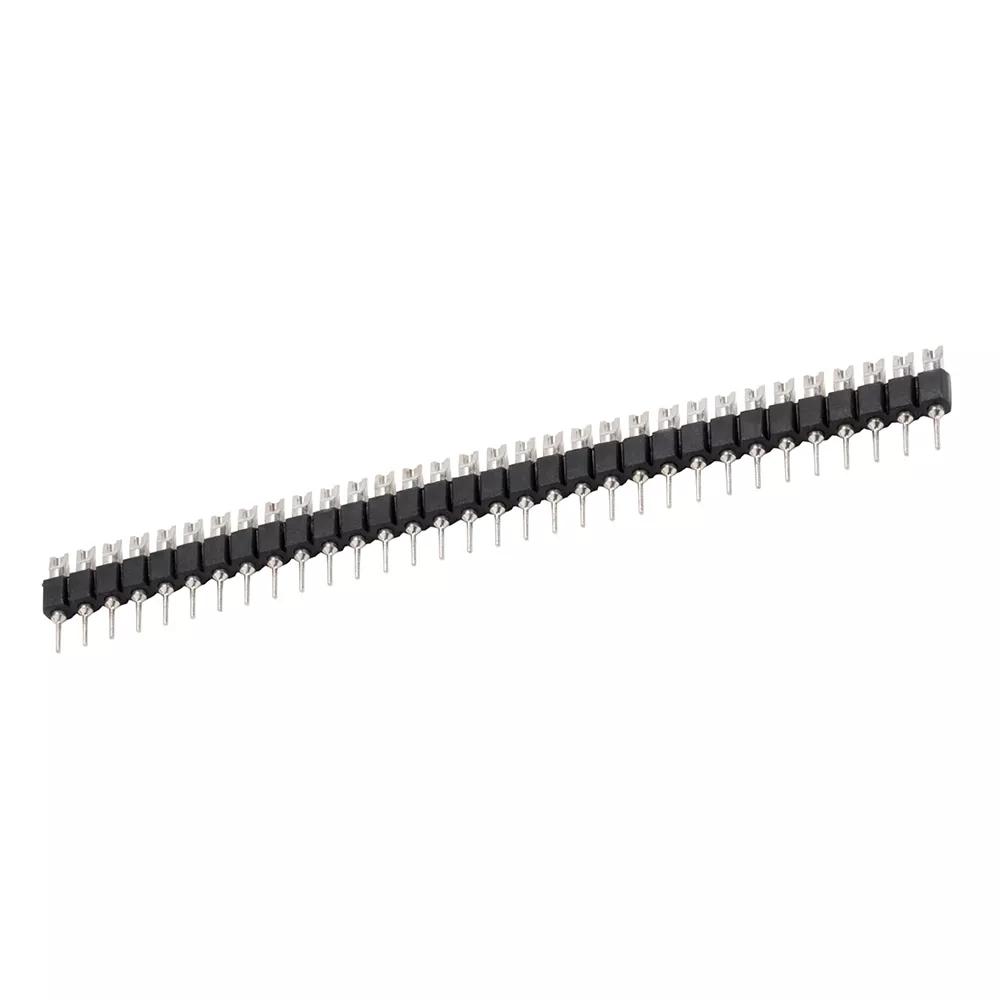

32 Pos. Solder Cup SIL Vertical Throughboard IC Strip

EZi

D01-9933246

32 Pos. Solder Cup SIL Vertical Throughboard IC Strip

Sockets - 2.54mm Pitch IC Modular Strip

  • Vertical Solder Cup Header Strip - 32 x contacts in a single row.

  • Tin finish on contact area and termination.

  • Can be cut down for other sizes.

View Technical Details

Out of Stock

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Technical Documentation

Environmental Compliance

Technical Details

Product Characteristics

  • End Stackable:

    No

  • Number of Rows:

    1

  • Connector Orientation:

    Vertical

  • Country of Origin:

    TW

  • Side Stackable:

    Yes

  • Number of Signal Contacts:

    32

  • Operating Temperature:

    -55°C to +125°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with Exemption 6c

  • Current Rating:

    1.5A max per contact at 25°C, 0.25A max at 85°C

  • Soldering Data:

    Max Solder Temperature: 260°C for 10 seconds

  • Cuttable:

    Yes

Materials

  • Finish / Plating on Contact Surface:

    100% Tin over Nickel

  • Housing Material:

    Polyamide (Nylon) 46

  • Base Material of Contact:

    Brass

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Bulk/Loose

  • Finish / Plating on Termination:

    100% Tin over Nickel

  • Housing Colour:

    Black

Dimensions

  • Contact Pitch:

    2.54mm (0.1")

  • Weight:

    3.779g

  • Dimensions:

    81.30 x 2.54 x 10.13

  • PC Tail Length:

    3.08mm

  • Height of Connector above PCB:

    7.05mm

Downloads

Technical Documentation

  • Technical Drawing / Datasheet - D01-993.pdf

  • C004XX Component Specification - 2.54mm pitch Round Pin IC Sockets and Headers

  • Outgassing data for Harwin products (plastics)

Environmental Compliance

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Environmental Legislation Statement

  • Material composition for D01-993 series

  • RoHS - D01-9933246
