D01-9922046

20 Pos. Male SIL Vertical Throughboard IC Strip

Sockets - 2.54mm Pitch IC Modular Strip

Order Sample

Add to Favorites

Loading… Check availability

3 similar products View products

Traceparts account required

Product Description

Vertical Through Connect Header Strip – 20 x contacts in a single row.
Tin finish on contact area and termination.
Can be cut down for other sizes.

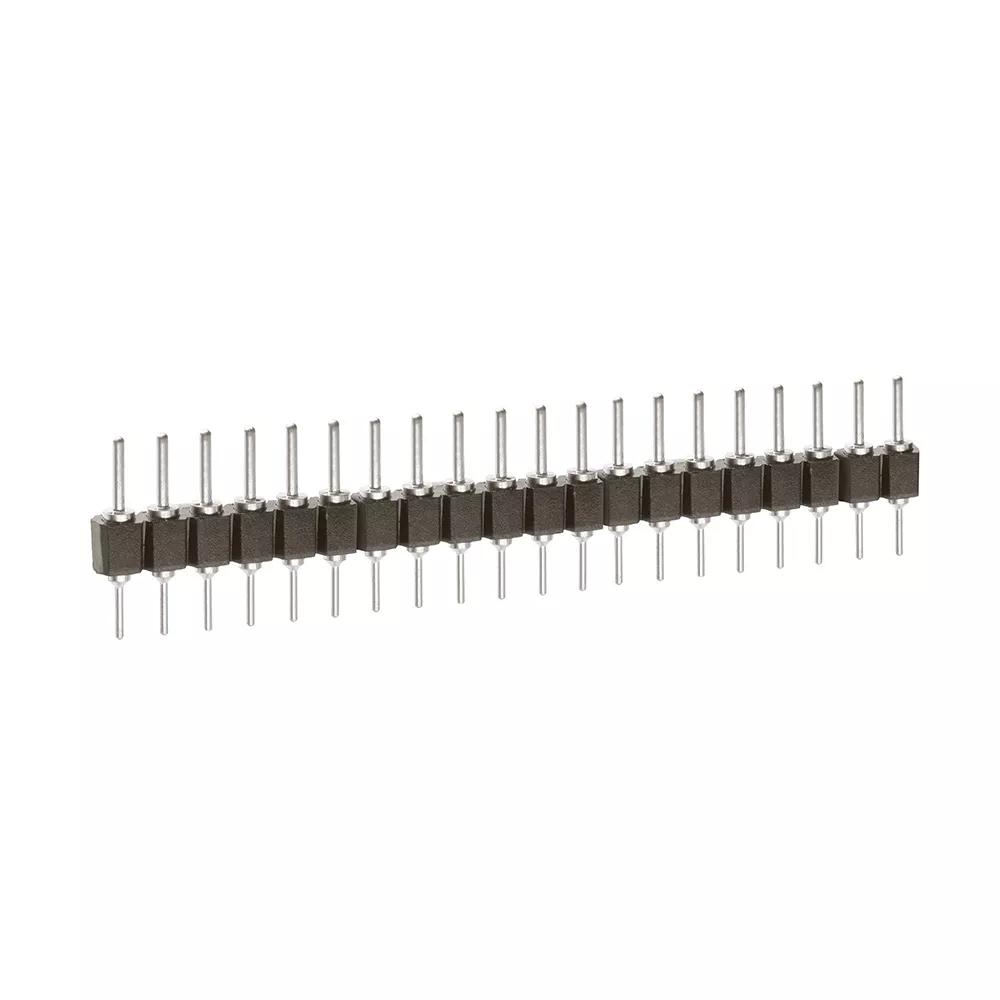

D01-9922046 - 20 Pos. Male SIL Vertical Throughboard IC Strip

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with Exemption 6c

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.69mm

Current Rating:

1.5A max per contact at 25°C, 0.25A max at 85°C

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

End Stackable:

Side Stackable:

Yes

Can be cut to another size:

Yes

Number of Rows:

Number of Signal Contacts:

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Brass

Housing Material:

Polyamide (Nylon) 46

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Individual Part Weight:

2.042g

Overall Dimensions (L x W x D) in mm:

50.90 x 2.54 x 11.73

Height of Connector above PCB:

8.65mm

Length of Throughboard Tail:

3.08mm
