D01-9902001

Female Vertical Throughboard Ø0.50mm Contact, 20 per carrier

Sockets - Individual Throughboard PCB Socket

Order Sample

Add to Favorites

906 in stock Check availability

3 similiar products View products

Samacsys account required

Download

No login is required

Product Description

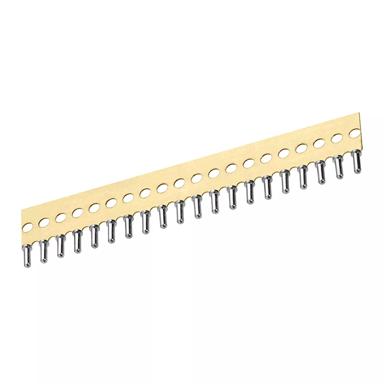

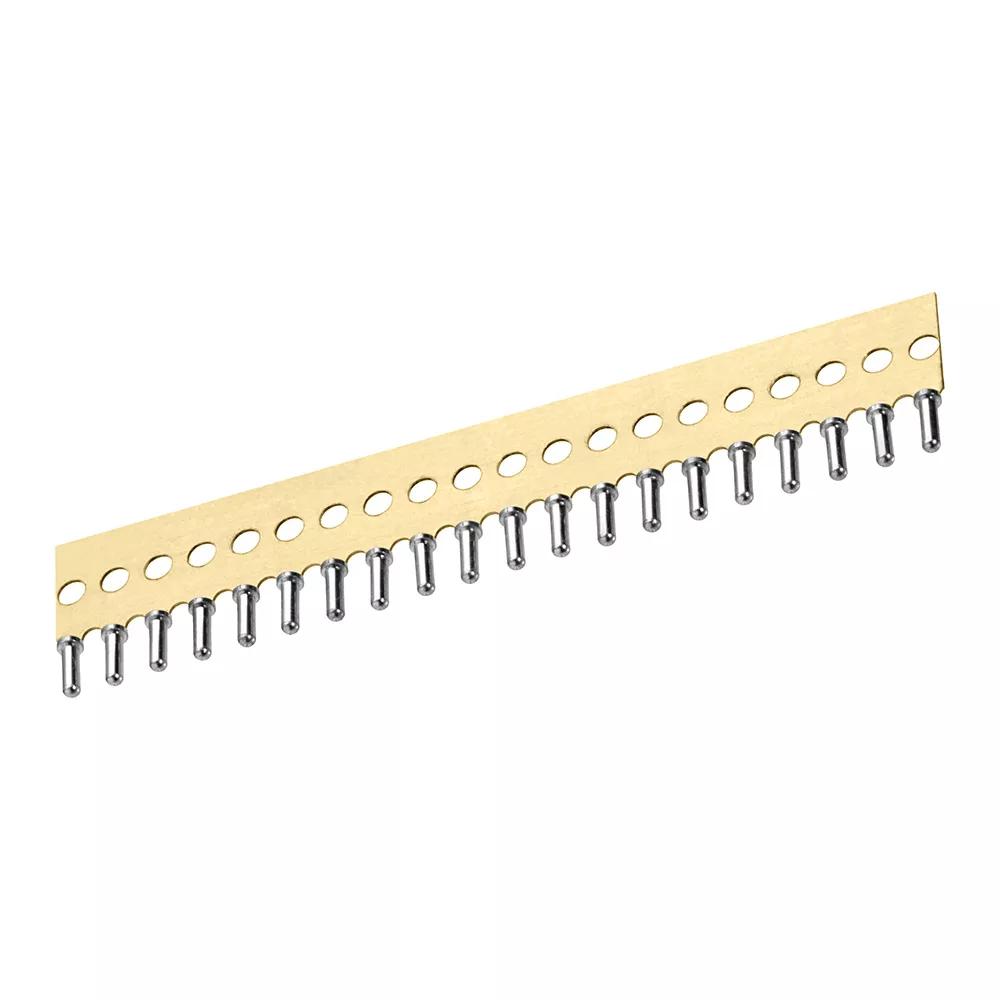

Strip of 20 Sub-Miniature H3153-01 sockets on a metal carrier comb.
Gold finish on contact area, Tin finish on termination. 2.54mm (0.1″) pitch on strip.
Sockets suitable for a Ø0.46-0.51mm mating pin.

D01-9902001 - Female Vertical Throughboard Ø0.50mm Contact, 20 per carrier

Samacsys account required

Download

No login is required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with Exemption 6c

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.5mm

Current Rating:

2A max at 25°C, 1.75A max at 85°C

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Can be cut to another size:

Yes

Number of Rows:

Number of Signal Contacts:

Entry Style:

Top Entry

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper contact clip, Brass shell

Packaging Style:

Tube

Individual Part Weight:

0.966g

Overall Dimensions (L x W x D) in mm:

50.06 max x 1.42 x 10.56

Height of Connector above PCB:

0.38mm

Length of Throughboard Tail:

3.18mm
