Female Vertical Throughboard Ø0.50mm Contact, 32 per carrier
Sockets - Individual Throughboard PCB Socket

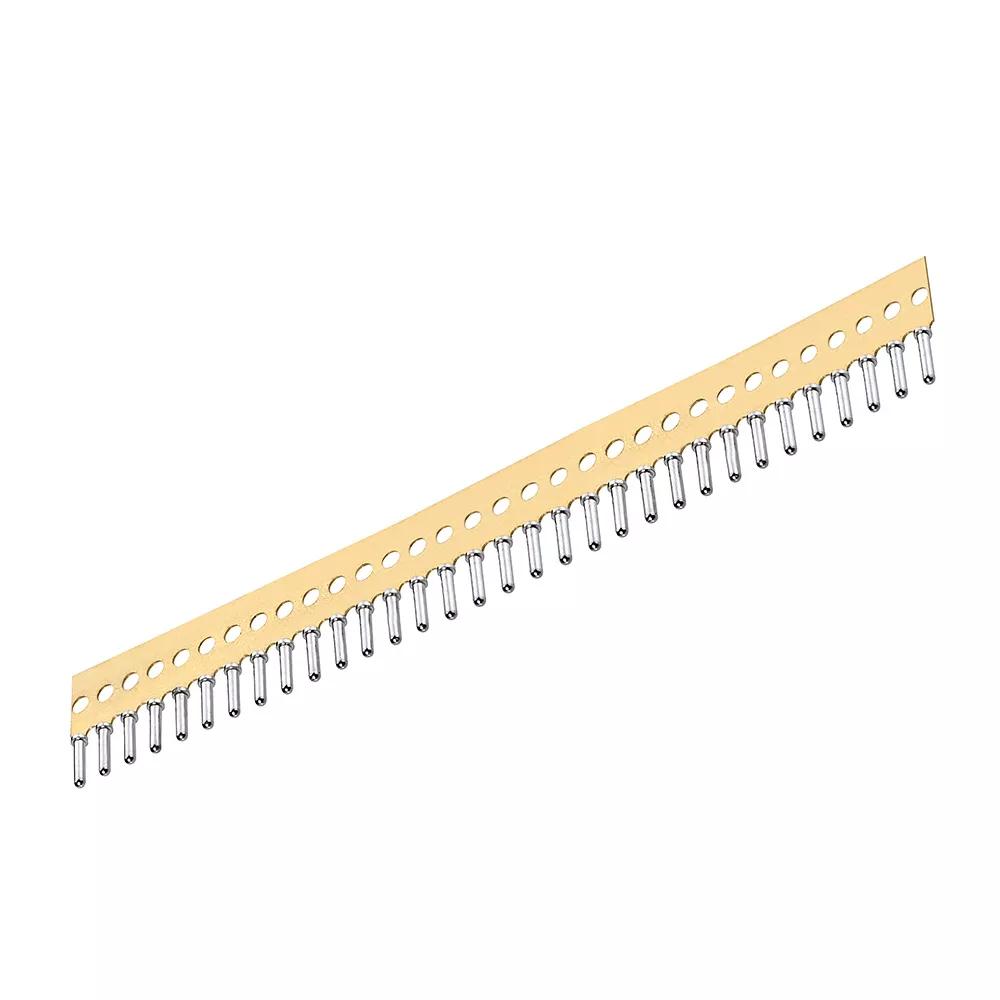

- Strip of 32 Sub-Miniature H3191-01 Sockets on a metal carrier comb.
- Gold finish on contact area, Tin finish on termination. 2.54mm (0.1″) pitch on strip.
- Sockets suitable for a Ø0.46-0.51mm mating pin.
EU RoHS Status:
PC Tail / Throughboard
Mating Pin Size:
2A max at 25°C, 1.75A max at 85°C
-55°C to +125°C
Max Solder Temperature: 260°C for 10 seconds
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Base Material of Contact:
Beryllium Copper contact clip, Brass shell
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
80.54 max x 1.42 x 11.85
Height of Connector above PCB:
Length of Throughboard Tail:
Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.
* Please request minimum quantities, lead times and pricing from an authorized distributor.
