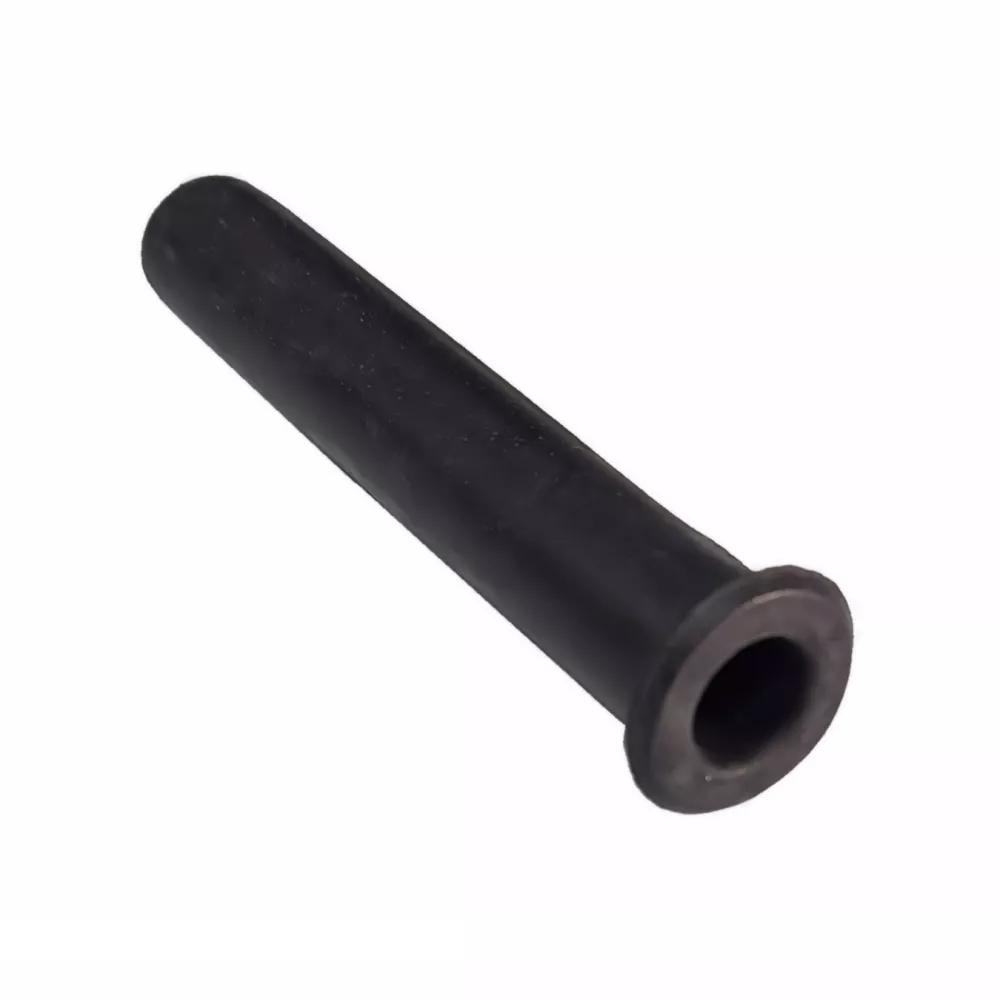

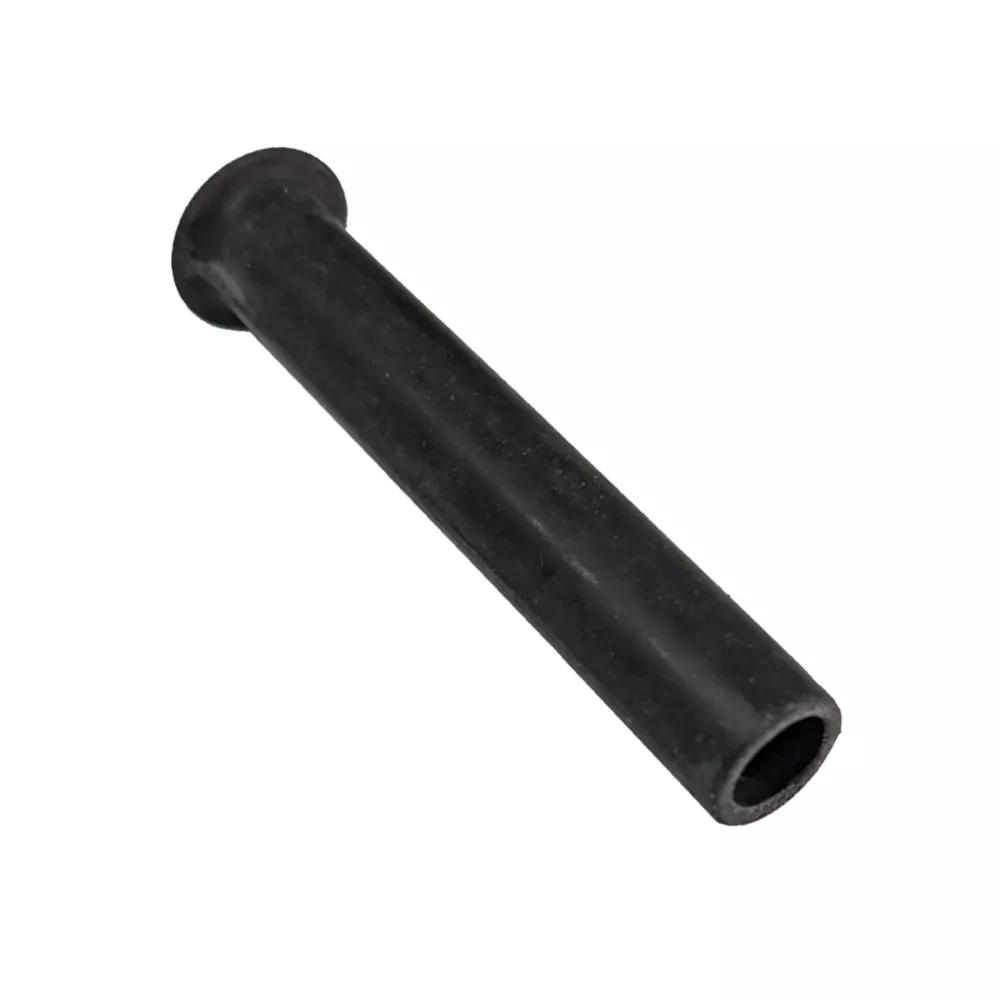

14S Circular Conn. Rubber Bushing

Circular Connector equivalent to MIL-DTL-5015 (MIL-C-5015)

For 14S shell sizes, to give IP67 sealing.
Compatible with MIL-DTL-5015 (MIL-C-5015) Circular Connectors and RoHS compliant equivalent.

Availability

C90-3420-6 - 14S Circular Conn. Rubber Bushing

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Connector Orientation:

Straight

Mating Pin Size:

Ø1.6mm

Operating Temperature:

-55°C to +125°C

Polarising Features:

End Stackable:

Side Stackable:

Can be cut to another size:

Packaging Style:

Single Pack

Individual Part Weight:

4.71g

Overall Dimensions (L x W x D) in mm:

66.68 x Ø15.60

Availability

186 in stock

Limited availability or made-to-order

Distributor Location Quantity (Updated Daily)

Distributor Mouser Electronics Inc

Location Global

Quantity (Updated Daily) 186
